992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Clutch and Belt Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

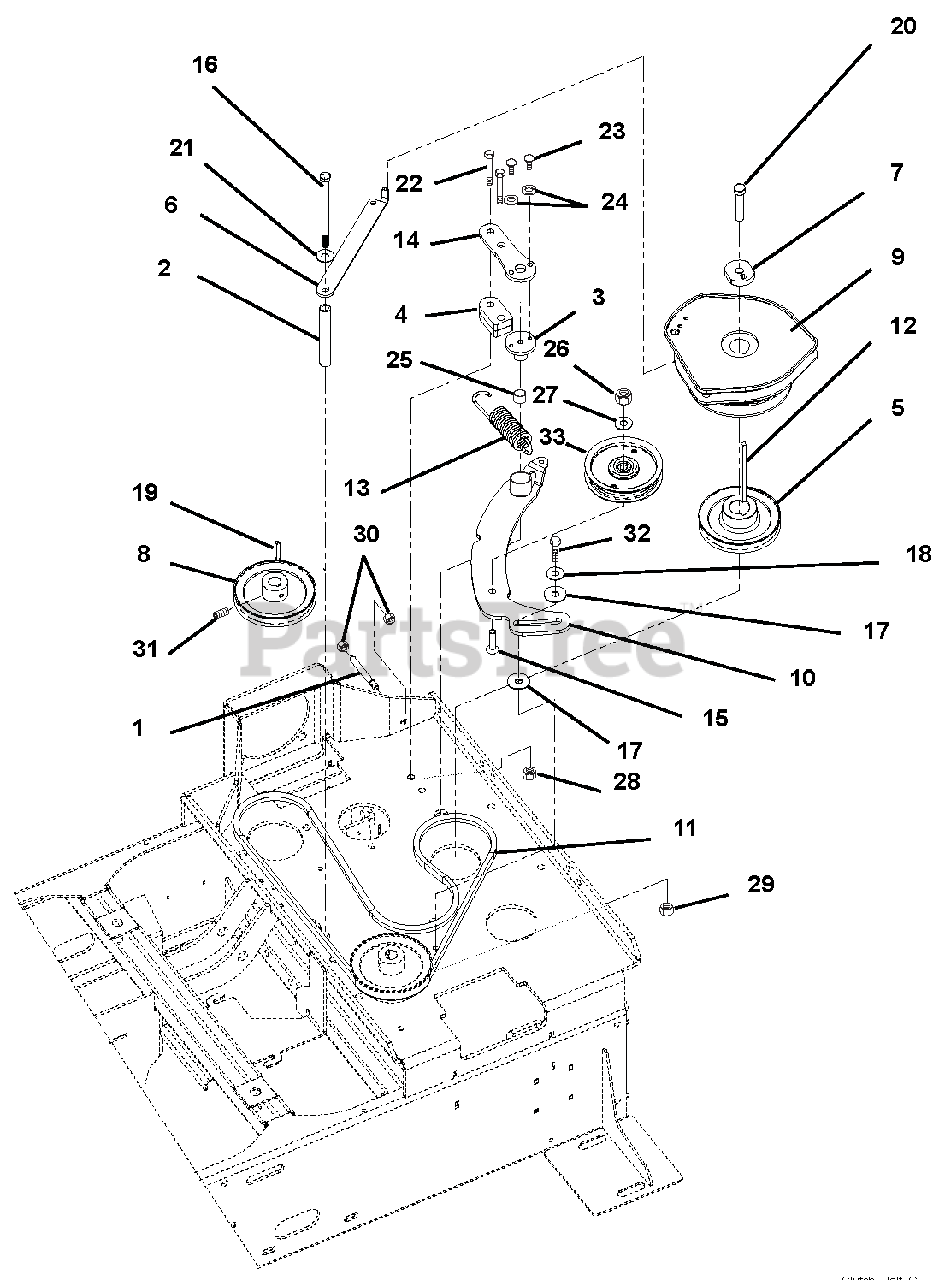

Clutch and Belt Parts Diagram

  • Title

1

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 03821751

TUBE, RD .625 X .120 X 4.50

$58.99

$

In Stock, only 1 left!

0

3

Gravely 03791600

PIN, TENSIONER PIVOT

$80.99

$

Usually ships in 4-12 days

0

4

Gravely 03791351

PLATE, SPACER - PUMP TESIONER

$26.99

$

In Stock, only 1 left!

0

5

Gravely 00180641

PULLEY, V-BELT 5.00X1.13 W/KEY

$93.99

$

In Stock, only 2 left!

0

6

Gravely 03821651

PLATE, CLUTCH STOP

$46.99

$

Usually ships in 4-12 days

0

7

Gravely 03821851

WASHER, CLUTCH UNIVERSAL

$29.99

$

Usually ships in 4-12 days

0

8

Gravely 00180836

PULLEY, V-BELT 4.78X17MM W/KEY

$58.99

$

In Stock, only 1 left!

0

9

Gravely 00180923

CLUTCH, ELECT-OGURA, GT3.5

$455.99

$

In Stock, only 1 left!

0

10

Gravely 03791151

WLDT, Z PUMP BELT IDLER ARM

$131.99

$

Usually ships in 4-12 days

0

11

Gravely 00181727

BELT, HA 64.2 EL AMD
(Superseded to 04557400)

Note: (Hydraulic Pump)

$53.99

$

In Stock, Qty 11

0

12

Gravely 00180962

KEY, .250 X .250 X 4.62 SQ

$

$

Not available

13

Gravely 00180999

SPRING, EXT 1.19X.162X4.25 Y

$

$

Not available

14

Gravely 03791251

PLATE, PUMP TENSIONER TOP

$26.99

$

In Stock, only 1 left!

0

15

Gravely 05901332

BOLT, 3/8-16X1.50 FLAT SOC Y

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 05982000

@BLT-HEX .38-16X5.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 00180961

WASHER, .400X1.27X.062 NYLON

$2.49

$

In Stock, only 3 left!

0

18

Gravely 06400902

WASHER, .406X1.00X.060 FLAT Y

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 00966053

KEY, M5 X M5 X M36 RD

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 05900040

BLT-HEX .44-20X2.25 G5 YZ EP80

$7.49

$

Usually ships in 4-12 days

0

21

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00960050

BOLT, 3/8-16X2.00 HEX 5 Y
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

24

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

25

Gravely 00105546

BRG, SLV .753X.878X.750

$7.49

$

In Stock, Qty 13

0

26

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 00164038

WASHER, .390X.750X.080 FLAT Y

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

29

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 00967343

SET SCREW, 5/16-18X.625 SQ CUP

$1.99

$

In Stock, only 1 left!

0

32

Gravely 05901331

BOLT, 3/8 X.500X5/16-18 SLD Y
(Superseded to 07070114)

$6.49

$

Usually ships in 4-12 days

0

33

Gravely 07336200

PULLEY, FLAT 4.50X.669 W/BRG

$46.99

$

Usually ships in 4-12 days

0
