992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Deck Mount Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

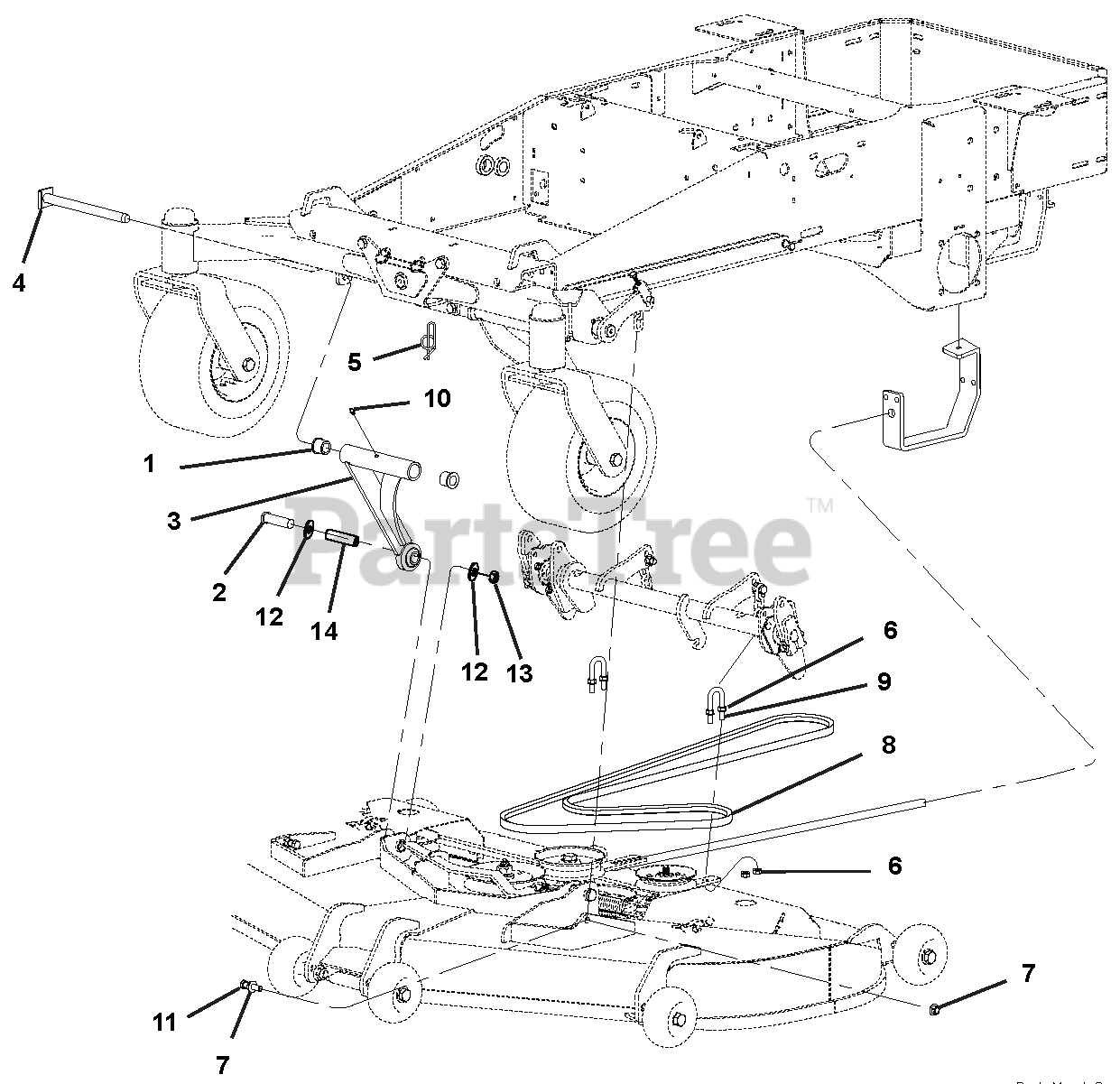

Deck Mount Parts Diagram

  • Title

1

Gravely 00150079

BRG, FLG .750X1.13X1.00

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

3

Gravely 03814051

WLDT, DECK PULL 11.5

$200.99

$

Usually ships in 4-12 days

0

4

Gravely 00180224

PIN, PVT .750X9.75X9.20 XDRL U

$

$

Not available

5

Gravely 00967357

RING, RUE .750 X .080 X 2.081

$

$

Not available

6

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06530004

NUT-FLANGED WHIZ .438-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 00181715

BELT, HB 114.9 EL AMD

Note: (Clutch to Deck)

$87.99

$

In Stock, Qty 20+

0

9

Gravely 00181485

U-BOLT, RD 1.00X3.00X3/8-16 Y

$11.99

$

In Stock, only 3 left!

0

10

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

11

Gravely 05982100

@BLT-HEX .44-14X1.75 GR5 YWZC
(Superseded to 05901828)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

14

Gravely 03856600

TUBE, RD .750 X.125W X 2.469

$19.99

$

Usually ships in 4-12 days

0
