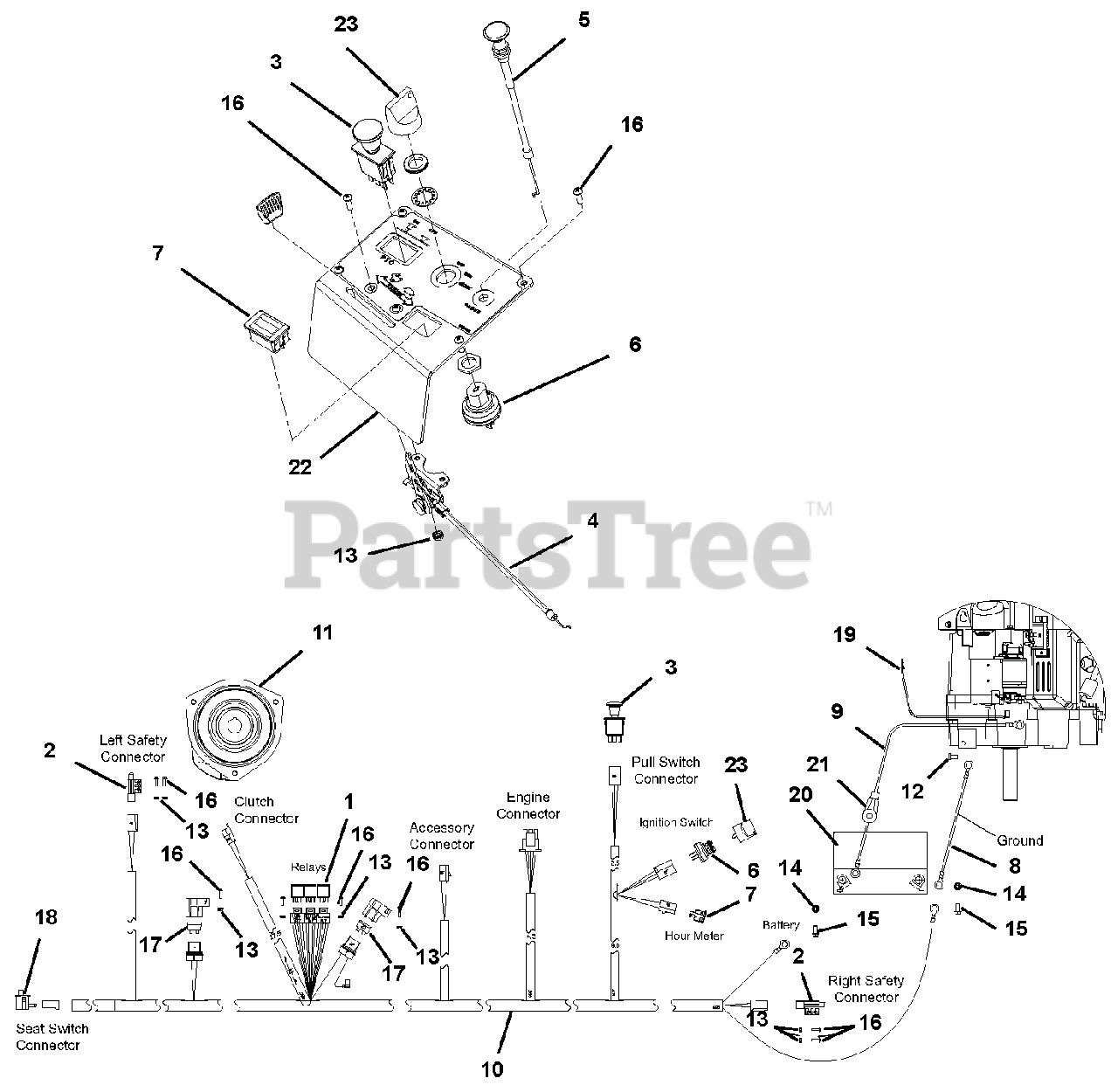

992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 00102770

RELAY, ISO MINI ELEC.

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

3

Gravely 00136574

SWITCH, PTO ENGAGEMENT

Note: (Serials 101 - 2499)

$29.99

$

In Stock, only 4 left!

0

3

Gravely 04311800

SWITCH, CLUTCH (WITH GRAPHIC)

Note: (Serials 2500 and up)

$46.99

$

In Stock, only 3 left!

0

4

Gravely 03858700

THROTLE CABLE, 40" WITH DETENT

Note: (Serials 101 - 2499)

$65.99

$

In Stock, only 2 left!

0

4

Gravely 06900412

CABLE, PRO-CONTROL

Note: (Serials 2500 and up)

$66.99

$

In Stock, Qty 7

0

5

Gravely 00180273

CABLE, CHOKE 48.0"

Note: (Serials 101 - 2499)

$56.99

$

In Stock, only 2 left!

0

5

Gravely 06900411

CABLE, PRO-CONTROL THROTTLE

Note: (Serials 2500 and up)

$55.99

$

In Stock, only 3 left!

0

5

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: NOT SHOWN

$12.99

$

In Stock, Qty 9

0

6

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

Note: (Includes item 23)

$47.99

$

In Stock, Qty 20+

0

7

Gravely 00192296

METER, HOUR - LCD ALT. (ENM)

Note: (Serials 101 - 2499)

$70.99

$

In Stock, only 1 left!

0

7

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

Note: (Serials 2500 and up)

$25.99

$

In Stock, Qty 14

0

8

Gravely AA201019

CABLE, BATTERY - 25" GROUND

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

10

Gravely 03798600

WIRE HARNESS

$

$

Not available

11

Gravely 00180923

CLUTCH, ELECT-OGURA, GT3.5

$455.99

$

In Stock, only 1 left!

0

12

Gravely 00961281

BOLT, M8X1.25X14 HEX 8.8 Y
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00130923

NUT, 10-24 KEPS Y
(Superseded to 06500704)

Note: (Serials 101 - 2499)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (Serials 2500 and up)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06006127

SCR-HEX-FLNG .25-20 X .625 G2

$

$

Not available

16

Gravely 00967340

SCREW, 10-24X.625 PAN PHL MACY

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

Note: (Serials 2500 and up)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (Serials 2500 and up)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00191262

FUSE, 20 AMP BLADE S/O

$15.99

$

In Stock, only 2 left!

0

18

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 18

0

19

Gravely 03286700

LEAD - STARTER SOLENOID

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 00181779

BATTERY, 12V-U1-CCA400MIN

$

$

Not available

21

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

22

Gravely 03816551

PLATE, CONTROL PANEL

Note: (Serials 101 - 2499)

$

$

Not available

22

Gravely 03961651

PANEL, CONTROL

Note: (Serials 2500 and up)

$52.99

$

Usually ships in 4-12 days

0

23

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+
