992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Engine and Exhaust Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

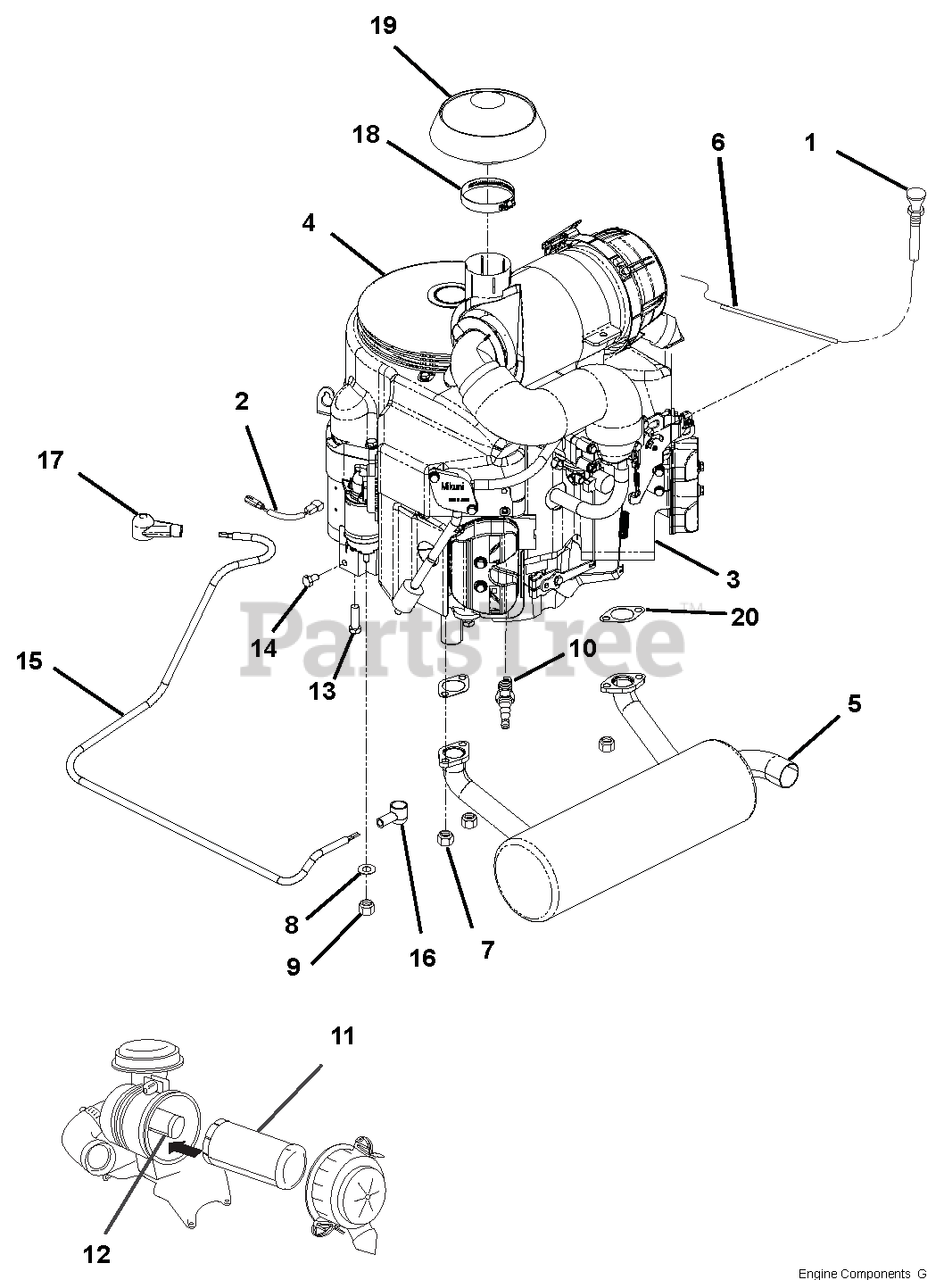

Engine and Exhaust Parts Diagram

  • Title

1

Gravely 06900411

CABLE, PRO-CONTROL THROTTLE

Note: (Serials 101 - 2499)

$55.99

$

In Stock, only 3 left!

0

1

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: NOT SHOWN

$12.99

$

In Stock, Qty 9

0

2

Gravely 03286700

LEAD - STARTER SOLENOID

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

4

Gravely 08200327

ENGINE, KAWASAKI FX751 (27HP)

$

$

Not available

4

Gravely 08200328

ENGINE, KAWASAKI FX850 (31HP)

$

$

Not available

5

Gravely 01057000

MUFFLER - 31HP KAWASAKI VERT.

$277.99

$

Usually ships in 4-12 days

0

6

Gravely 03798600

WIRE HARNESS

Note: (see page 26-27)

$

$

Not available

7

Gravely 21549901

NUT, EXHAUST MAN. SUBARU EH

$

$

Not available

8

Gravely 06318200

WSHR-LK M8 YWZC

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 00961553

NUT, M8X1.25 HEX GR8.8 Y
(Superseded to 06538600)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0

11

Gravely 21545400

ELEMENT-OUTER - KAWASAKI

$50.99

$

In Stock, Qty 20+

0

12

Gravely 21545300

ELEMENT-INNER - KAWASAKI

$56.99

$

In Stock, only 2 left!

0

13

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.99

$

In Stock, Qty 19

0

14

Gravely 00961281

BOLT, M8X1.25X14 HEX 8.8 Y
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

16

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 17

0

17

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

18

Gravely 06900339

CLAMP, HOSE 2.75 DIA WORM

Note: (992222, 209)

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: (992220, 210)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 03820900

RAIN CAP, AIR CLEANER (2.5")

Note: (992222)

$79.99

$

In Stock, only 2 left!

0

19

Gravely 04088900

CAP, KAW 11065-7025

Note: (992220, 221)

$60.99

$

Usually ships in 4-12 days

0

20

Gravely 00191627

GASKET, MUFFLER S/O

$8.49

$

In Stock, Qty 14

0
