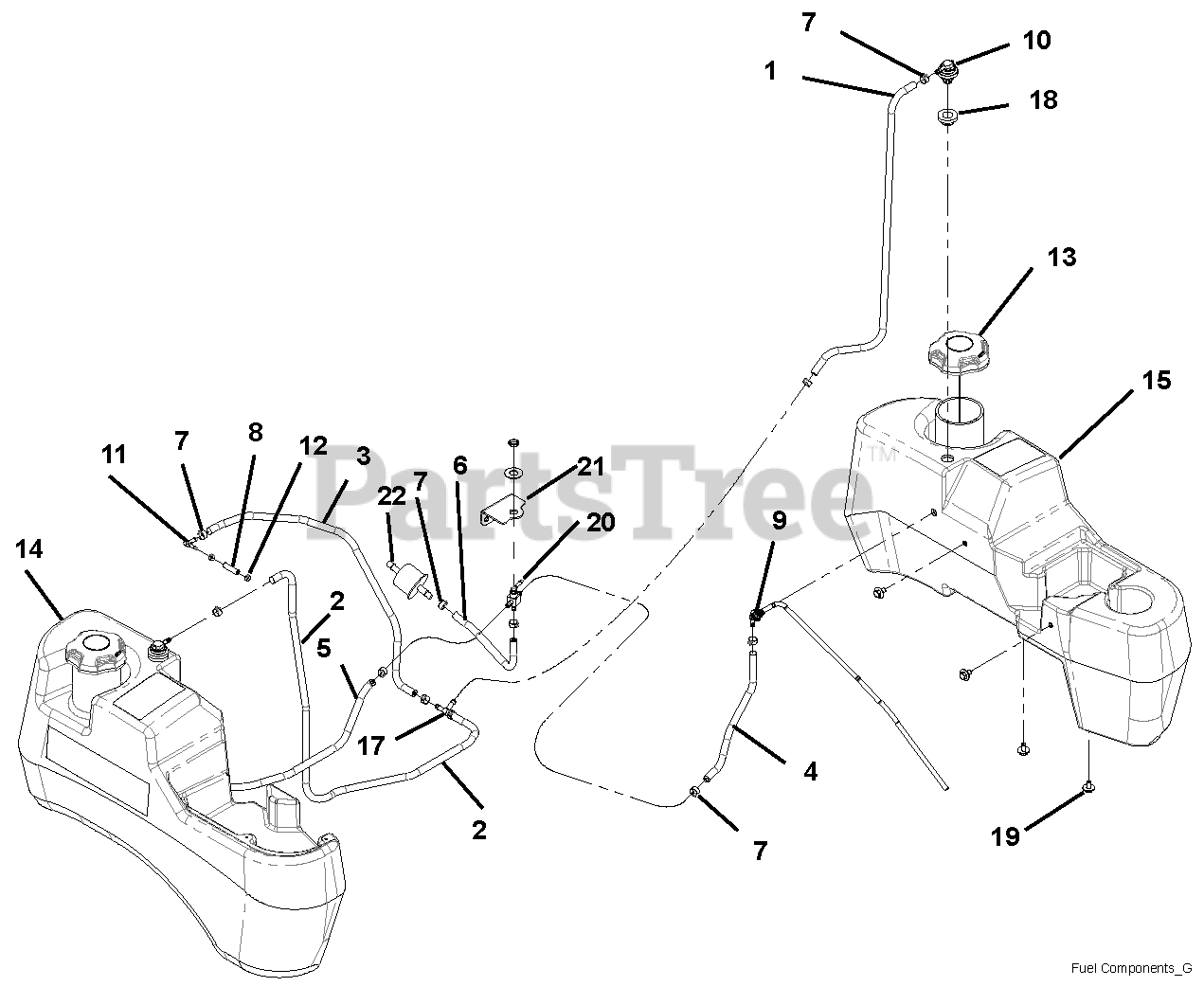

992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Fuel Tanks, 2500-Up Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

Fuel Tanks, 2500-Up Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03900200

ASS'Y, LARGE TANK FUEL PICK-UP
(Superseded to 04320800)

$35.99

$

In Stock, Qty 12

0

10

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, only 4 left!

0

11

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

13

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

$35.99

$

In Stock, Qty 20+

0

14

Gravely 04245500

TANK, RH LARGE GRAVELY FUEL

$224.99

$

Usually ships in 4-12 days

0

15

Gravely 04245600

TANK, LH LARGE GRAVELY FUEL

$

$

Not available

16

Label, EPA Non-Compliant Tank

$

$

Not available

17

Gravely 04307000

TEE,1/4HS RUN X 1/4HS BRANCH

$

$

Not available

18

Gravely 05600439

GROMMET, REMOTE VENT
(Superseded to 04082700)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

20

Gravely 09233600

VALVE - FUEL
(Superseded to 09164400)

Note: (Nut and washer shown are included with valve)

$46.99

$

In Stock, only 2 left!

0

21

Gravely 04309151

BRKT, FUEL VALVE MNTG

$23.99

$

Usually ships in 4-12 days

0

22

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0
