992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Hydraulics Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

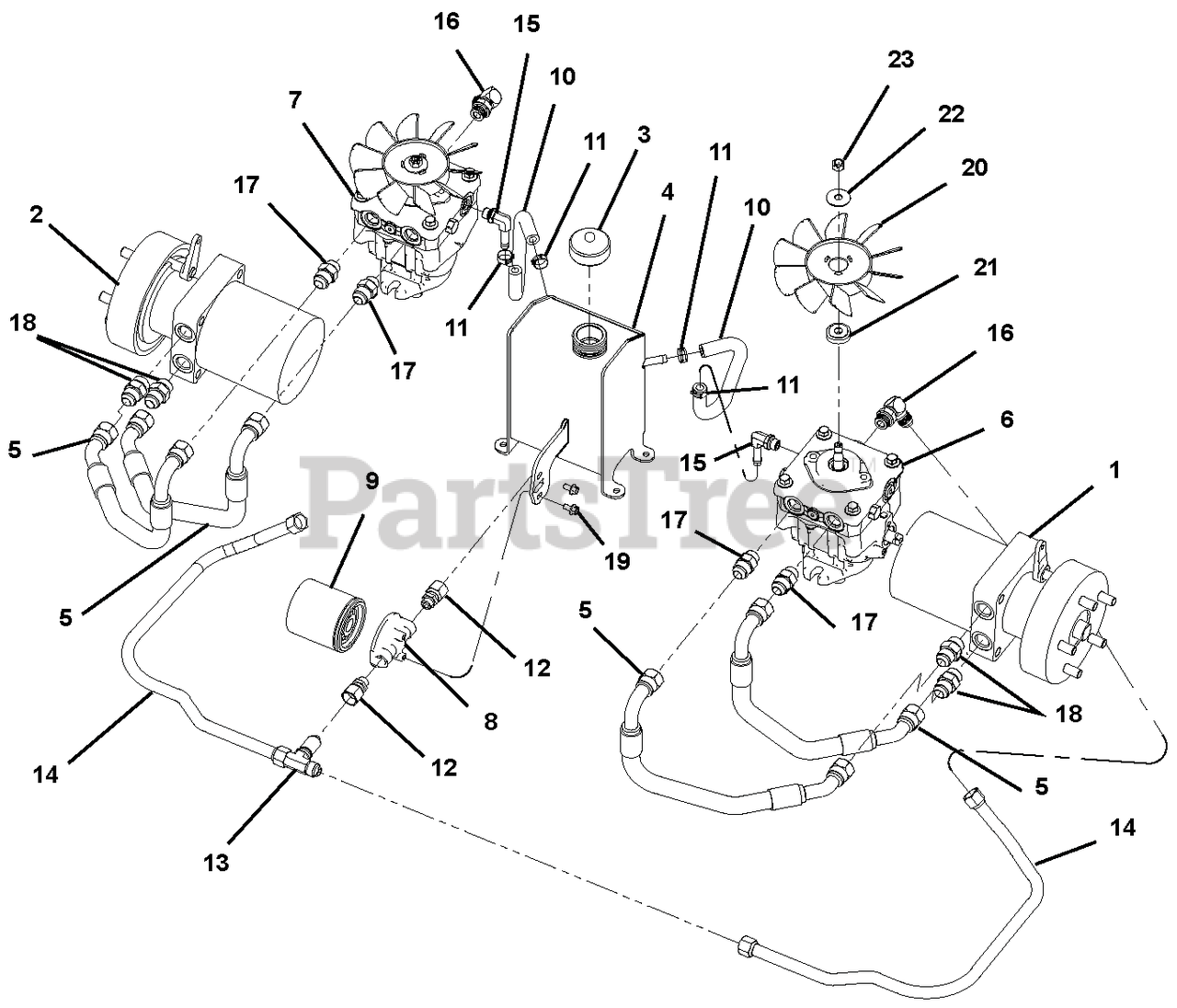

Hydraulics Parts Diagram

  • Title

1

Gravely 00180236

MOTOR, LH WHEEL

$1240.99

$

Usually ships in 4-12 days

0

2

Gravely 00180237

MOTOR, RH WHEEL

$

$

Not available

3

Gravely 00181210

CAP, OIL RESIVOIR W/FREE FLOW

$18.99

$

In Stock, only 2 left!

0

4

Gravely 03819851

WLDT, OIL TANK

$

$

Not available

5

Gravely 00180652

HOSE, HYD-10 -10FJIC90/45 18

$150.99

$

Usually ships in 4-12 days

0

6

Gravely 00180831

PUMP, HYDRO LH PR-2HDD

$1271.99

$

Usually ships in 4-12 days

0

7

Gravely 00180832

PUMP, HYDRO RH PR-2KDD

$1216.99

$

Usually ships in 4-12 days

0

8

Gravely 00180908

HEAD, OIL FILTER

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 00180909

FILTER, 25 MICRON

$59.99

$

Usually ships in 4-12 days

0

10

Gravely 00180935

HOSE, HYD 3/8 X 12.50

$

$

Not available

11

Gravely 00180947

CLAMP, HOSE - 11/16 SPRING

$

$

Not available

12

Gravely 00181031

FTG, ADP 9/16-18MORX3/4-16FJIC

$

$

Not available

13

Gravely 00181032

FTG, TUN 3/4-16JIC

$

$

Not available

14

Gravely 00181035

HOSE, HYD-8 -12FJIC 29

$26.99

$

Usually ships in 4-12 days

0

15

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

16

Gravely D14196

FTG, 90 ADP JIC-ORB 6801-08-08

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 00313290

FTG, ADP 3/4MORX7/8MJIC

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 00313392

FTG, ADP 7/8-14MORX7/8-14FJIC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely AA963000

BOLT, 1/4-20X.500 WSH 5 Y

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 00180993

FAN, BDP16 PLASTIC COOLER

$10.99

$

In Stock, only 2 left!

0

21

Gravely 00180994

HUB, BDP16 FAN

$18.99

$

In Stock, only 2 left!

0

22

Gravely 00180995

WASHER, .375X1.25X.072 BLVL U

$8.49

$

Usually ships in 4-12 days

0

23

Gravely 00964066

LOCKNUT, 3/8-24 CROWN Y
(Superseded to 06512300)

$4.99

$

Usually ships in 4-12 days

0

NS

Gravely 00181371

LEVER S/0

$

$

Not available

NS

Gravely 00181066

KIT, MOTOR SEAL - DF280 S/O

$

$

Not available
