992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Lift Rod Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

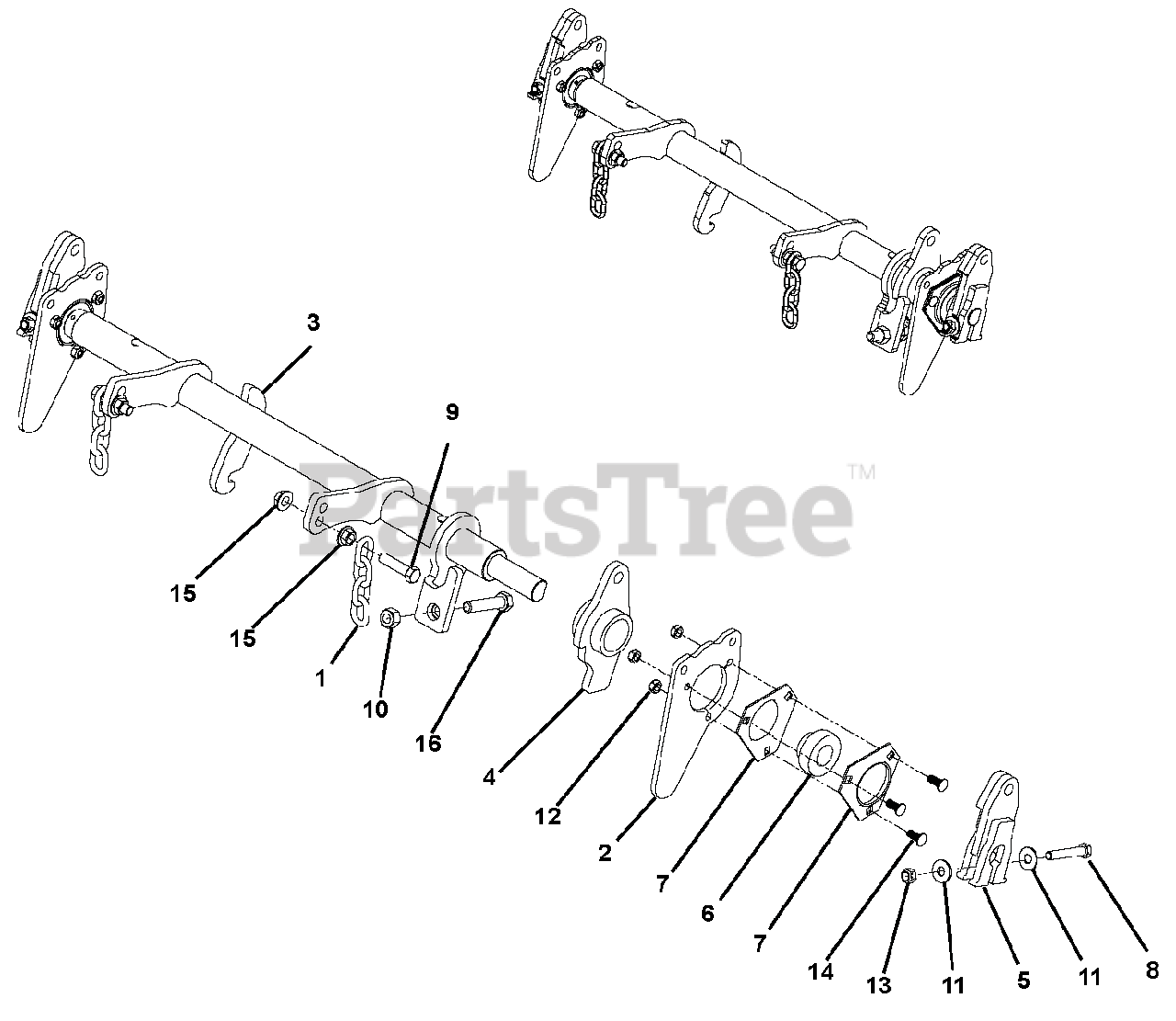

Lift Rod Parts Diagram

  • Title

1

Gravely 03845600

CHAIN, 4 LINKS 1/4" GR70 Y

$

$

Not available

2

Gravely 03814751

BALL BEARING PLATE

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 03814851

WLDT, CENTER LIFT

$

$

Not available

4

Gravely 03815051

WLDT, HOC ROTATION ADJUSTMENT

$

$

Not available

5

Gravely 03815151

WLDT, FRONT PIVOT CLAMP

$96.99

$

Usually ships in 4-12 days

0

6

Gravely 00251060

BEARING, SET SCREW COLLAR

$48.99

$

Usually ships in 4-12 days

0

7

Gravely 00251061

FLANGE, BEARING 52MM-3T-YZP

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 05982100

@BLT-HEX .44-14X1.75 GR5 YWZC
(Superseded to 05901828)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06530800

NUT-CROWN .312-18 YWZC

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06530004

NUT-FLANGED WHIZ .438-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 00967341

BOLT, 1/2-13X2.25 HEX 5 FLTD Y

$3.99

$

Usually ships in 4-12 days

0
