992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Mower Deck, Anti-Scalp Wheels and Belt Covers Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

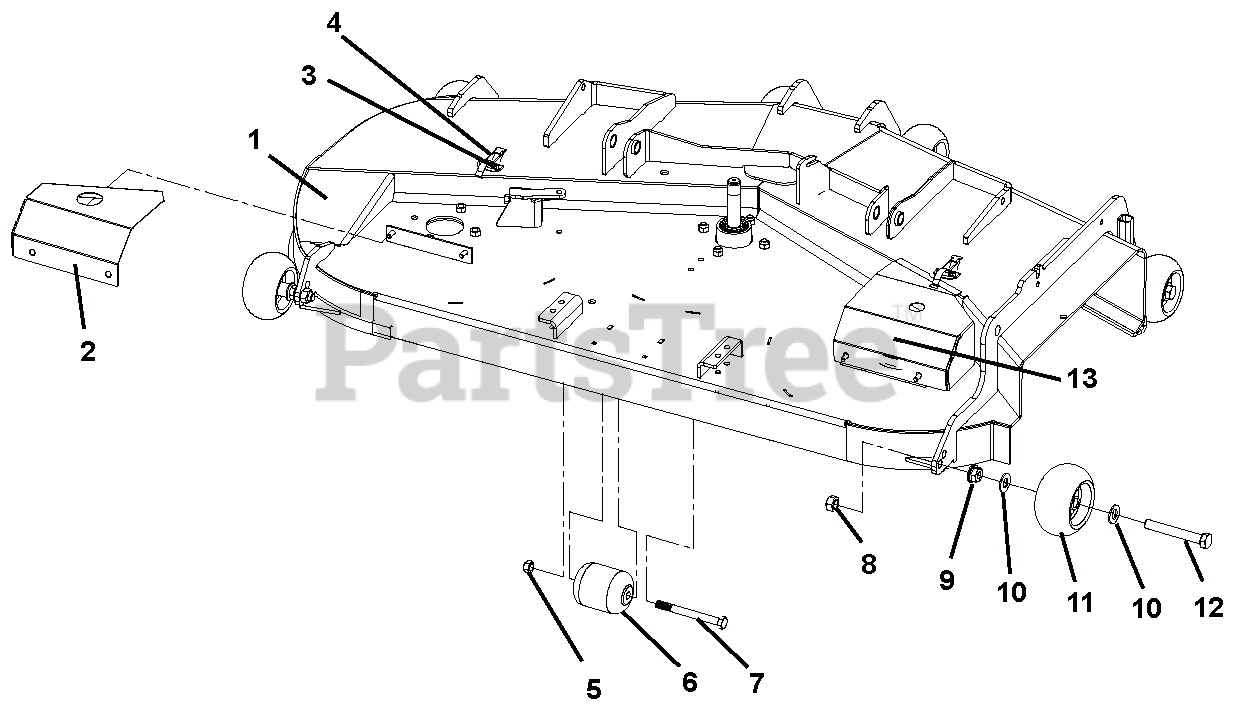

Mower Deck, Anti-Scalp Wheels and Belt Covers Parts Diagram

  • Title

1

Gravely 56496004

ASSY, 54 DECK & DECALS-GRAVELY

$

$

Not available

Gravely 56496005

ASSY, 60 DECK & DECALS-GRAVELY

$1793.99

$

Usually ships in 4-12 days

0

Gravely 56496006

ASSY, 66 DECK & DECALS-GRAVELY

$

$

Not available

2

Gravely 03799253

SHIELD, LH 60" DECK BELT

$60.99

$

Usually ships in 4-12 days

0

Gravely 03821953

SHIELD, BELT LEFT 66"

$52.99

$

Usually ships in 4-12 days

0

3

Gravely 00180501

LATCH, OVERCENTER

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 00104834

RIVET, POP .188 X .375 STEEL

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

6

Gravely 00161573

WHEEL, GAUGE 3.00 X 3.88 SYM

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 06518700

NUT-LK-TOP .62-11 PL (ND)

Note: (ND)

$4.99

$

In Stock, Qty 10

0

9

Gravely 06500509

SRATD FLNG HEX NUT 5/8-1 44412

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 00162701

WHEEL, GAUGE 5.00 X 2.52

$14.99

$

In Stock, Qty 11

0

12

Gravely 05983100

@BLT-HEX .62-11X4.50 GR5 YWZC

$7.49

$

In Stock, only 3 left!

0

13

Gravely 03799153

SHIELD, RH 54" & 60" BELT

Note: (992220, 221)

$73.99

$

Usually ships in 4-12 days

0

Gravely 03822053

SHEILD, BELT RH 66"

Note: (992222)

$46.99

$

Usually ships in 4-12 days

0
