992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

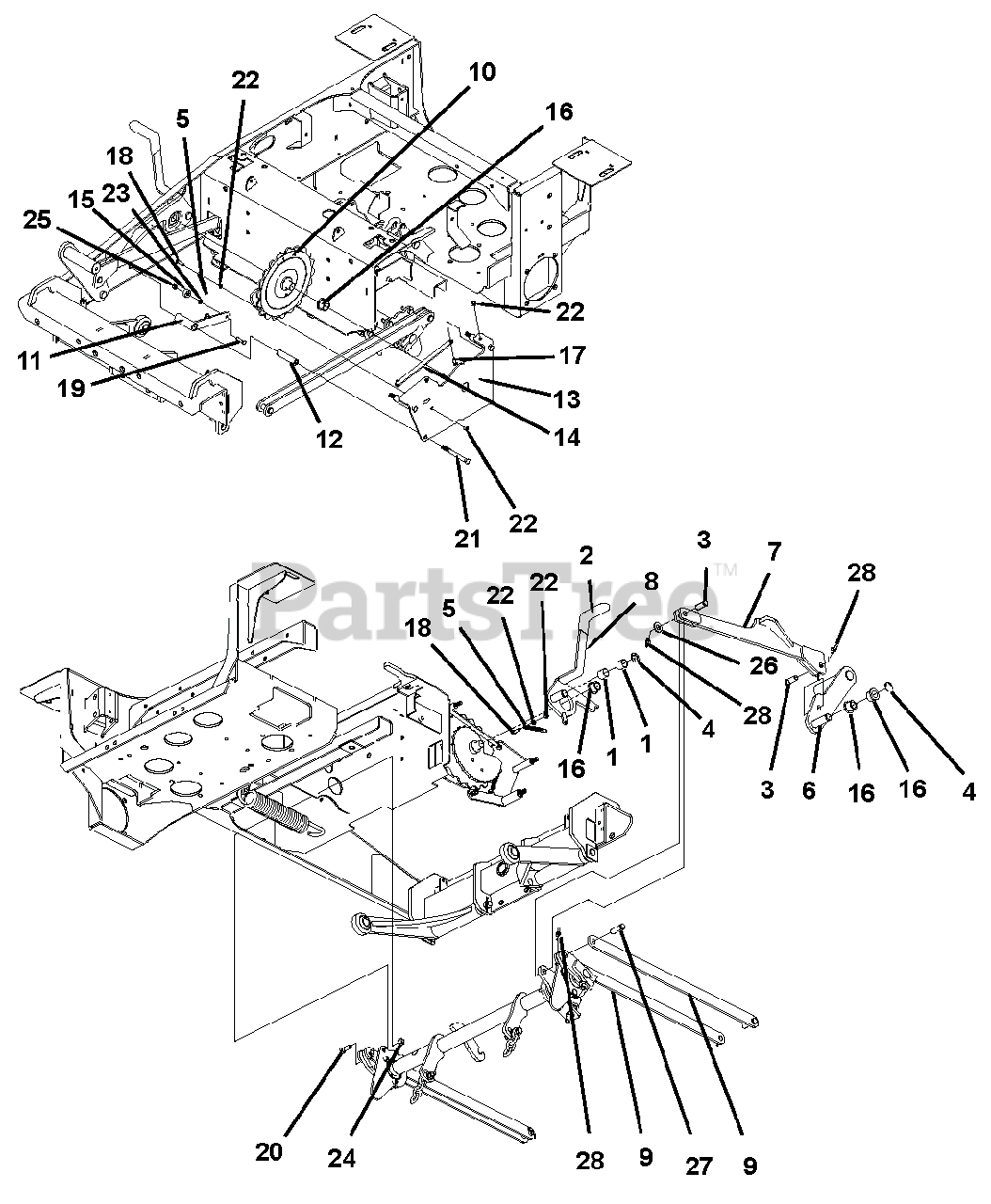

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 00105546

BRG, SLV .753X.878X.750

$7.49

$

In Stock, Qty 13

0

2

Gravely 00105593

GRIP, RUBBER LEVER

$

$

Not available

3

Gravely 06821600

PIN,CLEV .50X1.25X1.02 YWZC

$3.99

$

In Stock, only 2 left!

0

4

Gravely 05700134

E-RING, .750 X .050 Y

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 00135292

SPRING, EXT .375X.055X2.25 Y

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 03814251

WLDT, FOOT ARM

$101.99

$

Usually ships in 4-12 days

0

7

Gravely 03814151

WLDT, FOOT CONNECTOR

$

$

Not available

8

Gravely 03814351

WLDT, TRANSPORTATION LOCK

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 03814451

PLATE, CONNECTOR LINK

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 00181261

ASSY, CAM CONTROL W/DECALS S/O

$

$

Not available

11

Gravely 00181338

WLDT, ARM

$38.99

$

Usually ships in 4-12 days

0

12

Gravely 00181389

TUBE, RD .625 X .120 X 2.53 Y

$29.99

$

Usually ships in 4-12 days

0

13

Gravely 03799953

PLATE, HOC INDICATOR

$79.99

$

Usually ships in 4-12 days

0

14

Gravely 03800053

PLATE, FINGER GUARD

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 00191185

BRG, BAL .250X.688X.313

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 00252126

BUSHING, .750 X 1.00 X .750

$12.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

19

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

20

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

23

Gravely 06449100

WSHR-FL-STL M6 7X13X1.5 YWZC

$

$

Not available

24

Gravely 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

26

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06821700

PIN-CLEV .50X1.50X1.27 YWZC

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 00967354

RING, RUE .500 X .062 X 1.420

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 00250083

SPRING, EXT 1.90X.306X10.75

Note: NOT SHOWN

$

$

Not available
