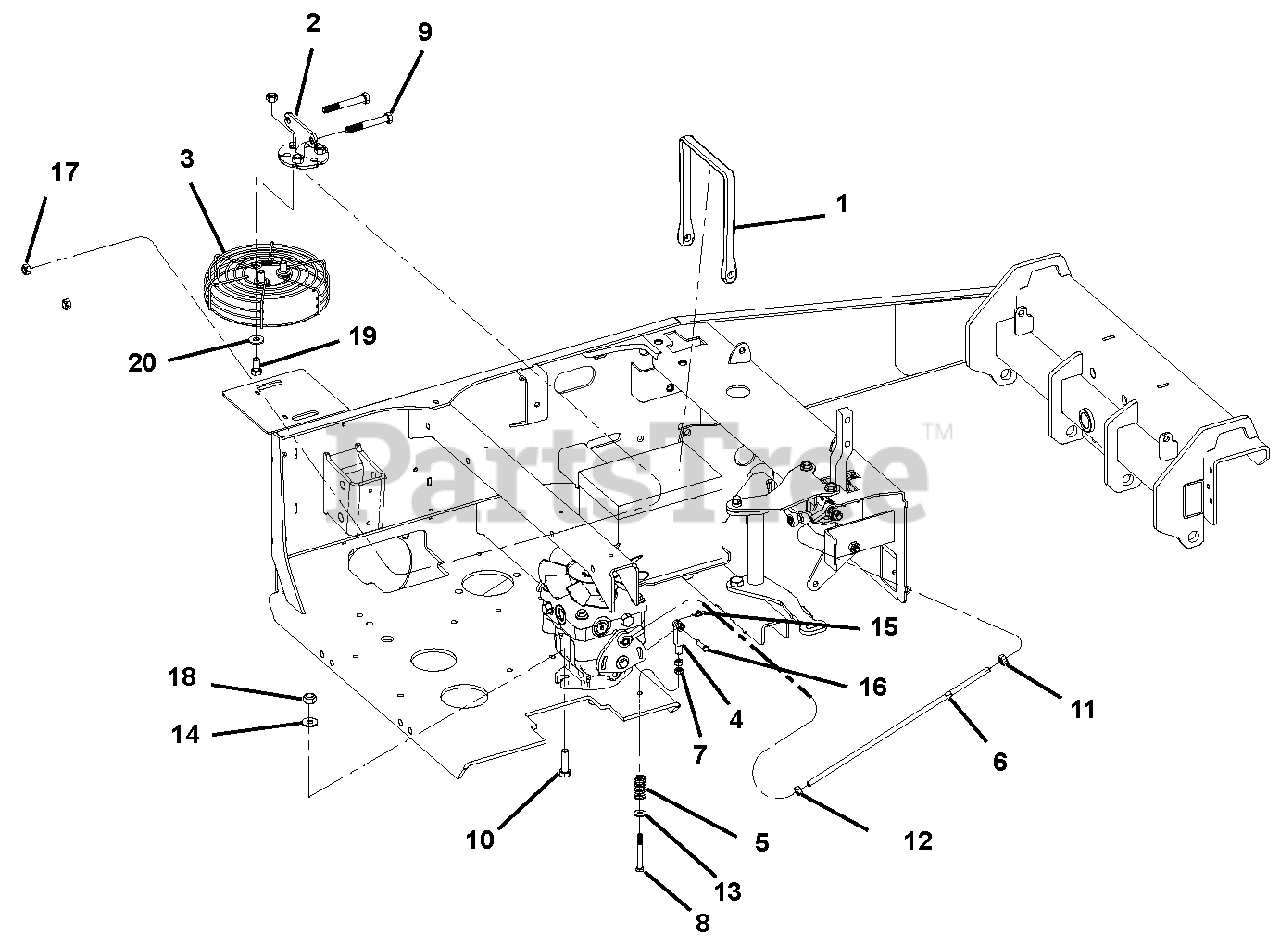

992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Pump Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

Pump Parts Diagram

  • Title

1

Gravely 00181228

BAND 15"

$

$

Not available

2

Gravely 03799751

WLDT, FAN SHIELD MOUNTING

$

$

Not available

3

Gravely 00181341

GRILL, 7" FAN

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 00180956

YOKE, 1/4-20 RH ADJUSTABLE

$

$

Not available

5

Gravely 00180957

SPRING, COM .784X.092X1.50

$

$

Not available

6

Gravely 00180967

ROD, PUMP CONTROL

$

$

Not available

7

Gravely 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

8

Gravely 00967393

BOLT, 1/4-20X2.75 SOC 8 Y

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 05962800

@BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

11

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 06547200

NUT-HEX .312-24 LH GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00967350

RING, RUE .250 X .041 X .844

$

$

Not available

16

Gravely 06818500

PIN, CVS .250X1.00X.859 Y

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 06508200

NUT-LK-CROWN .437-14 PL

$

$

Not available

19

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

20

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
