992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Seat, Foot Plate and Bumper Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

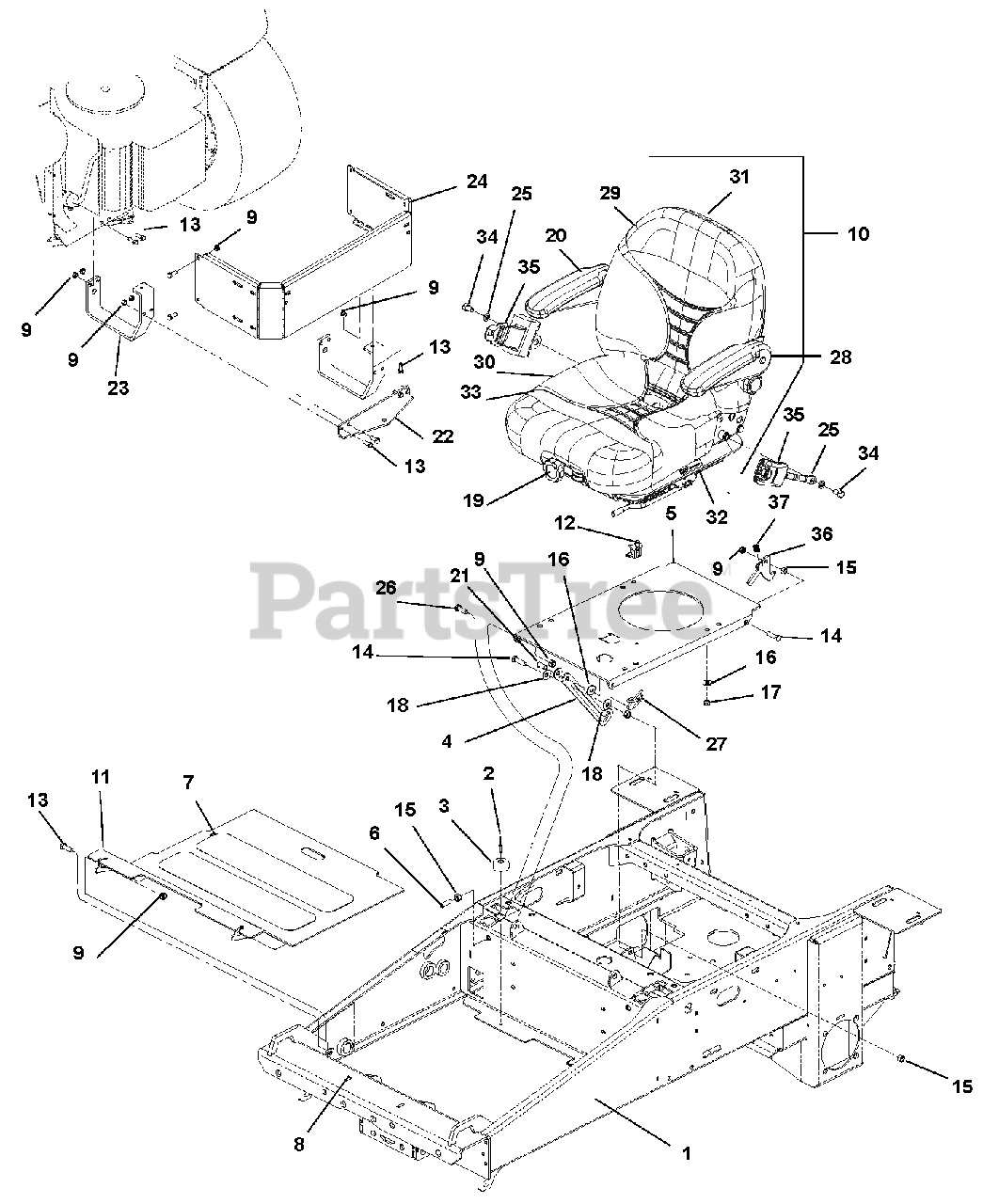

Seat, Foot Plate and Bumper Parts Diagram

  • Title

1

Gravely 56496000

ASSY FRAME WITH DECALS 54

Note: (992220) (Serials 101 - 2499)

$

$

Not available

Gravely 56496008

ASSY, FRAME WITH DECALS 54

Note: (992220) (Serials 2500 and up)

$

$

Not available

Gravely 56496001

ASSY FRAME WITH DECALS 60

Note: (992221) (Serials 101 - 2499)

$

$

Not available

Gravely 56496009

ASSY FRAME WITH DECALS 60

Note: (992221) (Serials 2500 and up)

$

$

Not available

Gravely 56496002

ASSY FRAME WITH DECALS 66

Note: (992222) (Serials 101 - 2499)

$

$

Not available

Gravely 56496011

ASSY FRAME WITH DECALS 66

Note: (992222) (Serials 2500 and up)

$

$

Not available

2

Gravely AA968100

RIVET, 3/16 X .500 POP ST

$

$

Not available

3

Gravely 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$

$

Not available

4

Gravely 00180391

BAR, SEAT LOCK

$

$

Not available

5

Gravely 03817453

PLATE, SEAT

$71.99

$

Usually ships in 4-12 days

0

6

Gravely 00962903

SET SCREW, 3/8-16X1.25 SK CUP
(Superseded to 06006002)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 00180658

TAPE, NON-SLIP - 4.00 X 18.00

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 00180659

TAPE, NON-SLIP - 2.50 X 21.50

$

$

Not available

9

Gravely 06508000

NUT-LK-FLG .375-16 PL

$5.49

$

Usually ships in 4-12 days

0

10

Gravely 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

Note: (Includes items 12, 19, 20 and 28 - 33)

$967.99

$

Usually ships in 4-12 days

0

11

Gravely 03817353

WLDT, FOOT PLATE

$110.99

$

Usually ships in 4-12 days

0

12

Gravely 02754100

SWITCH- SNAP MTG N.O.

$10.99

$

In Stock, Qty 19

0

13

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 06530800

NUT-CROWN .312-18 YWZC

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 59208000

KIT-SEAT KNOB

$36.99

$

Usually ships in 4-12 days

0

20

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$148.99

$

Usually ships in 4-12 days

0

21

Gravely 06814800

PIN-CLEV .38X.75 YWZC

$4.99

$

In Stock, only 2 left!

0

22

Gravely 03817253

PLATE, HITCH

$62.99

$

Usually ships in 4-12 days

0

23

Gravely 03771853

ARM, HITCH SUPPORT

$116.99

$

Usually ships in 4-12 days

0

24

Gravely 03792253

PLATE, REAR BUMPER

Note: (Serials 101 - 2499)

$

$

Not available

Gravely 04307553

PLATE, GRAVELY BUMPER

Note: (Serials 2500 and up)

$93.99

$

Usually ships in 4-12 days

0

25

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

26

Gravely 07070119

BLT-SHLDR .5X1.06X.38-16 SLD 5

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$148.99

$

Usually ships in 4-12 days

0

29

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$451.99

$

Usually ships in 4-12 days

0

30

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$275.99

$

In Stock, only 2 left!

0

31

Gravely 59208100

KIT-SEAT BACK PANEL

$187.99

$

Usually ships in 4-12 days

0

32

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

33

Gravely 59207800

KIT-SPRING AND SADDLE

$195.99

$

Usually ships in 4-12 days

0

34

Gravely 05918400

@BLT-HEX .44-20X.75 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 00181572

ASSY, SEAT BELT

$

$

Not available

36

Gravely 03841451

LATCH, SEAT

$10.99

$

Usually ships in 4-12 days

0

37

Gravely 00160176

SPRING, COM .600X.056X.875 Y

$

$

Not available
