992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Steering Controls Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

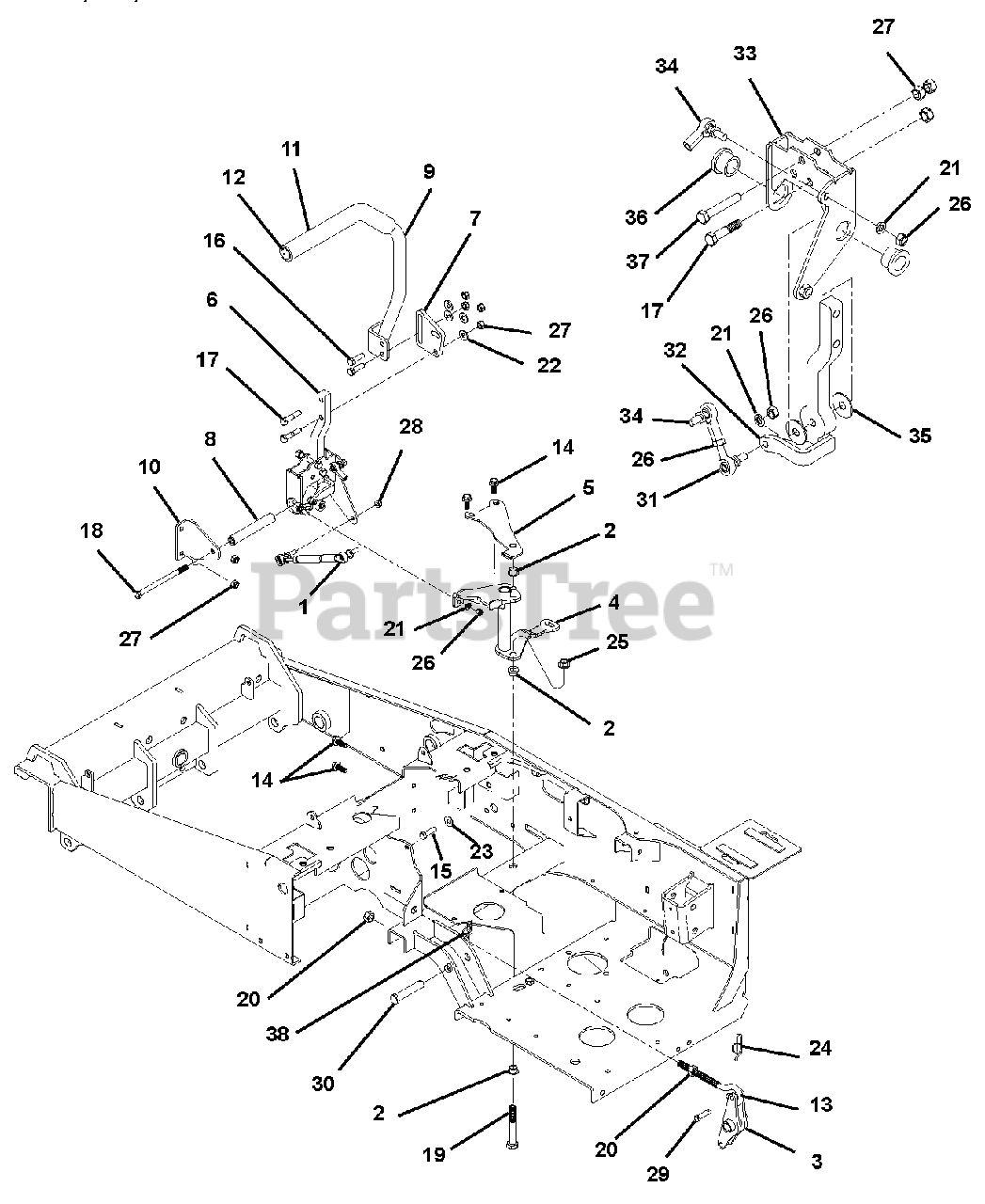

Steering Controls Parts Diagram

  • Title

1

Gravely 00180231

DAMPNER, STEERING CONTROL

$

$

Not available

2

Gravely 00180354

BRG, FLG .502X.629X.421

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 03814551

WLDT, SPRING PIVOT

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 03833751

WLDT, RH PARK BRAKE CONTROL

$101.99

$

Usually ships in 4-12 days

0

Gravely 03833951

WLDT, LH PARK BRAKE CONTROL

$101.99

$

Usually ships in 4-12 days

0

5

Gravely 03818951

EAR, RH BRAKE PIVOT

$

$

Not available

Gravely 03819051

EAR, LH BRAKE PIVOT

$41.99

$

Usually ships in 4-12 days

0

6

Gravely 03816151

WLDT, RH STEERING BAR

$182.99

$

Usually ships in 4-12 days

0

Gravely 03816351

WLDT, LH STEERING BAR

$190.99

$

Usually ships in 4-12 days

0

7

Gravely 03818251

PLATE, HANDLE HEIGHT

$

$

Not available

8

Gravely 00180543

TUBE, RD .750 X .179 X 4.69 Y

$

$

Not available

9

Gravely 03818051

WLDT, RH STEERING HANDLE

$

$

Not available

Gravely 03818151

WLDT, LH STEERING HANDLE

$

$

Not available

10

Gravely 03819251

PLATE, BENT

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 00180617

FOAM GRIP

Note: (Serials 101 - 2499)

$

$

Not available

Gravely 04311900

GRIP, HANDLE

Note: (Serials 2500 and up)

$

$

Not available

12

Gravely 00180639

PLUG, 7/8" END

Note: (Serials 101 - 2499)

$

$

Not available

13

Gravely 00250356

EYEBOLT, 1/2-13X1.00X4.50 FL Y

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 11

0

16

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05982000

@BLT-HEX .38-16X5.50 GR5 YWZC

$4.99

$

In Stock, only 1 left!

0

19

Gravely 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$5.49

$

In Stock, only 2 left!

0

21

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$4.99

$

In Stock, Qty 5

0

26

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 06508000

NUT-LK-FLG .375-16 PL

$5.49

$

Usually ships in 4-12 days

0

28

Gravely 06549300

NUT-LK-TOP M8-1.25 YWZC

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06820300

PIN-CLEV .375X1.38X1.14 YWZC

$

$

Not available

30

Gravely 06823200

PIN-CLEV .625X3.00X2.77 YWZC

$6.99

$

Usually ships in 4-12 days

0

31

Gravely 00180249

BALL JOINT, RH 5/16 MALE W/STD

$

$

Not available

32

Gravely 03816151

WLDT, RH STEERING BAR

$182.99

$

Usually ships in 4-12 days

0

Gravely 03816351

WLDT, LH STEERING BAR

$190.99

$

Usually ships in 4-12 days

0

33

Gravely 03816251

WLDT, HANDLE CONTROL RH

$

$

Not available

Gravely 03816451

WLDT, HANDLE CONTROL LH

$

$

Not available

34

Gravely 00180606

BALL JOINT, RH 5/16 FMAL W/STD

$

$

Not available

35

Gravely 00180961

WASHER, .400X1.27X.062 NYLON

$2.99

$

In Stock, only 2 left!

0

36

Gravely 00252126

BUSHING, .750 X 1.00 X .750

$13.99

$

Usually ships in 4-12 days

0

37

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

38

Gravely 00967356

RING, RUE .625 X .072 X 1.690

$4.99

$

In Stock, only 2 left!

0
