992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Wheels and Brake Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

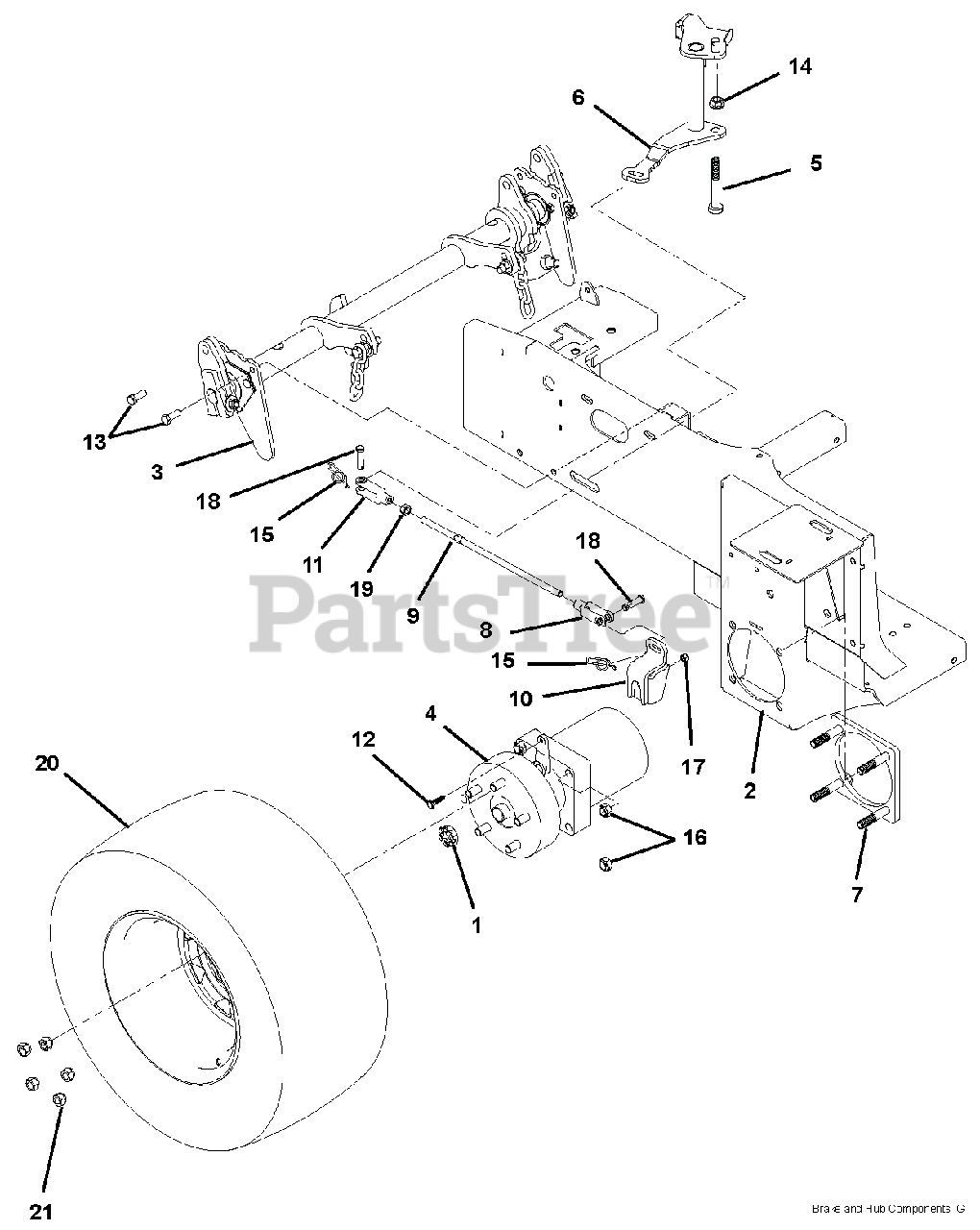

Wheels and Brake Parts Diagram

  • Title

1

Gravely 00191625

NUT, 1-20 SPECIAL CASTLE S/O

$

$

Not available

2

Gravely 03850400

FRAME WITH DECALS ACM

$

$

Not available

3

Rear Lift Rod Assembly (See "Lift Rod" on page 14.)

Note: (See "Lift Rod" on page 14.)

$

$

Not available

4

Gravely 00180236

MOTOR, LH WHEEL

$1187.99

$

Usually ships in 4-12 days

0

Gravely 00180237

MOTOR, RH WHEEL

$

$

Not available

5

Gravely 00180354

BRG, FLG .502X.629X.421

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 03833951

WLDT, LH PARK BRAKE CONTROL

$97.99

$

Usually ships in 4-12 days

0

Gravely 03833751

WLDT, RH PARK BRAKE CONTROL

$97.99

$

Usually ships in 4-12 days

0

7

Gravely 03819751

WLDT, WHEEL MOTOR PLATE

$

$

Not available

8

Gravely 00180968

YOKE, 3/8-24 LH ADJUSTABLE

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 00180981

ROD, STRAIGHT PARK BRAKE CONTR

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 03976951

WLDT, BRAKE ARM EXT. PARKER

$64.99

$

Usually ships in 4-12 days

0

11

Gravely 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$16.99

$

Usually ships in 4-12 days

0

12

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

13

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

15

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

18

Gravely 06820300

PIN-CLEV .375X1.38X1.14 YWZC

$

$

Not available

19

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

20

Gravely 00180235

TIRE/WHEEL ASSY, 24X11.50-12

$288.99

$

Usually ships in 4-12 days

0

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

$202.99

$

Usually ships in 4-12 days

0

Gravely 00181342

RIM, 12X8.5
(Superseded to 00180235)

$288.99

$

Usually ships in 4-12 days

0

21

Gravely 06553000

NUT, 1/2-20 LUG, GRADE 5
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0
