992227 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 031000 - 039999) Fuel System - CARB Parts Diagram

Pro-Turn 60" Zero-Turn Mower, CARB

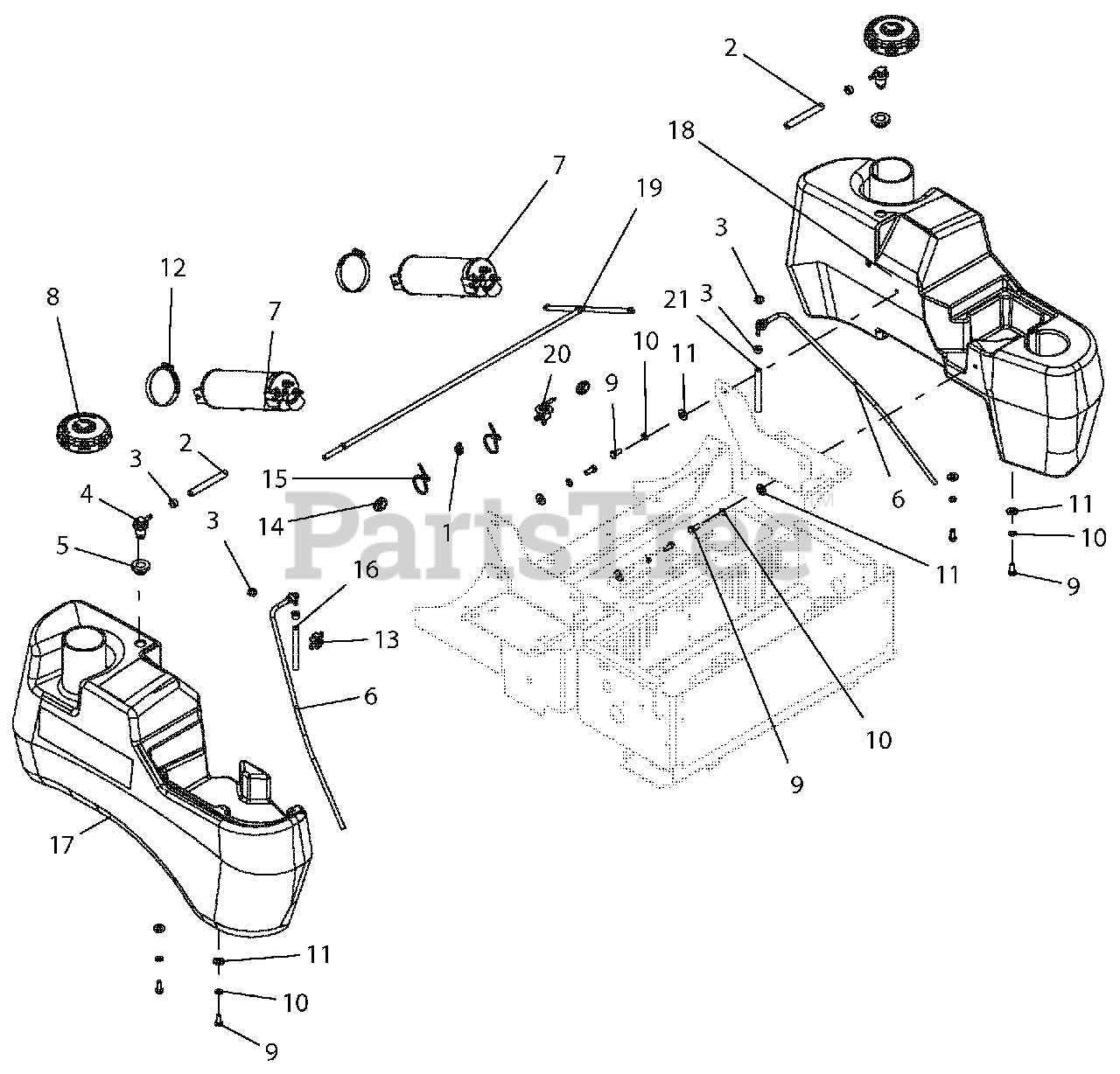

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 00367900

CLIP, ROUTING (.50 ID)

Note: (.50 ID)

$1.99

$

In Stock, only 1 left!

0

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 14.00" LG - Tank vent to CARB canister

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, Qty 12

0

5

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

6

Gravely 04320800

ASM, LARGE TANK FUEL PICKUP

$35.99

$

In Stock, only 2 left!

0

7

Gravely 04545900

CANISTER, CARBON 9.3 GAL

$80.99

$

Usually ships in 4-12 days

0

8

Gravely 04558100

CAP, NON NONVENT AUTOLOCK

$23.99

$

In Stock, only 1 left!

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06940200

CLAMP, HOSE 2.3/3.2

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 07500031

GROMMET, RUBBER

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.00" LG - RH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04340800

TANK, RH LARGE GRAVELY FUEL
(Superseded to 04341200)

$

$

Not available

18

Gravely 04340900

TANK, LH LARGE GRAVELY FUEL
(Superseded to 04341300)

$

$

Not available

19

Gravely 04571200

PT200-400 KAW CARB FUEL LINE ASSEMBLY

$

$

Not available

20

Gravely 09233600

VALVE, FUEL
(Superseded to 09164400)

$46.99

$

In Stock, only 2 left!

0

21

Gravely 03278100

.25 LOW-PERM GAS HOSE 30.00" LG - LH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0
