992230 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) 52" Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

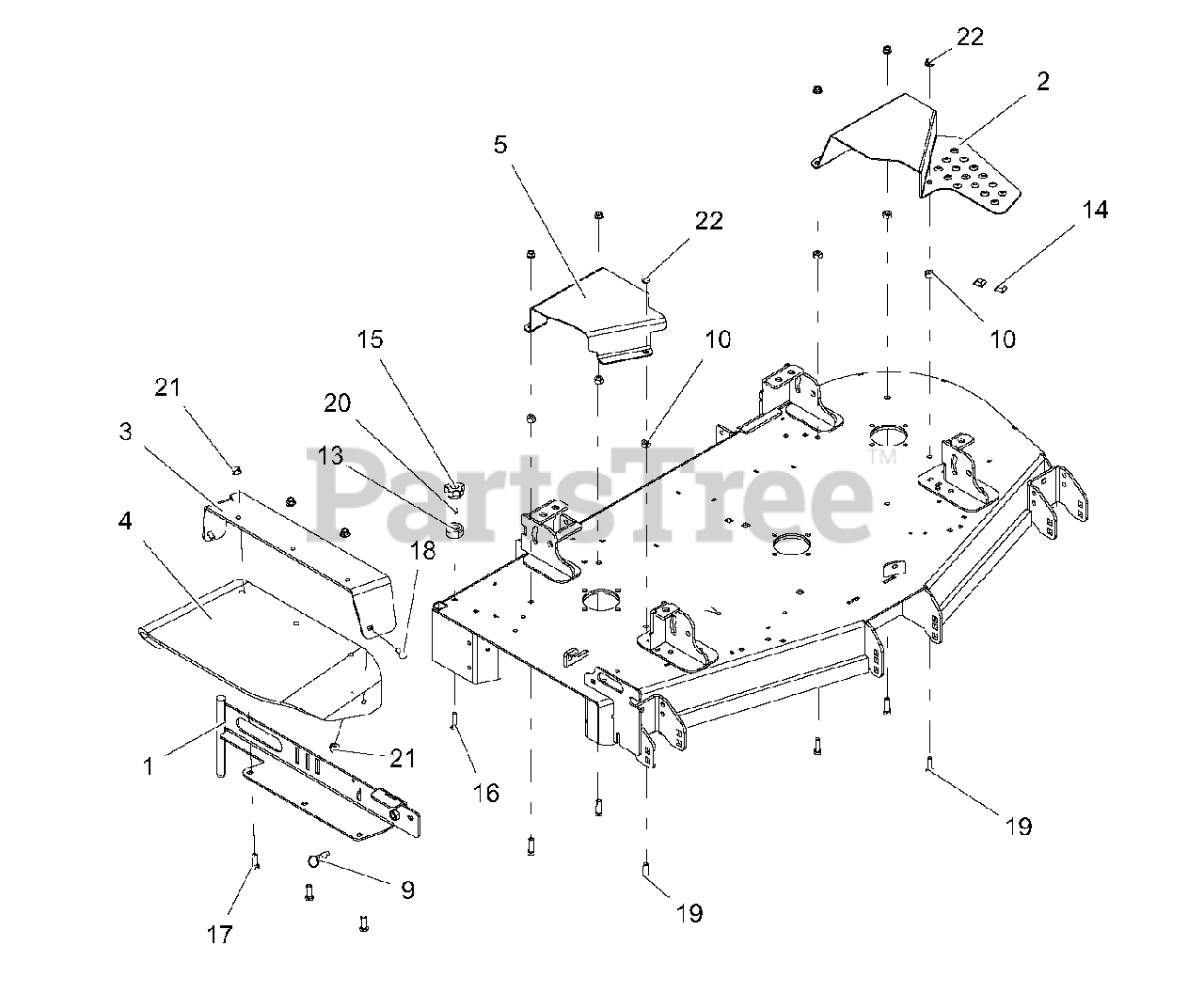

52" Belt Covers Parts Diagram

  • Title

1

Gravely 00980553

WMT, 52"-60" DISCH CHUTE MTG
(Superseded to 04727953)

$131.99

$

In Stock, only 1 left!

0

2

Gravely 04418353

GUARD-52" LH DECK BELT W/STEP

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 04551553

RUBBER DISCH CHUTE SUPPORT-RED

$105.99

$

Usually ships in 4-12 days

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 9

0

5

Gravely 04590253

GUARD 48-52 RH DECK BELT-RED

$56.99

$

Usually ships in 4-12 days

0

9

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

10

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

14

Gravely 07525100

STOP

$2.49

$

In Stock, only 3 left!

0

15

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

17

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0
