992230 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) 52 Inch Deck and Deck Mount Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

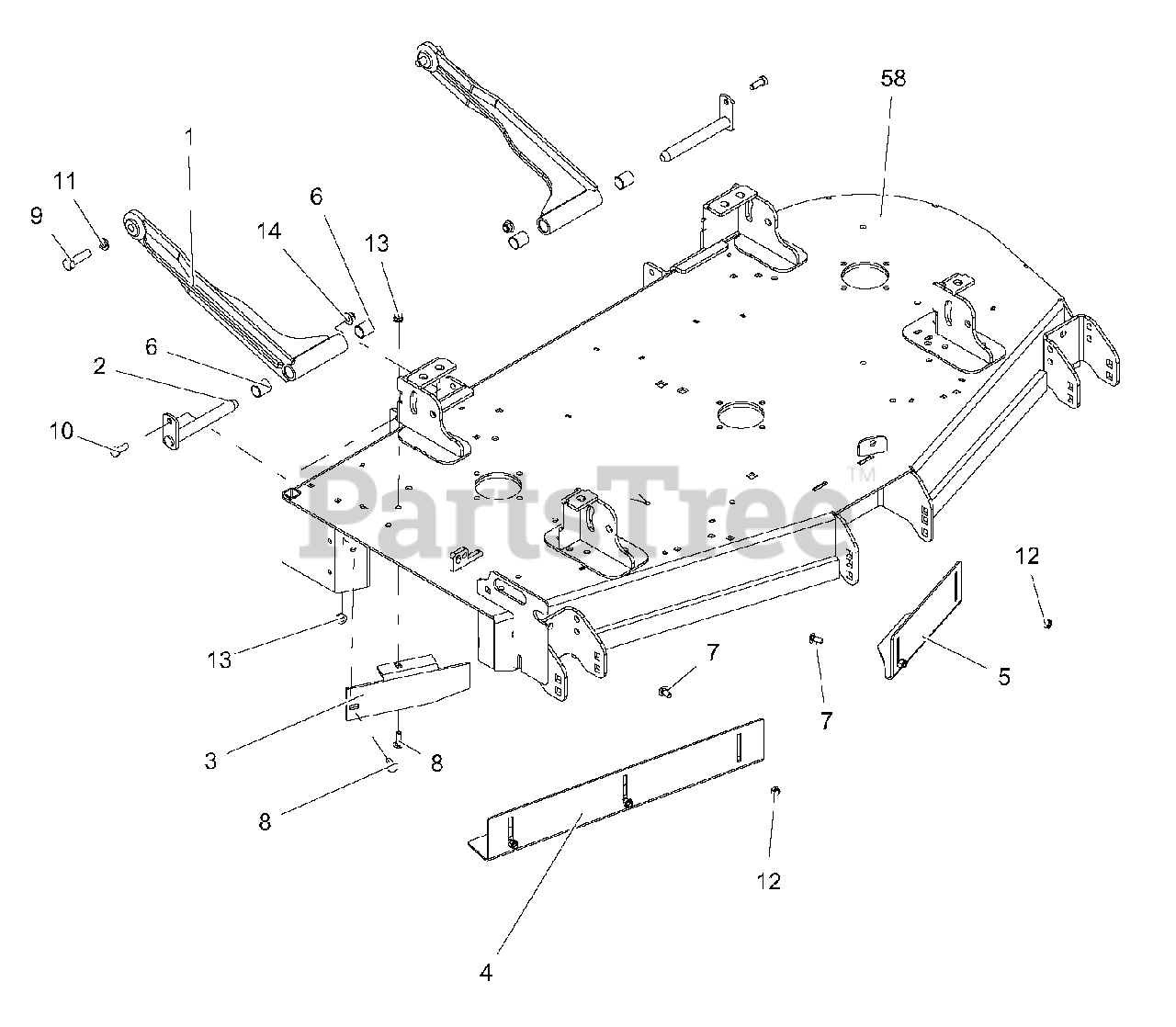

52 Inch Deck and Deck Mount Parts Diagram

  • Title

1

Gravely 03837151

DECK STABILIZER ARM - BLACK
(Superseded to 05253251)

$151.99

$

Usually ships in 4-12 days

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

3

Gravely 00440853

52" DISCHARGE BAFFLE - RED

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 00952851

52" RH VACUUM BAFFLE - BLK
(Superseded to 05251751)

$44.99

$

Usually ships in 4-12 days

0

5

Gravely 00952951

52" LH VACUUM BAFFLE - BLK
(Superseded to 05251851)

$37.99

$

In Stock, only 1 left!

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

7

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

13

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

58

Gravely 04547853

WMT, 52" SIDE DISCHARGE DECK
(Superseded to 59220700)

$830.99

$

Usually ships in 4-12 days

0
