992231 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Fuel System - Non-CARB Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

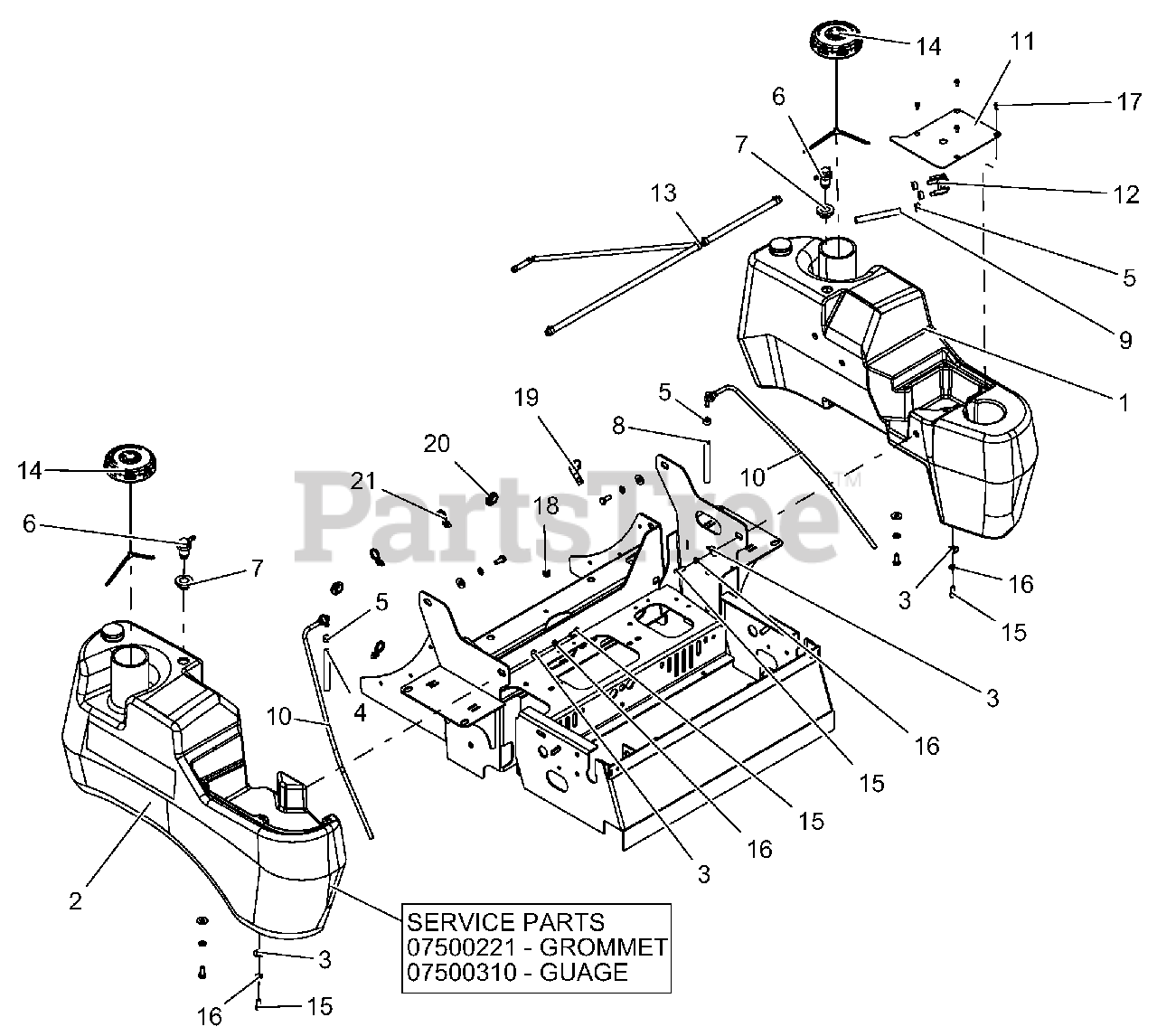

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04722500

ASSY-LH LARGE FUEL TANK W/MECH GAUGE-GAS

$368.99

$

Usually ships in 4-12 days

0

2

Gravely 04722600

ASSY-RH LARGE FUEL TANK W/MECH GAUGE-GAS

$367.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03278100

.25 LOW-PERM GAS HOSE 54.00" LG - RH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, Qty 13

0

7

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

8

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.00" LG - LH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03278100

.25 LOW-PERM GAS HOSE 28.00" LG - Valve to engine

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04320800

ASM, LARGE TANK FUEL PICKUP

$35.99

$

In Stock, only 2 left!

0

11

Gravely 04396053

PLATE, FUEL VALVE MOUNTING-RED

$32.99

$

Usually ships in 4-12 days

0

12

Gravely 04426400

VALVE, FUEL
(Superseded to 09389900)

$

$

Not available

13

Gravely 04458300

PT400, FUEL LINE ASSEMBLY

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$35.99

$

In Stock, Qty 8

0

15

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

18

Gravely 00367900

CLIP, ROUTING (.50 ID)

Note: (.50 ID)

$1.99

$

In Stock, only 1 left!

0

19

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 07500031

GROMMET, RUBBER

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0
