992232 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Tire Assembly Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

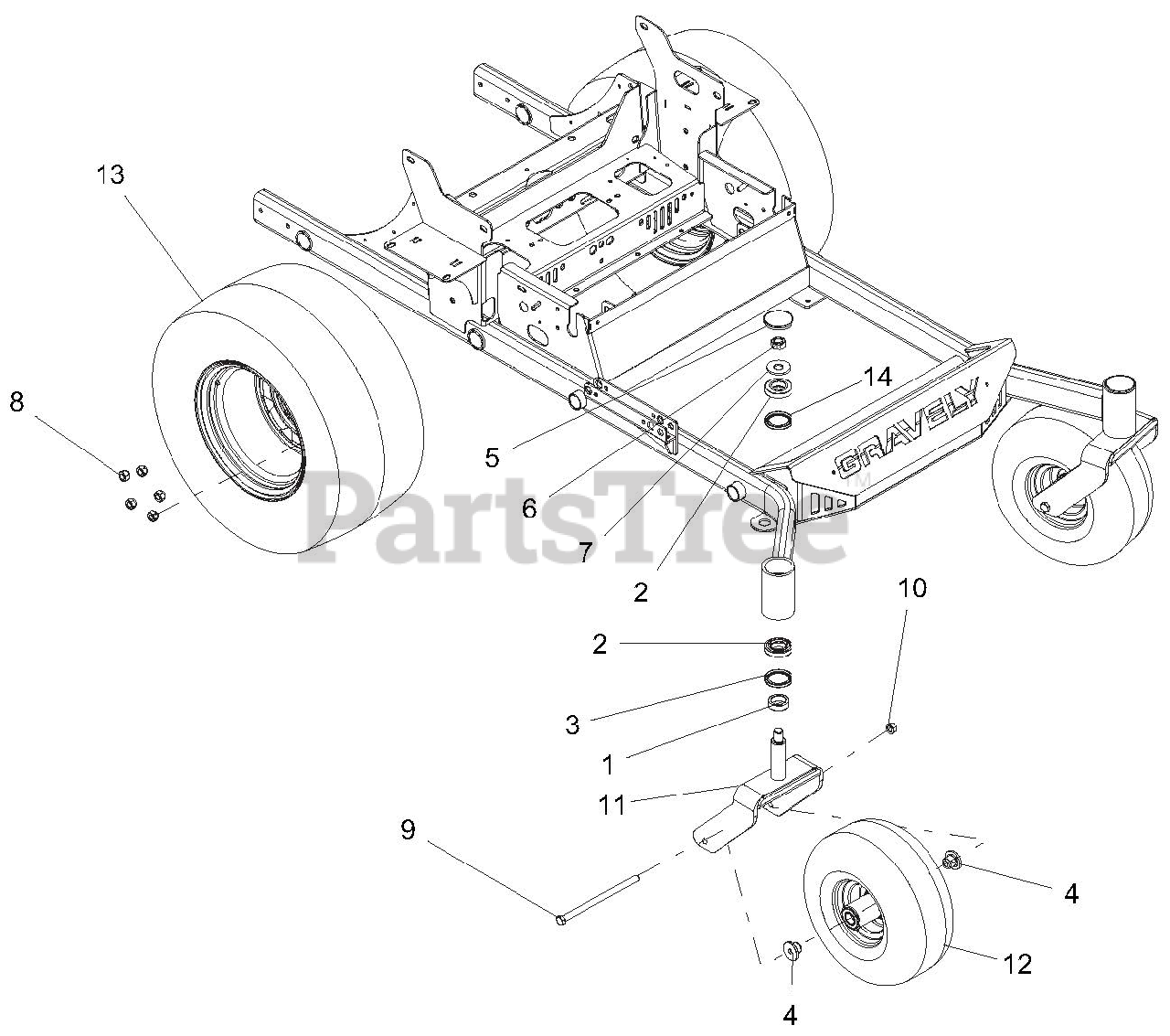

Tire Assembly Parts Diagram

  • Title

1

Gravely 03760300

SPACER-1.258 ID X 1.750 OD X .550

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 05404600

ROLLER BEARING

$15.99

$

In Stock, Qty 7

0

3

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, only 3 left!

0

4

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

5

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 4 left!

0

6

Gravely 06536900

NUT-LK-CTR-JAM .75-16 YWZC

$6.49

$

In Stock, Qty 11

0

7

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 12

0

8

Gravely 06517600

NUT, 1/2-20 LUG C
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 15

0

10

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 03924453

WMT, CASTER FORK

$184.99

$

In Stock, only 2 left!

0

12

Gravely 07100930

TIRE/WHEEL 15 X 6-6 SEMI PNEU
(Superseded to 59219100)

$255.99

$

In Stock, only 2 left!

0

13

Gravely 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

Note: (992232, 233, 234, 235, 238, 239)

$300.99

$

Usually ships in 4-12 days

0

13

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

Note: (992232, 233, 234, 235, 238, 239)

$250.99

$

Usually ships in 4-12 days

0

13

Gravely 07100810

TIRE/WHEEL ASSM, 23X10.00-12
(Superseded to 07101116)

Note: (992230, 231)

$319.99

$

In Stock, only 1 left!

0

13

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

Note: (230, 231)

$205.99

$

Usually ships in 4-12 days

0

14

Gravely 05404700

BEARING CONE 1.25 X .66

$22.99

$

In Stock, Qty 17

0
