992233 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Fuel System Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

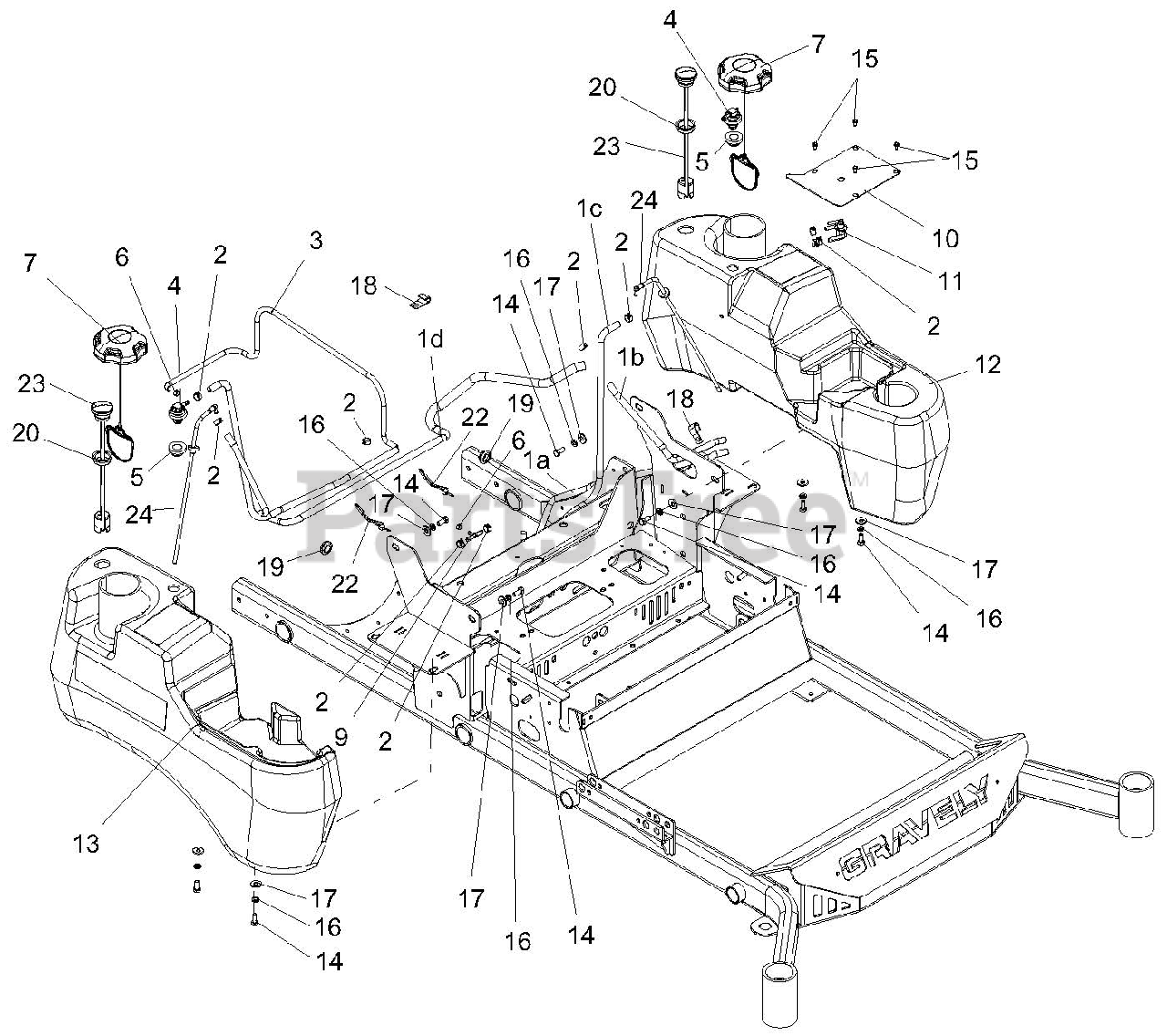

Fuel System Parts Diagram

  • Title

1a

Gravely 03278100

.25 LOW PERM GAS HOSE

Note: (992230, 232, 235, 238, 239)

$0.99

$

In Stock, Qty 20+

0

1a

Gravely 03278100

.25 LOW PERM GAS HOSE

Note: (992231,233)

$0.99

$

In Stock, Qty 20+

0

1b

Gravely 03278100

.25 LOW PERM GAS HOSE

$0.99

$

In Stock, Qty 20+

0

1c

Gravely 03278100

.25 LOW PERM GAS HOSE

$0.99

$

In Stock, Qty 20+

0

1d

Gravely 03278100

.25 LOW PERM GAS HOSE

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

5

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

6

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 04237300

CAP, 3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

9

Gravely 04306900

TEE, 1/4 HOSE RUN X 3/16 HOSE BRANCH

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 04396053

PLATE, FUEL VALVE MOUNTING

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 04426400

VALVE, FUEL
(Superseded to 09164300)

$37.99

$

In Stock, Qty 6

0

12

Gravely 04452000

TANK, LH LARGE FUEL
(Superseded to 04722500)

Note: (INCLUDES 20 & 23)

$360.99

$

Usually ships in 4-12 days

0

13

Gravely 04452100

TANK, RH LARGE FUEL
(Superseded to 04722600)

Note: (INCLUDES 20 & 23)

$359.99

$

Usually ships in 4-12 days

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

15

Gravely 06100211

SCR, HWH 10-24x.38 STAINLESS

$2.99

$

In Stock, Qty 12

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

18

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 11

0

19

Gravely 07500031

GROMMET, RUBBER

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 07500034

GROMMET, FUEL GAGE

$6.49

$

In Stock, Qty 13

0

22

Gravely 07500040

CABLE TIE W/ TREE, .25 HOLE

$3.99

$

In Stock, only 1 left!

0

23

Gravely 07500223

GUAGE, REMOTE FUEL, 12"
(Superseded to 07500310)

$

$

Not available

24

Gravely 04320800

ASSEMBLY, LARGE TANK FUEL PICKUP

$34.99

$

In Stock, only 2 left!

0
