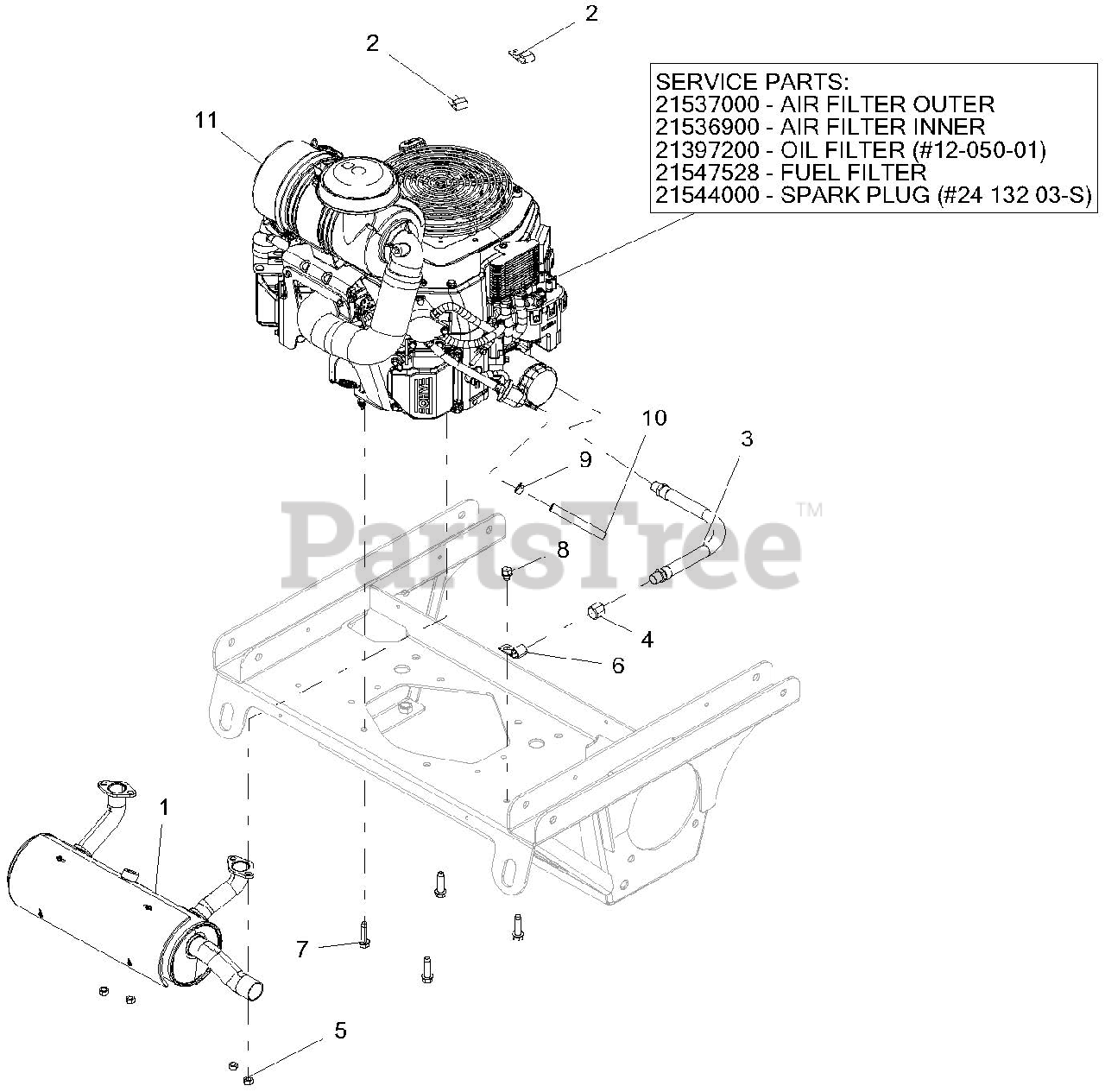

992233 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 041000 & Above) Engine - Kohler Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

Engine - Kohler Parts Diagram

  • Title

1

Gravely 04262200

MUFFLER, KOHLER EFI

$358.99

$

Usually ships in 4-12 days

0

2

Gravely 06909400

CLAMP, J

$3.99

$

In Stock, only 2 left!

0

3

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

6

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

9

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03278100

.25 LOW-PERM GAS HOSE 47.00" LG

Note: VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

11

Gravely 08200628

ENGINE, KOHLER EFI ECV749

$

$

Not available

11

Gravely 21537000

AIR FILTER OUTER

Note: SERVICE PART

$28.99

$

In Stock, Qty 20+

0

11

Gravely 21536900

AIR FILTER INNER

Note: SERVICE PART

$29.99

$

In Stock, only 4 left!

0

11

Gravely 21397200

OIL FILTER (#12-050-01)
(Superseded to 20715100)

Note: SERVICE PART

$21.99

$

In Stock, Qty 20+

0

11

Gravely 21547528

FUEL FILTER

Note: SERVICE PART

$15.99

$

In Stock, only 4 left!

0

11

Gravely 21544000

SPARK PLUG (#24 132 03-S)

Note: SERVICE PART

$3.99

$

Usually ships in 4-12 days

0
