992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Air Cleaner And Idler Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

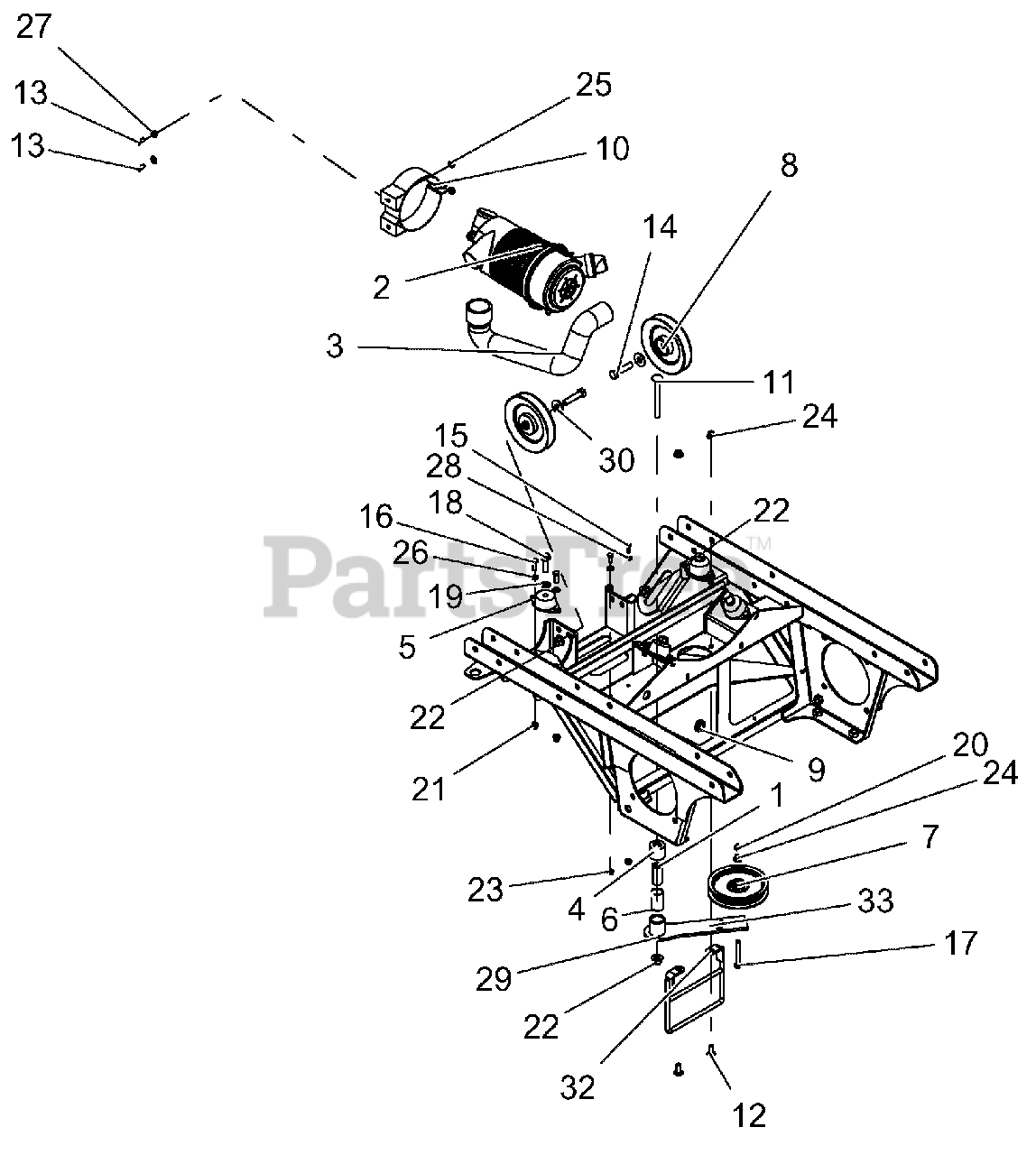

Air Cleaner And Idler Parts Diagram

  • Title

1

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

2

Gravely 03782600

AIR, CLEANER

$177.99

$

Usually ships in 4-12 days

0

3

Gravely 04440700

HOSE, FORMED AIR CLEANER OUTLET

$86.99

$

Usually ships in 4-12 days

0

4

Gravely 04453000

SPCR, PT400 DIESEL IDLER ARM

$73.99

$

Usually ships in 4-12 days

0

5

Gravely 05034800

MOUNT, ENGINE. VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

7

Gravely 07300524

IDLER, FLAT 5.00 X 3.8
(Superseded to 07334500)

$79.99

$

In Stock, only 3 left!

0

8

Gravely 07328000

PULLEY, V-IDLER 6.0X.500 ID DBL BRG

$102.99

$

In Stock, only 1 left!

0

9

Gravely 07500031

GROMMET, RUBBER

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 09257600

BRKT, AIR CLEANER MOUNT

$87.99

$

In Stock, only 1 left!

0

11

Gravely 06200132

@BLT-RDHDSQNK .50-13X4.50 G5 YWZC
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

12

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

14

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

16

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

17

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 05968600

BLT-HEX .50-20X1.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

20

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

22

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

24

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

26

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

27

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

29

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

32

Gravely 04557551

WLDMT, DIESEL BELT FINGER

$90.99

$

Usually ships in 4-12 days

0

33

Gravely 09217051

WMT, IDLER ARM GROUND
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0
