992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Belts, Blades And Spindles Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

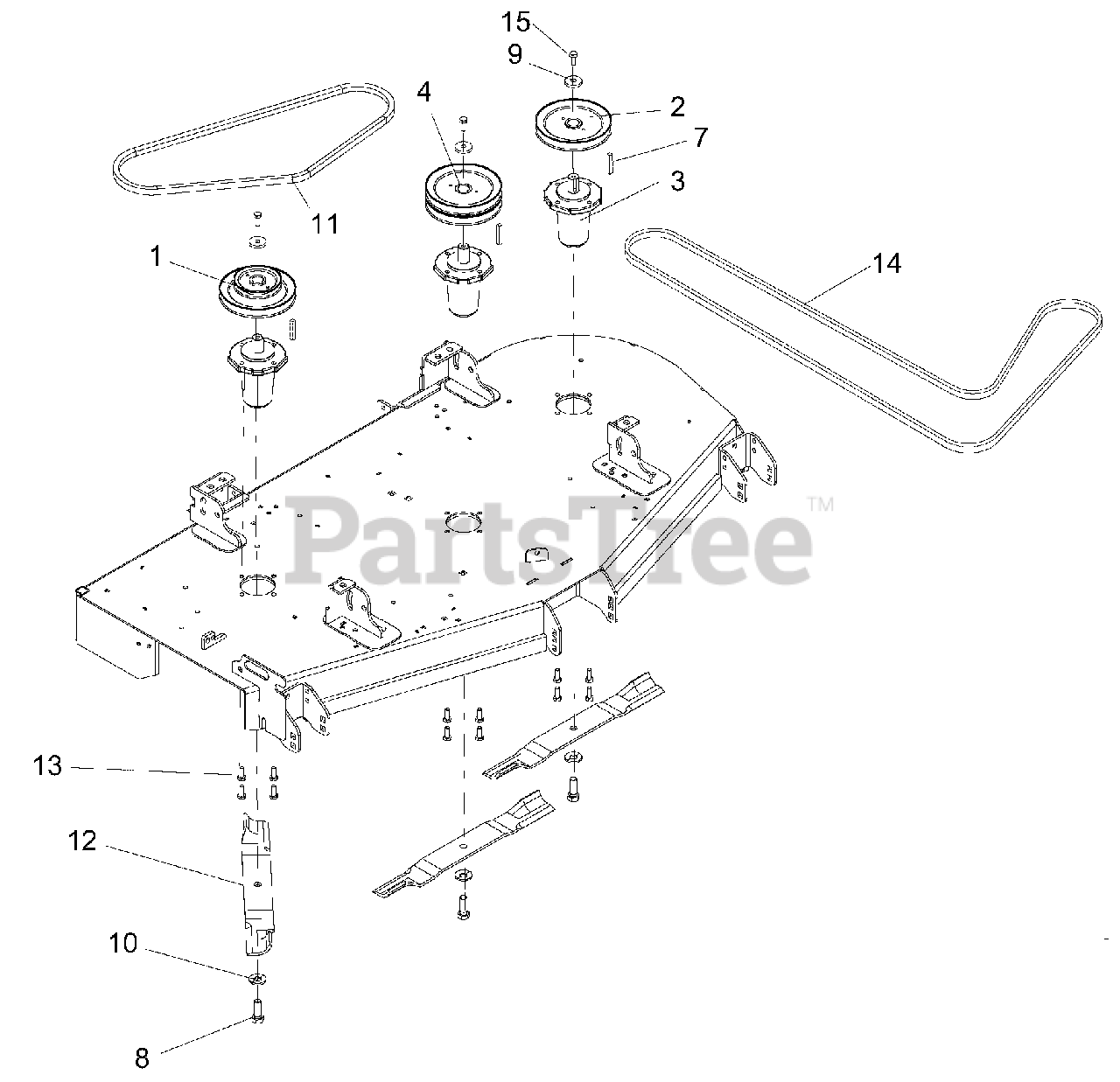

Belts, Blades And Spindles Parts Diagram

  • Title

1

Gravely 07340400

PULLEY, DOUBLE-1" ID X 6.75" OD (992236)

Note: (992236)

$64.99

$

In Stock, Qty 13

0

Gravely 07338067

SHEAVE, DOUBLE 1.00"ID X 8.25" (992240)
(Superseded to 59217500)

Note: (992240)

$118.99

$

Usually ships in 4-12 days

0

2

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD (992236)
(Superseded to 59211600)

Note: (992236)

$78.99

$

Usually ships in 4-12 days

0

Gravely 07337767

SHEAVE, SINGLE 1.00" ID X 8.25" (992240)
(Superseded to 07337700)

Note: (992240)

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 59215400

ASSEMBLY, MAINTENANCE FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, only 1 left!

0

4

Gravely 07328867

PULLEY, DOUBLE 1"ID X 6.75"OD (992236)
(Superseded to 59211500)

Note: (992236)

$85.99

$

Usually ships in 4-12 days

0

Gravely 07337667

PULLEY, DOUBLE 1"ID X 8.25"OD (992240)
(Superseded to 07337600)

Note: (992240)

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 19

0

8

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, only 3 left!

0

10

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, Qty 20+

0

11

Gravely 07200038

BELT, B 63.00 RAW COGGED (992236)

Note: (992236)

$66.99

$

In Stock, Qty 15

0

Gravely 07200039

V-BELT, B-RAW COGGED (992240)

Note: (992240)

$74.99

$

Usually ships in 4-12 days

0

12

Gravely 09081200

BLADE, MOWER 60" (992236)

Note: (992236)

$29.99

$

In Stock, Qty 20+

0

Gravely 09290500

BLADE, MOWER 72" (992240)

Note: (992240)

$36.99

$

In Stock, Qty 20+

0

13

Gravely 05900013

BOLT, HEX .38-16 X 1.0 GRADE 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 07200619

HEX BELT, BB-WRAPPED CLUTCHING (992236)

Note: (992236)

$182.99

$

In Stock, only 1 left!

0

Gravely 07200620

HEX BELT, BB-WRAPPED CLUTCHING (992240)

Note: (992240)

$193.99

$

In Stock, only 2 left!

0

15

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0
