992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Deck Lift Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

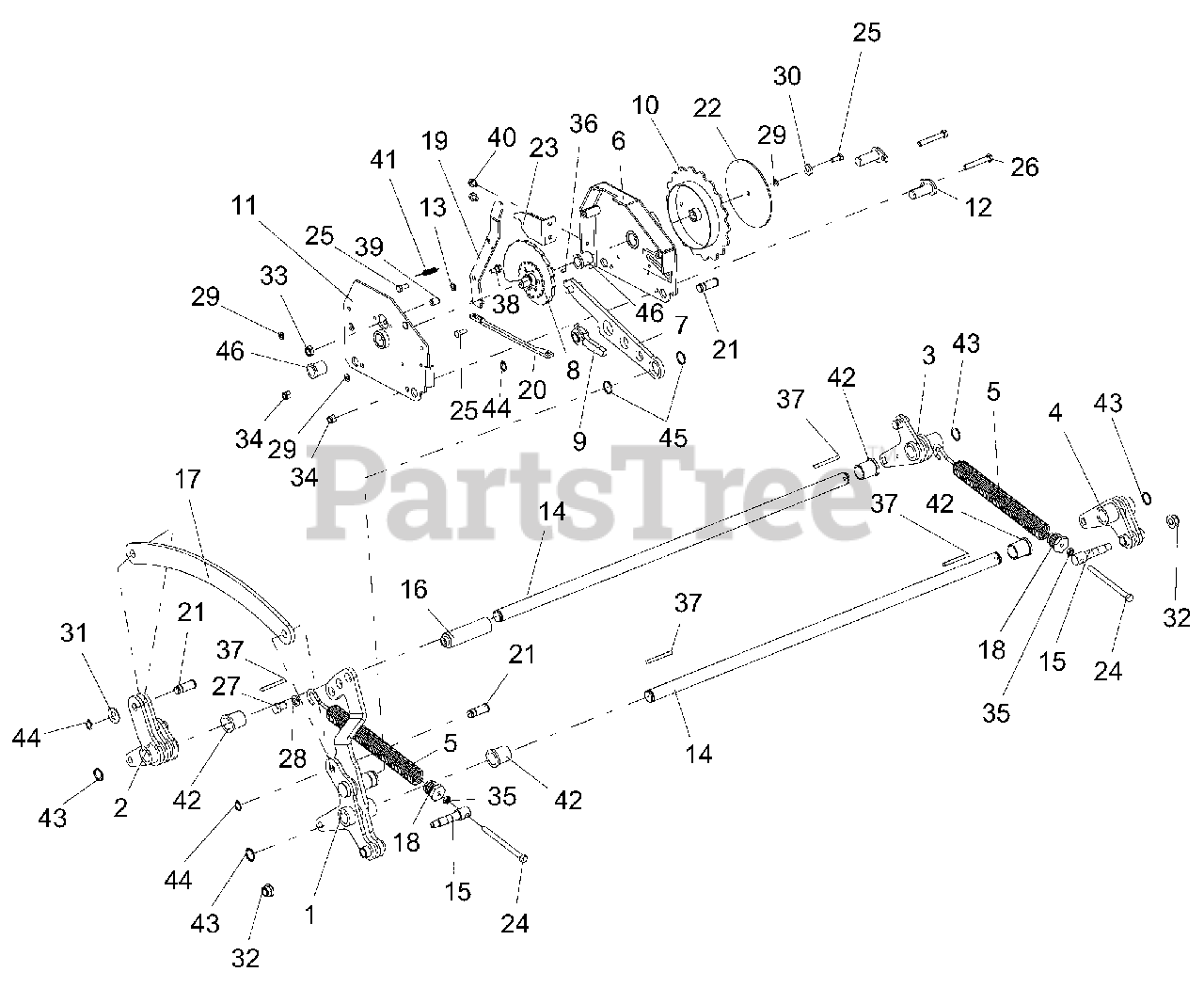

Deck Lift Parts Diagram

  • Title

1

Gravely 04367700

WLDMT, LIFT PEDAL

$262.99

$

Usually ships in 4-12 days

0

2

Gravely 04367800

WLDMT, LIF T

$87.99

$

Usually ships in 4-12 days

0

3

Gravely 04367900

WLDMT, LIF T

$70.99

$

Usually ships in 4-12 days

0

4

Gravely 04372900

WLDMT, LIF T

$116.99

$

Usually ships in 4-12 days

0

5

Gravely 08300530

SPRG, DECK LIFT

$52.99

$

Usually ships in 4-12 days

0

6

Gravely 04374753

WLDMT, HOC INNER

$158.99

$

Usually ships in 4-12 days

0

7

Gravely 04373651

WLDMT, LINK

$60.99

$

In Stock, only 1 left!

0

8

Gravely 04374900

WLDMT, CAM HOC

$219.99

$

In Stock, only 1 left!

0

9

Gravely 04375600

WLDMT, LOCK PAWL
(Superseded to 59226800)

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 04390200

WLDMT, DIAL, HOC
(Superseded to 59226100)

$155.99

$

Usually ships in 4-12 days

0

11

Gravely 04374853

WLDMT, HOC OUTER

$122.99

$

Usually ships in 4-12 days

0

12

Gravely 04375400

WLDMT, PIN

$18.99

$

Usually ships in 4-12 days

0

13

Gravely 01320200

WAVE, WASHER

$3.49

$

In Stock, Qty 7

0

14

Gravely 03971300

SHAFT, FRONT MOWER LIFT

$179.99

$

Usually ships in 4-12 days

0

15

Gravely 04373200

TRUNION, SPRG

$124.99

$

Usually ships in 4-12 days

0

16

Gravely 04373300

PEDAL, LIFT

$37.99

$

Usually ships in 4-12 days

0

17

Gravely 04373451

LIFT, LINK

$56.99

$

Usually ships in 4-12 days

0

18

Gravely 04374200

PLUG, SPRG

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 04390851

LEVER, TRANSPORT LOCK

$15.99

$

Usually ships in 4-12 days

0

20

Gravely 04390900

LINK, TRANSPORT LOCK
(Superseded to 59226800)

$45.99

$

Usually ships in 4-12 days

0

21

Gravely 04414200

PIN, CLEVIS .625 SNAP RING

$11.99

$

Usually ships in 4-12 days

0

22

Gravely 04415553

PLATE, DIAL-A-CUT

$

$

Not available

23

Gravely 04421253

GUARD, DECK LIFT

$6.99

$

Usually ships in 4-12 days

0

24

Gravely 05901506

BLT-HEX .38-16X5.0 GR5 FTD YWZ
(Superseded to 05901923)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

26

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 05971800

BLT-HEX .50-13X.75 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

28

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

29

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

31

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 06529300

NUT, 1/2-13 JAM GR5 y
(Superseded to 06500911)

$1.49

$

In Stock, Qty 17

0

34

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

35

Gravely 06535900

NUT, 3/8-16 JAM GR5 Y
(Superseded to 06500910)

$0.99

$

In Stock, Qty 11

0

36

Gravely 06600215

KEY-SQ .188X.188X.375

$2.49

$

In Stock, only 2 left!

0

37

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$5.99

$

In Stock, Qty 7

0

38

Gravely 07001703

BOLT, SHLDR .38-16 x .437 HEX YZ

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$9.49

$

Usually ships in 4-12 days

0

40

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 08300533

SPRING, EXT

$14.99

$

Usually ships in 4-12 days

0

42

Gravely 05500934

BUSHING-FLANGE 1.00X1.25X1.50

$6.99

$

In Stock, Qty 20+

0

43

Gravely 05707300

RING-RETAINING-EXTERNAL 1.00X.078

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 05709200

RING-RETAINING-EXTERNAL .625X.050

$2.49

$

Usually ships in 4-12 days

0

45

Gravely 05700213

RING-RETAINING-EXTERNAL 1.25X.050

$2.49

$

Usually ships in 4-12 days

0

46

Gravely 00252126

BUSHING, .750 X 1.00 X .750

$11.99

$

Usually ships in 4-12 days

0
