992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Electrical Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

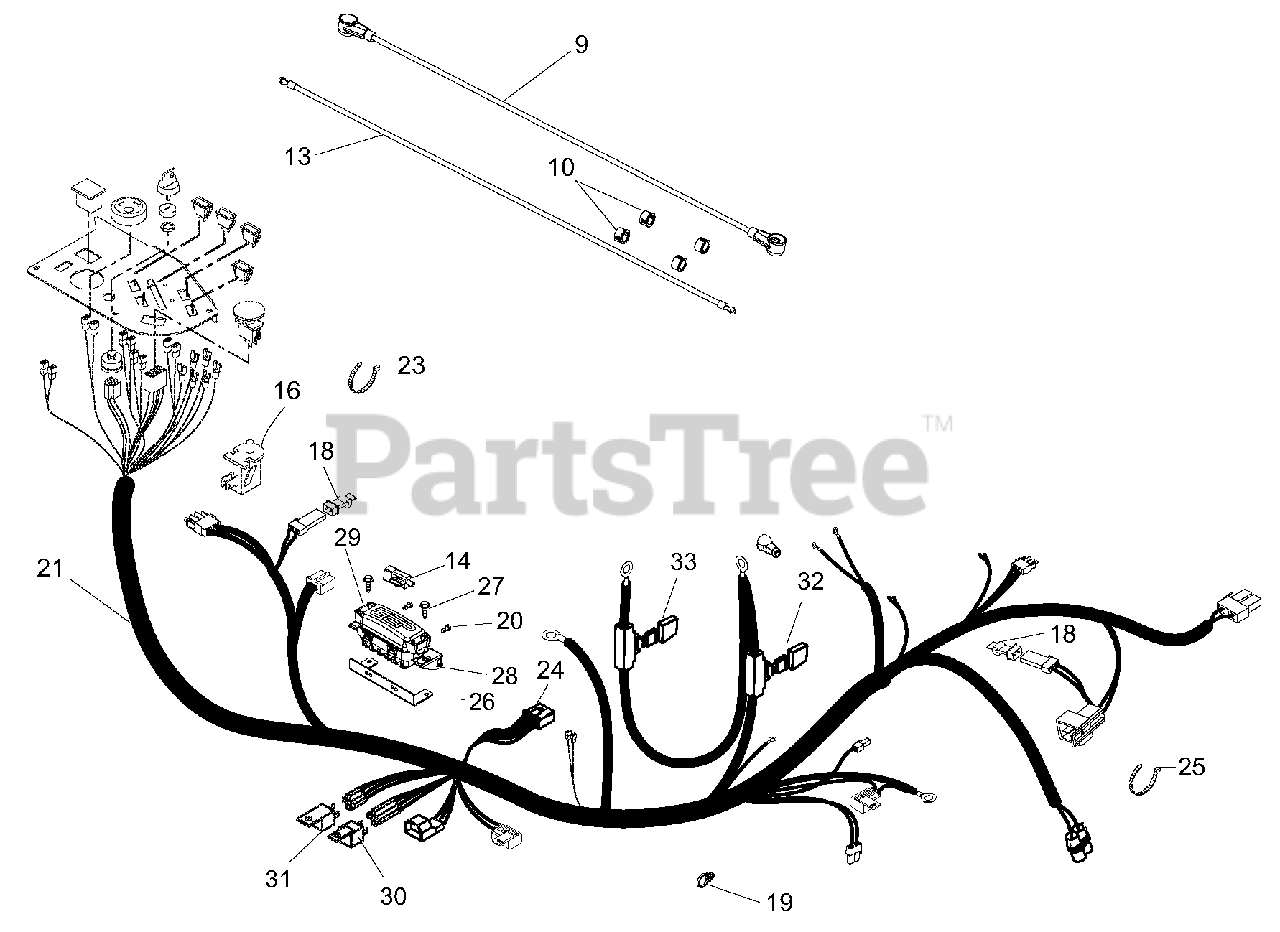

Electrical Parts Diagram

  • Title

9

Gravely 03287000

CABLE - POS BATT W/BOOTS 4X48

$32.99

$

Usually ships in 4-12 days

0

10

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

13

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$15.99

$

In Stock, Qty 8

0

16

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Included with Seat)

$9.99

$

In Stock, Qty 17

0

18

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: (Included with Harness)

$13.99

$

In Stock, Qty 20+

0

19

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 05972000

@BLT-HEX M6-1.0X25 YWZC

$

$

Not available

21

Gravely 04519300

WIRE HARNESS, PT400 DIESEL

$

$

Not available

23

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

24

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

Note: (included with Harness)

$73.99

$

In Stock, only 4 left!

0

25

Gravely 04003800

TIE WRAP

$

$

Not available

26

Gravely 04396353

FUSE HOLDER MOUNTING BRKT -RED

$

$

Not available

27

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 04504200

COVER, HARNESS FUSE/RELAY MOD

$29.99

$

Usually ships in 4-12 days

0

30

Gravely 21500004

RELAY, 70A

Note: (included with Harness)

$18.99

$

Usually ships in 4-12 days

0

31

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (included with Harness)

$25.99

$

In Stock, Qty 20+

0

32

Gravely 21500005

FUSE, 40A SLOW-BURN MAXI

Note: (included with Harness)

$

$

Not available

33

Gravely 21500006

FUSE, 70A MAXI

$

$

Not available

34

Glow Plug Timer Module (included w/engine)

Note: (included w/engine)

$

$

Not available
