992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Radiator - Cover Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

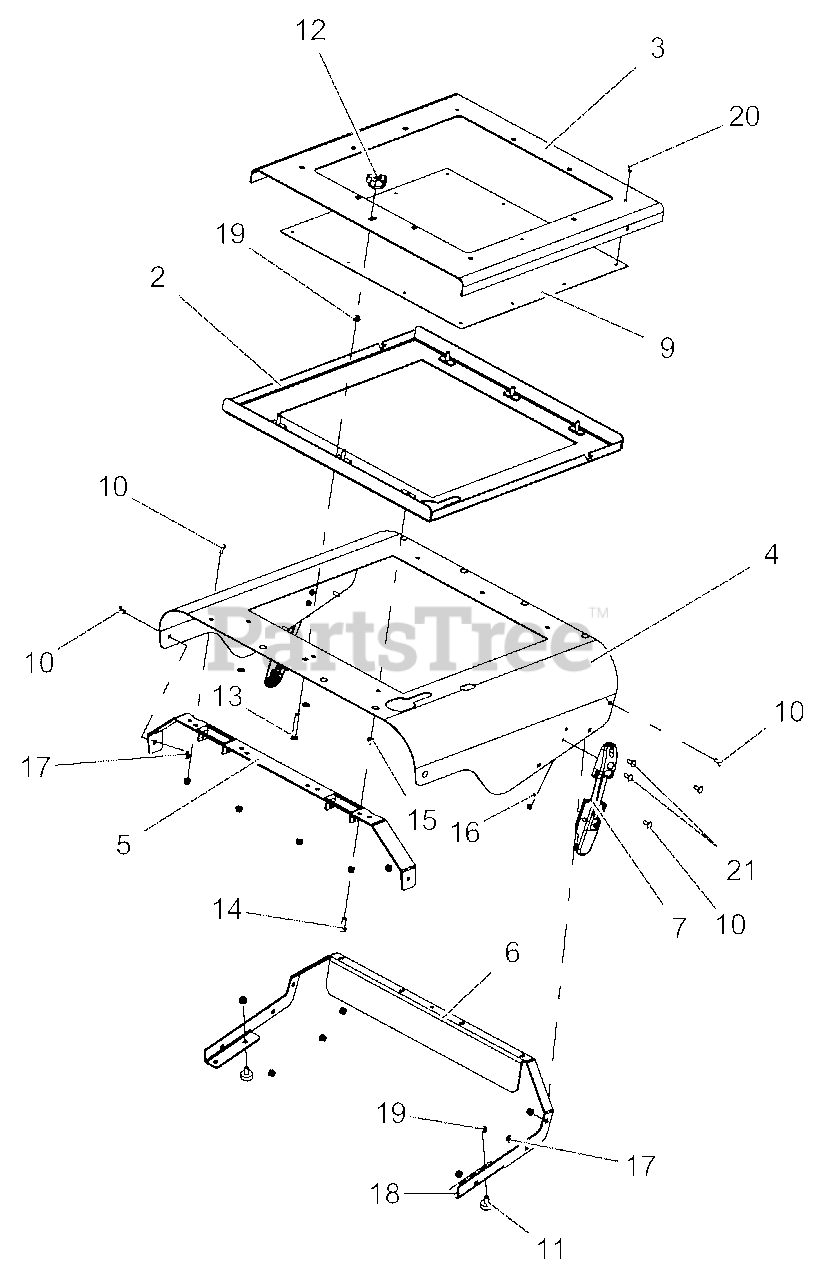

Radiator - Cover Parts Diagram

  • Title

2

Gravely 04437151

WLDMT, HOOD /SCREEN/RAD MOUNT-BLACK
(Superseded to 04729251)

$

$

Not available

3

Gravely 04437353

WLDMT, SCRN MOUNT-RED

$163.99

$

Usually ships in 4-12 days

0

4

Gravely 04437253

HOOD, PT400 DIESEL

$

$

Not available

5

04505351

SUPPORT, DIESEL HOOD FRONT

$

$

Not available

6

04505451

SUPPORT, RADIATOR HOOD REAR

$

$

Not available

7

Gravely 04508800

LATCH, O/C RUBBER
(Superseded to 59219900)

$775.99

$

Usually ships in 4-12 days

0

9

Gravely 04512551

SCRN, DIESEL RADIATOR

$62.99

$

Usually ships in 4-12 days

0

10

Gravely 06200214

BLT, RDHDSQNK .25-20 X .625 YWZC RED HEAD

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

12

Gravely 07534800

KNOB, CLAMPING

$7.99

$

In Stock, Qty 13

0

13

Gravely 06221600

@BLT-RDHDSQNK .31-18X2.25 G5 Y
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

15

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536000

@NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

17

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

18

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

19

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

20

Gravely 06800107

RVT-POP .187x.375 (#66) BLACK

Note: (#66) BLACK

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0
