992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Tire Assembly Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

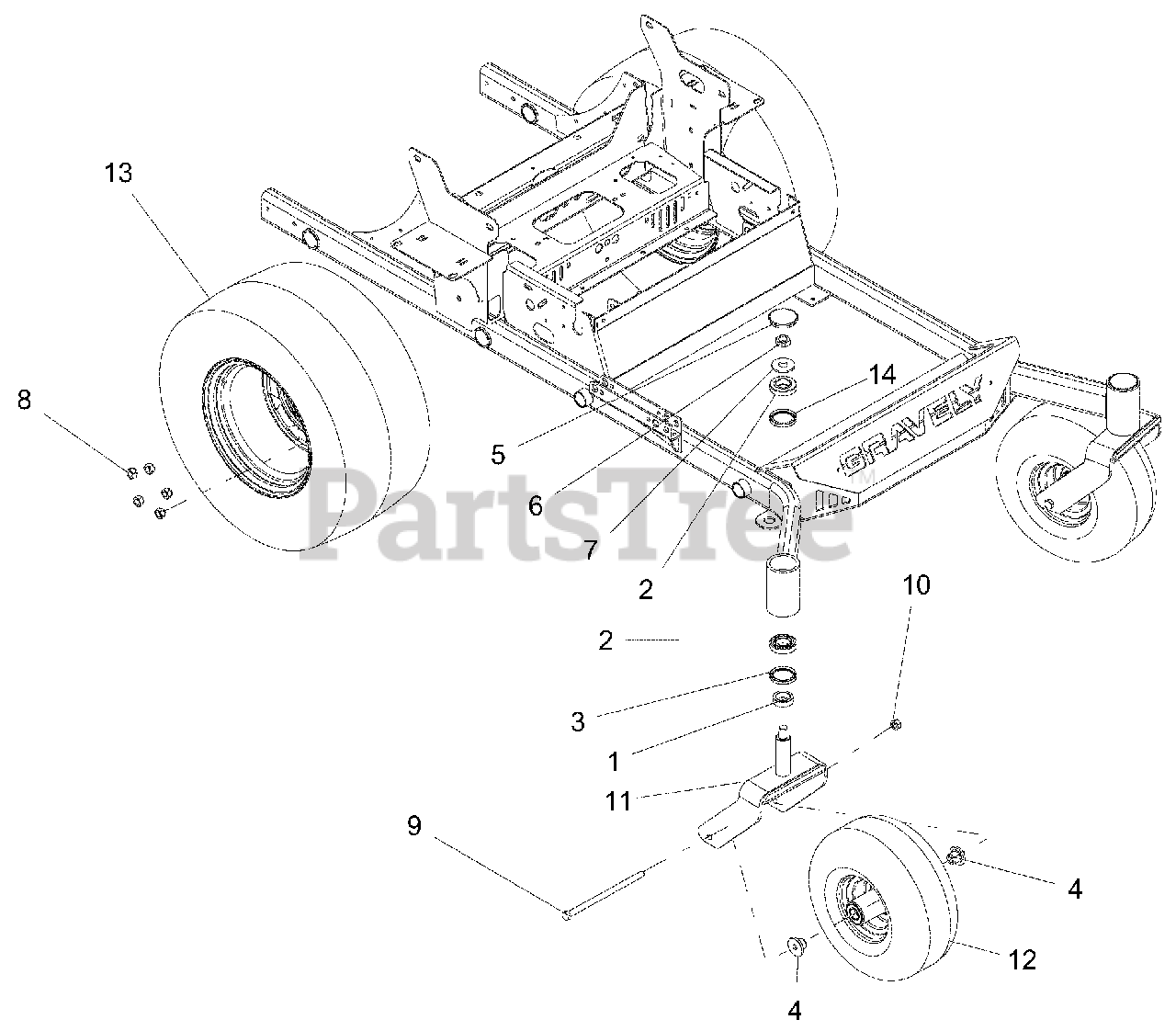

Tire Assembly Parts Diagram

  • Title

1

Gravely 03760300

SPCR, 1.258ID X 1.750OD X.550

$36.99

$

Usually ships in 4-12 days

0

2

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 14

0

3

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$13.99

$

In Stock, Qty 16

0

4

Gravely 00675300

SPACER, FRONT WHEEL

$9.99

$

In Stock, Qty 20+

0

5

Gravely 03925900

CAP, DUST

$12.99

$

In Stock, Qty 6

0

6

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.99

$

In Stock, Qty 8

0

7

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$5.49

$

In Stock, Qty 8

0

8

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 03924453

CASTER FORK WMT - RED

$192.99

$

In Stock, only 3 left!

0

12

Gravely 07100930

TIRE/WHEEL, 15X6-6 SEMI-PNEU
(Superseded to 59219100)

$267.99

$

In Stock, only 2 left!

0

13

Gravely 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

Note: (992236)

$314.99

$

Usually ships in 4-12 days

0

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

Note: (992236)

$211.99

$

Usually ships in 4-12 days

0

Gravely 07100810

TIRE/WHEEL ASSM, 23X10-12
(Superseded to 07101116)

Note: (992240)

$333.99

$

Usually ships in 4-12 days

0

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

Note: (992240)

$214.99

$

Usually ships in 4-12 days

0

14

Gravely 05404700

BRG-CONE 1.25X.66

$23.99

$

In Stock, Qty 16

0
