992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 020000 - 029999) Radiator-Cover Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

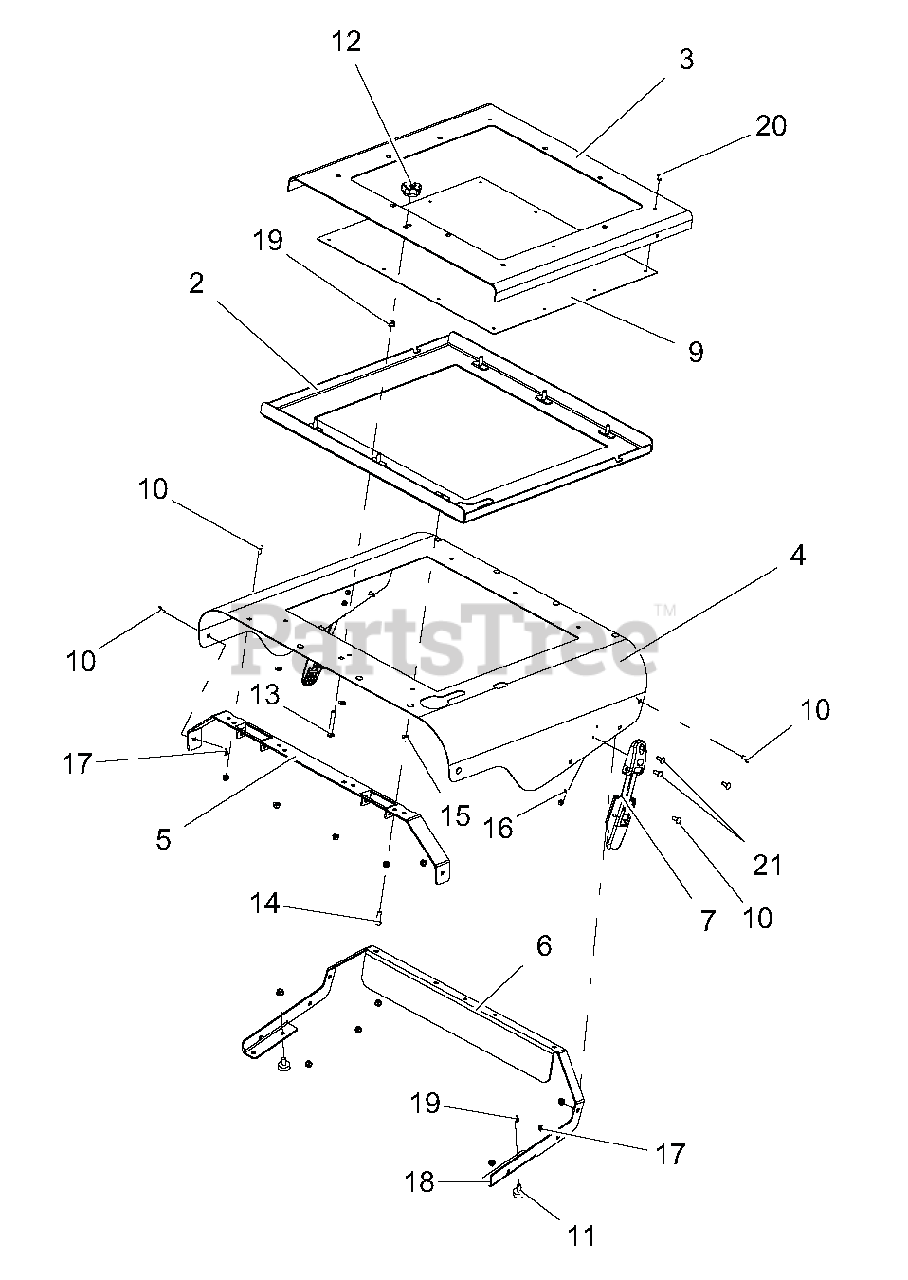

Radiator-Cover Parts Diagram

  • Title

2

Gravely 04437151

WDMT, HOOD/SCREEN/RADIATOR MNT
(Superseded to 04729251)

$

$

Not available

3

Gravely 04437353

BRKT, SCREEN HOUSING

$

$

Not available

4

Gravely 04437253

HOOD, PT-400 DIESEL HOOD-RED

$

$

Not available

5

Gravely 04505300

SUPPORT, DIESEL HOOD FRONT

$

$

Not available

6

Gravely 04505400

SUPPORT, DIESEL HOOD REAR

$

$

Not available

7

Gravely 04508800

LATCH, OVERCENTER RUBBER
(Superseded to 59219900)

$791.99

$

Usually ships in 4-12 days

0

9

Gravely 04512551

SCREEN, RADIATOR, DIESEL

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 06200214

BLT-RDHDSQNK .25-20 X .625 RED

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

12

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

14

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

Note: (#66) BLACK

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0
