992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 040000 - 049999) Fuel System Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

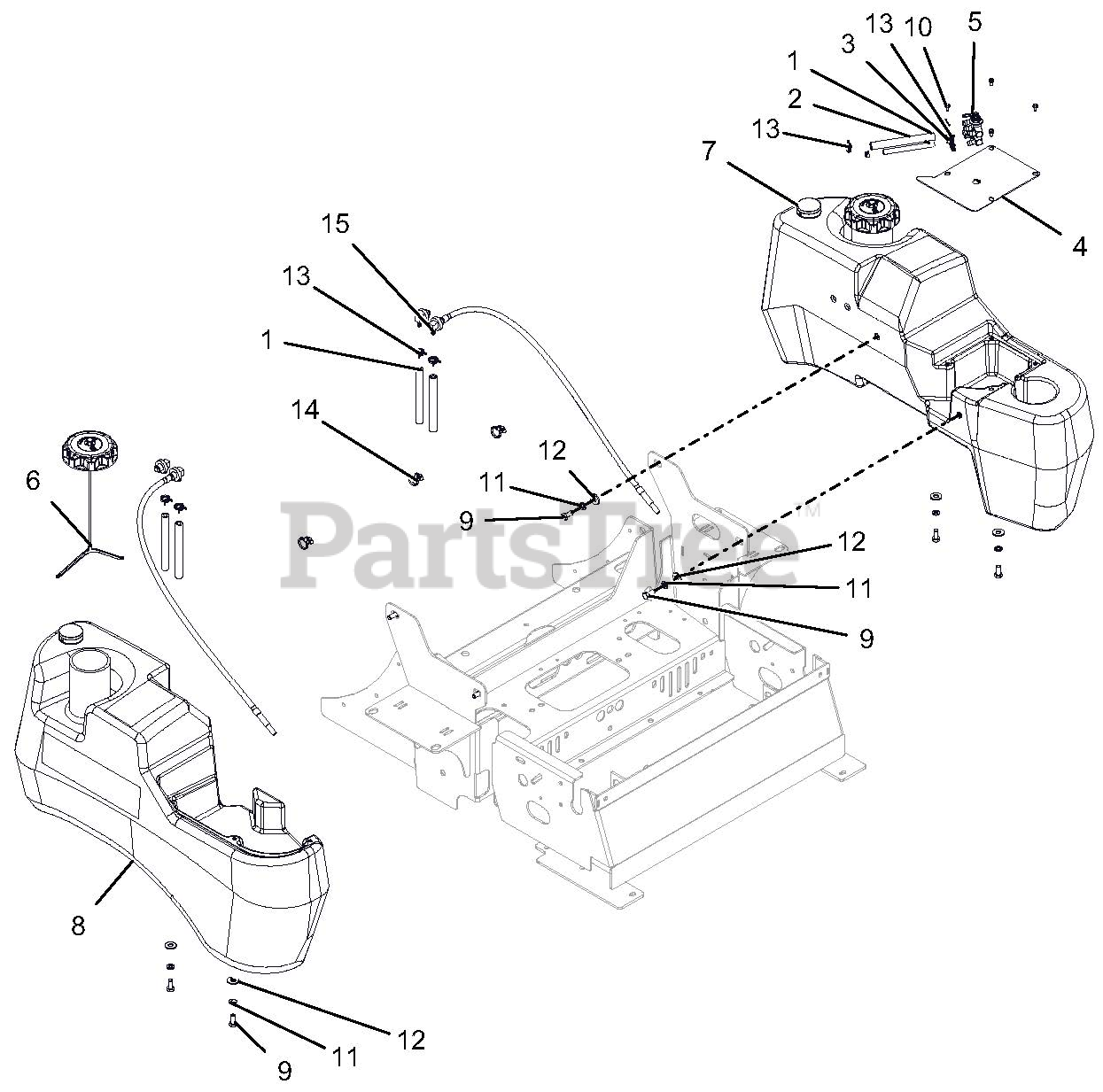

Fuel System Parts Diagram

  • Title

1

Gravely 00922600

HOSE, .31 ID X

$0.99

$

Usually ships in 4-12 days

0

2

Gravely 03375900

HOSE, .188 ID LOW-PERM X 60.0 LG - ENGINE RETURN TO VALVE

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 04396053

PLATE, FUEL VALVE MOUNTING-RED

$31.99

$

Usually ships in 4-12 days

0

5

Gravely 04440800

VALVE, DIESEL FUEL PT-400

$175.99

$

Usually ships in 4-12 days

0

6

Gravely 04589300

CAP, FUEL 3.50" DIESEL YELLOW

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 04722700

ASSY-LH LARGE FUEL TANK W/MECH GAUGE-DIESEL

$448.99

$

Usually ships in 4-12 days

0

8

Gravely 04722800

ASSY-RH LARGE FUEL TANK W/MECH GAUGE-DIESEL

$406.99

$

Usually ships in 4-12 days

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

10

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 9

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

13

Gravely 06947900

HOSE, CLAMP DOUBLE WIRE

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 07500040

CABLE TIE W/ TREE, .25 HOLE

$3.99

$

In Stock, only 1 left!

0

15

Gravely 59207000

FUEL, LINE KIT DIESEL

$82.99

$

Usually ships in 4-12 days

0
