992237 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Propane (SN: 030000 - 039999) Decks, Belts, Blades, And Spindles - 60 Inch Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Propane

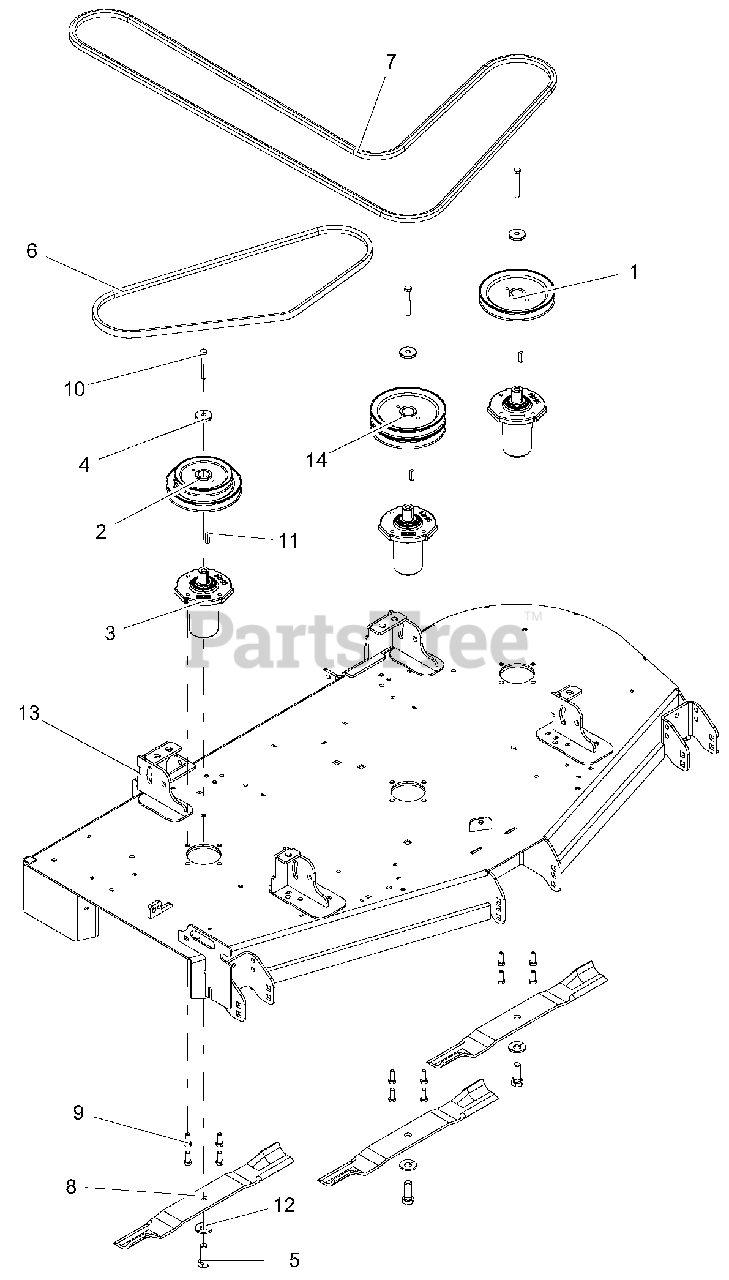

Decks, Belts, Blades, And Spindles - 60 Inch Parts Diagram

  • Title

1

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$88.99

$

In Stock, Qty 20+

0

2

Gravely 07340400

PULLEY, DBL-1"IDX6.75"&5.25"OD

$75.99

$

In Stock, Qty 14

0

3

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

Note: 59215400 Assembly includes items: 3, 4, 5, 9, 10 and 12.

$361.99

$

In Stock, Qty 20+

0

4

Gravely 04530500

RETAINER, SHEAVE

$9.99

$

In Stock, Qty 20+

0

5

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 07200038

V-BELT, B-COGGED

$71.99

$

In Stock, Qty 20+

0

7

Gravely 07200510

HEX BELT, BB-WRAPPED

$158.99

$

In Stock, Qty 17

0

8

Gravely 09081200

BLADE, MOWER (20.50")

$30.99

$

In Stock, Qty 20+

0

9

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

13

Gravely 59220800

KIT-60" MOWER DCK W/SAFE DECAL

$1240.99

$

Usually ships in 4-12 days

0

14

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$97.99

$

In Stock, Qty 20+

0
