992237 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Propane (SN: 050000 & Above) Fuel System Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Propane

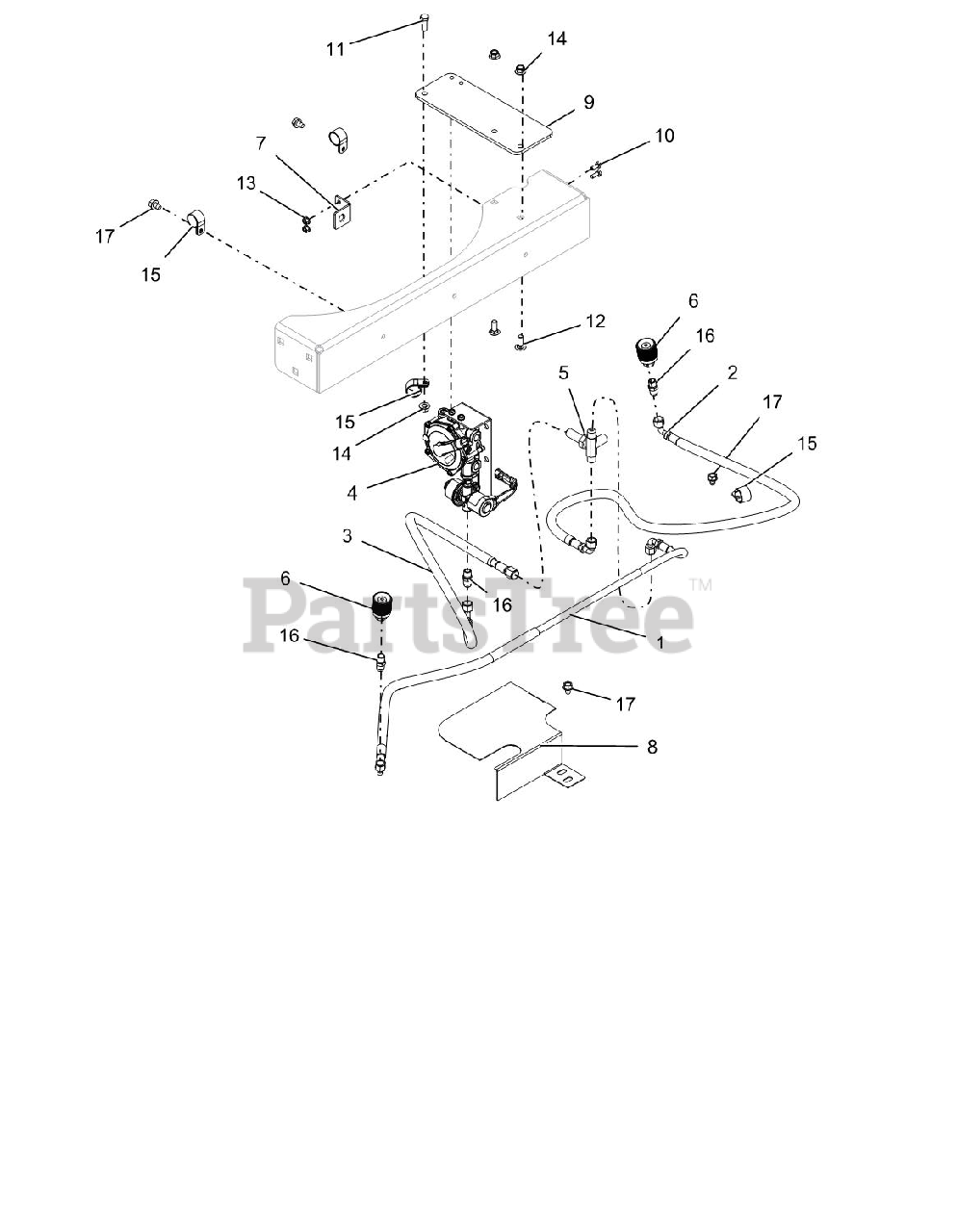

Fuel System Parts Diagram

  • Title

1

Gravely 04539000

HOSE, LPG SS25UL-6-4-6-45"

$164.99

$

Usually ships in 4-12 days

0

2

Gravely 04539200

HOSE, LPG SS25UL 6-4-6-45"

$94.99

$

Usually ships in 4-12 days

0

3

Gravely 04575800

HOSE, LPG SS25UL 6-4-6-30.00

$47.99

$

Usually ships in 4-12 days

0

4

--------

SEE ENGINE SERVICE PARTS

$

$

Not available

5

Gravely 03877900

VALVE, SHERWOOD T PV3866 LPG

$287.99

$

Usually ships in 4-12 days

0

6

Gravely 04215300

FTG, LPG TANK COUPLER -LH THRD

$91.99

$

Usually ships in 4-12 days

0

7

Gravely 04529653

BRKT, TEE VALVE- MOUNTING

$

$

Not available

8

Gravely 04540551

GUARD, LP-MUFFLER-BLACK

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 04576051

PLATE, REGULATOR MOUNT, EG

$

$

Not available

10

Gravely 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

13

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 07001711

FTG, ADPTR 1/4MNPT X 5/8MJIC

$

$

Not available

17

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0
