992238 (Pro-Turn 466) - Gravely Pro-Turn 66" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Engine Parts Diagram

Pro-Turn 66" Zero-Turn Mower, Kawasaki

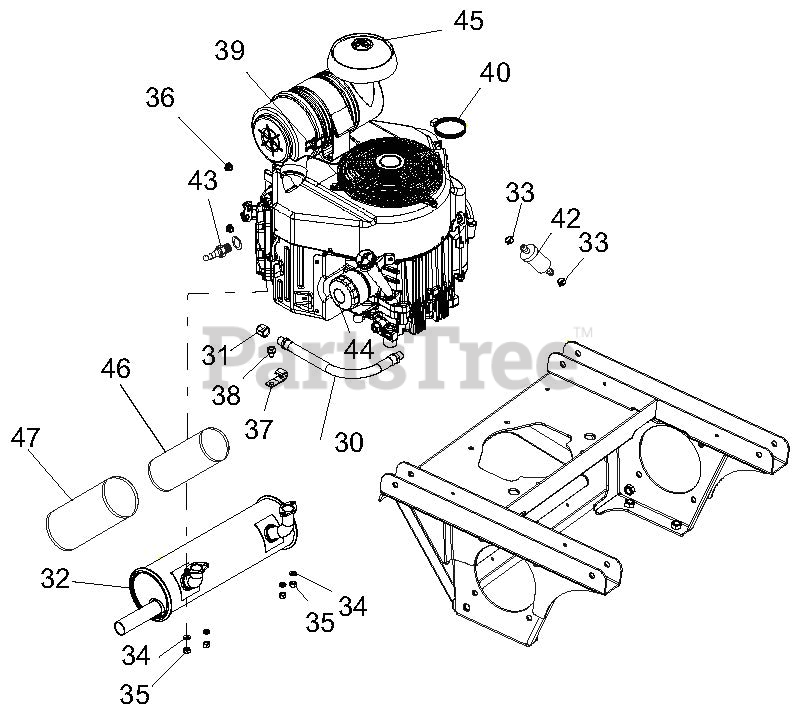

Engine Parts Diagram

  • Title

30

Gravely 03873100

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 07001829)

Note: (992230, 232, 234, 235, 238, 239)

$18.99

$

Usually ships in 4-12 days

0

30

Gravely 04058500

HOSE, HYD .38-14-OK M6N0-M6N0
(Superseded to 05155100)

Note: (992231, 233)

$21.99

$

Usually ships in 4-12 days

0

31

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

32

Gravely 03911000

MUFFLER, 27-31 FX KAW
(Superseded to 09386000)

Note: (992230, 232, 234, 238)

$188.99

$

In Stock, Qty 5

0

32

Gravely 04263000

MUFFLER, 34HP KAW VERT

Note: (992235, 239)

$188.99

$

Usually ships in 4-12 days

0

32

Gravely 04262200

MUFFLER, KOHLER EFI

Note: (992231, 233)

$358.99

$

Usually ships in 4-12 days

0

33

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

36

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

39

Gravely 08200723

ENGINE, KAWASAKI FX751

Note: (992230, 232)

$

$

Not available

39

Gravely 08200628

ENGINE, KOHLER 747CC EFI

Note: (992231, 233)

$

$

Not available

39

Gravely 08200724

ENGINE, KAWASAKI FX850

Note: (992234, 238)

$

$

Not available

39

Gravely 08200624

ENGINE, KAWASAKI FX921

Note: (992235, 239)

$

$

Not available

40

Gravely 06900339

CLAMP, HOSE 2.75 DIA

Note: (992230, 232, 234, 235, 238, 239)

$12.99

$

Usually ships in 4-12 days

0

42

Gravely 21538400

FUEL FILTER
(Superseded to 21573800)

Note: (992230, 232, 234, 235, 238, 239)

$15.99

$

Usually ships in 4-12 days

0

42

Gravely 21547528

FUEL FILTER

Note: (992231, 233)

$15.99

$

In Stock, only 4 left!

0

43

Gravely 21536100

SPARK PLUG

Note: (992230, 232, 234, 235, 238, 239)

$3.99

$

In Stock, Qty 20+

0

43

Gravely 21544000

SPARK PLUG

Note: (992231, 233)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 21538400

OIL FILTER
(Superseded to 21573800)

Note: (992230, 232, 234, 235, 238, 239)

$15.99

$

Usually ships in 4-12 days

0

44

Gravely 21397200

OIL FILTER
(Superseded to 20715100)

Note: (992231, 233)

$21.99

$

In Stock, Qty 20+

0

45

Gravely 09408700

CAP, AIR CLEANER INTAKE

$58.99

$

In Stock, Qty 5

0

46

Gravely 21545300

ELEMENT, INNER SAFETY

Note: (992230, 232, 234, 235, 238, 239)

$48.99

$

In Stock, only 4 left!

0

46

Gravely 21536900

ELEMENT, INNER SAFETY

Note: (992231, 233)

$29.99

$

In Stock, only 4 left!

0

47

Gravely 21545400

ELEMENT, OUTER PRIMARY

Note: (992230, 232, 234, 235, 238, 239)

$36.99

$

In Stock, Qty 20+

0

47

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: (992231, 233)

$28.99

$

In Stock, Qty 20+

0
