992239 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Transmission Subframe Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

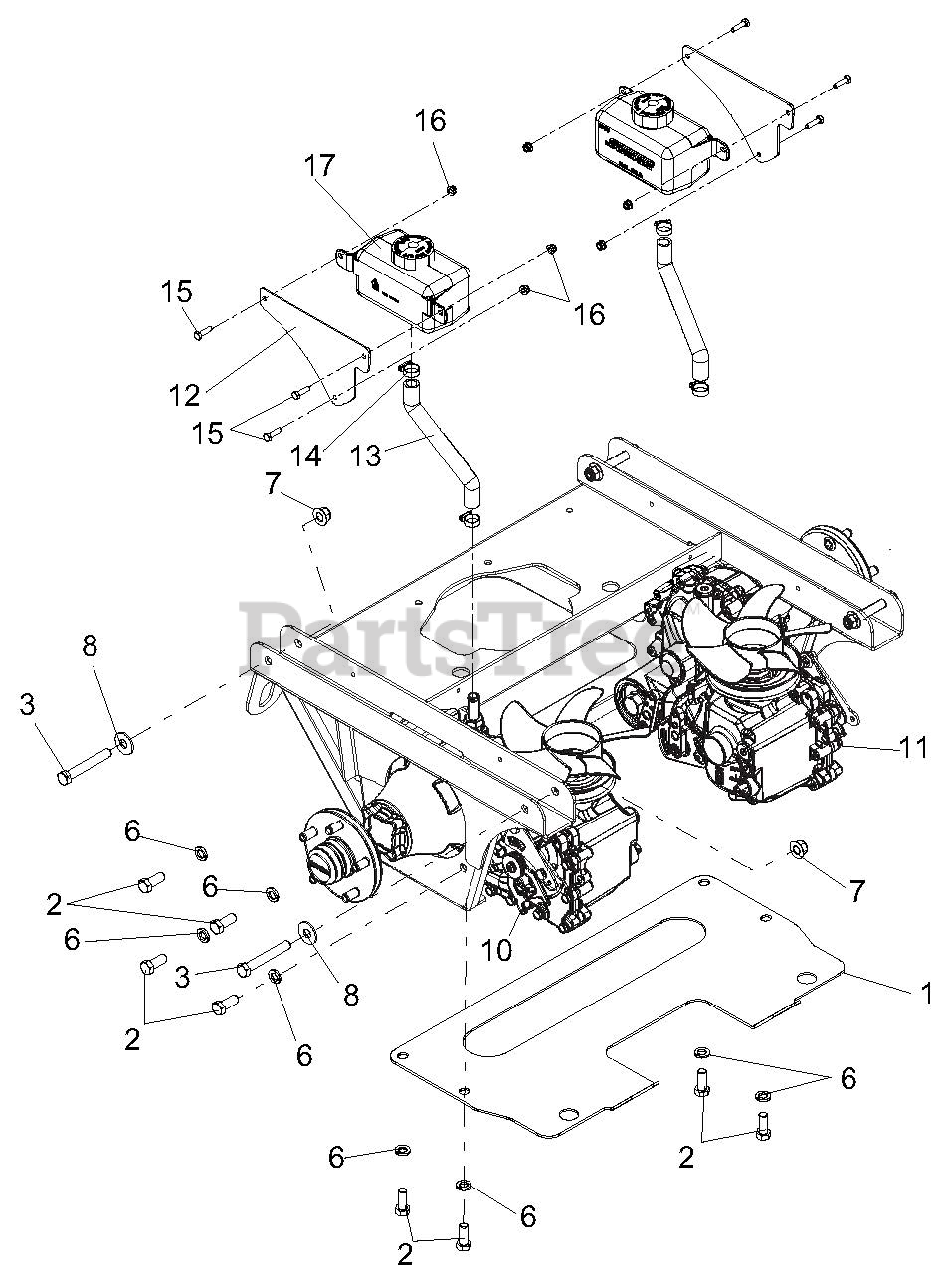

Transmission Subframe Parts Diagram

  • Title

1

Gravely 04524553

PLATE, TRANSMISSION SKID

$81.99

$

Usually ships in 4-12 days

0

2

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 12

0

3

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, Qty 11

0

6

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

7

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 03935200

TRANS, R.H. HG ZT-5400

$2844.99

$

Usually ships in 4-12 days

0

11

Gravely 03935300

TRANS, LH HG ZT-5400

$2844.99

$

Usually ships in 4-12 days

0

12

Gravely 03918253

PLATE, HYDRO OVERFLOW TANK MTG

$19.99

$

In Stock, only 1 left!

0

13

Gravely 03986400

HOSE, HYDRO OVERFLOW

$17.99

$

In Stock, only 1 left!

0

14

Gravely 06923500

CLAMP, .88 DIA HOSE

$2.49

$

In Stock, Qty 6

0

15

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

16

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 03947000

TANK, HYD 1000ML

$35.99

$

In Stock, Qty 12

0
