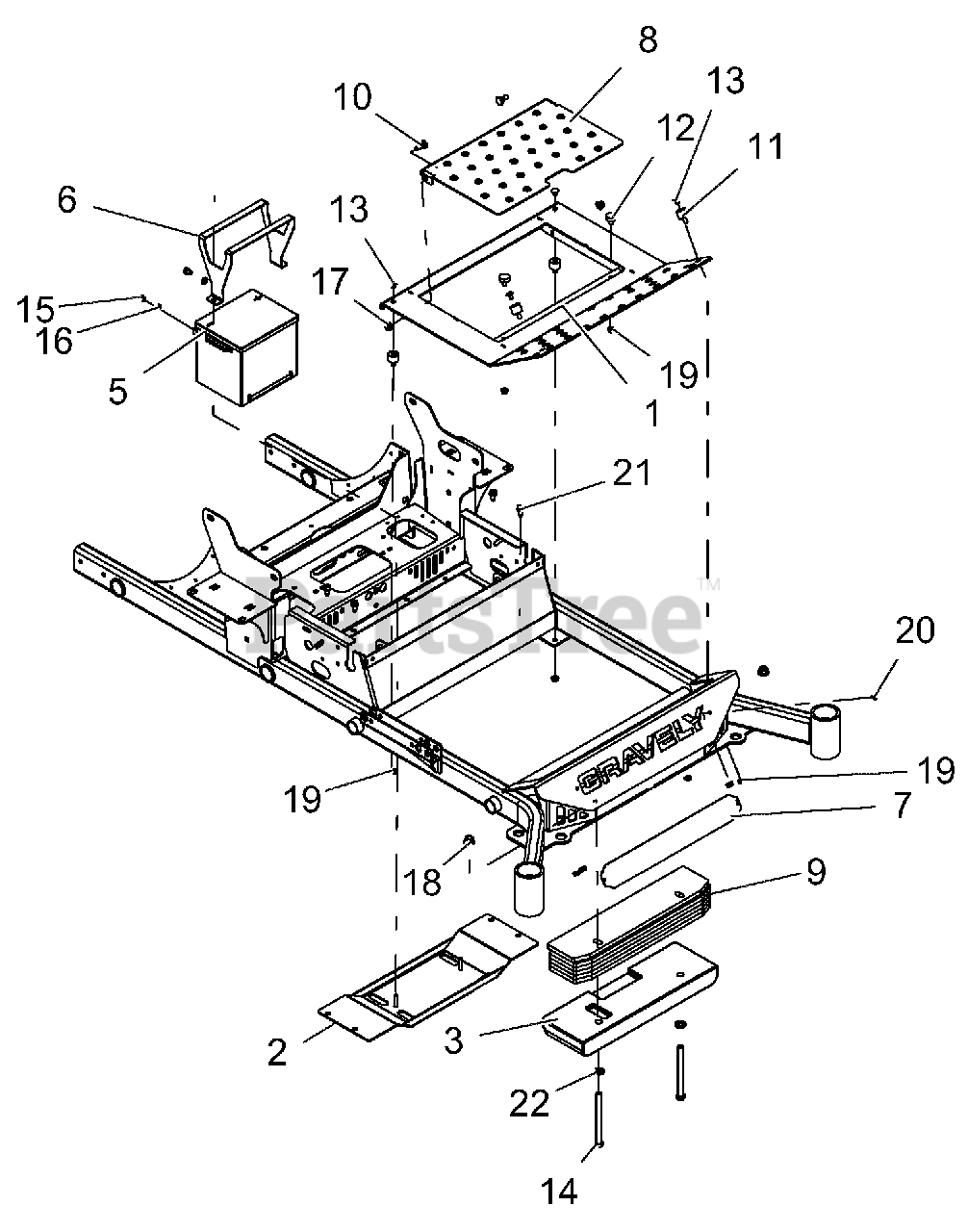

992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Battery, Wheights And Foot Plates Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

Battery, Wheights And Foot Plates Parts Diagram

  • Title

1

Gravely 04412353

WLDMT, FOOT PLATE-RED

$

$

Not available

2

Gravely 04420653

WLDMT, PT400 DIESEL BATTERY TRAY

$

$

Not available

3

Gravely 00172000

WEIGHT, CAST IRON

$303.99

$

Usually ships in 4-12 days

0

5

Gravely 04087300

BATTERY, GROUP 70, 540 CCA

$

$

Not available

6

Gravely 04089351

BRKT, BATTERY HOLD-DOWN

$73.99

$

Usually ships in 4-12 days

0

7

Gravely 04386551

PLATE, BUMPER LOGO BACKING-BLACK

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 04412253

PANEL, INSPECTION

$

$

Not available

9

Gravely 04422451

WEIGHT, COUNTER

$79.99

$

Usually ships in 4-12 days

0

10

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 10

0

11

Gravely 07500214

BUMPER, STUD MOUNTED W/FEMALE INSERT

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

13

Gravely 06222000

@BLT-RDHDSQNK .31-18X.50 G5 YWZC
(Superseded to 06200406)

$3.49

$

In Stock, Qty 15

0

14

Gravely 05961800

BLT-HEX .50-13X6.00 GR5 YWZC

$

$

Not available

15

Gravely 05967000

BLT-HEX .38-16X.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 3 left!

0
