992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Belt Covers Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

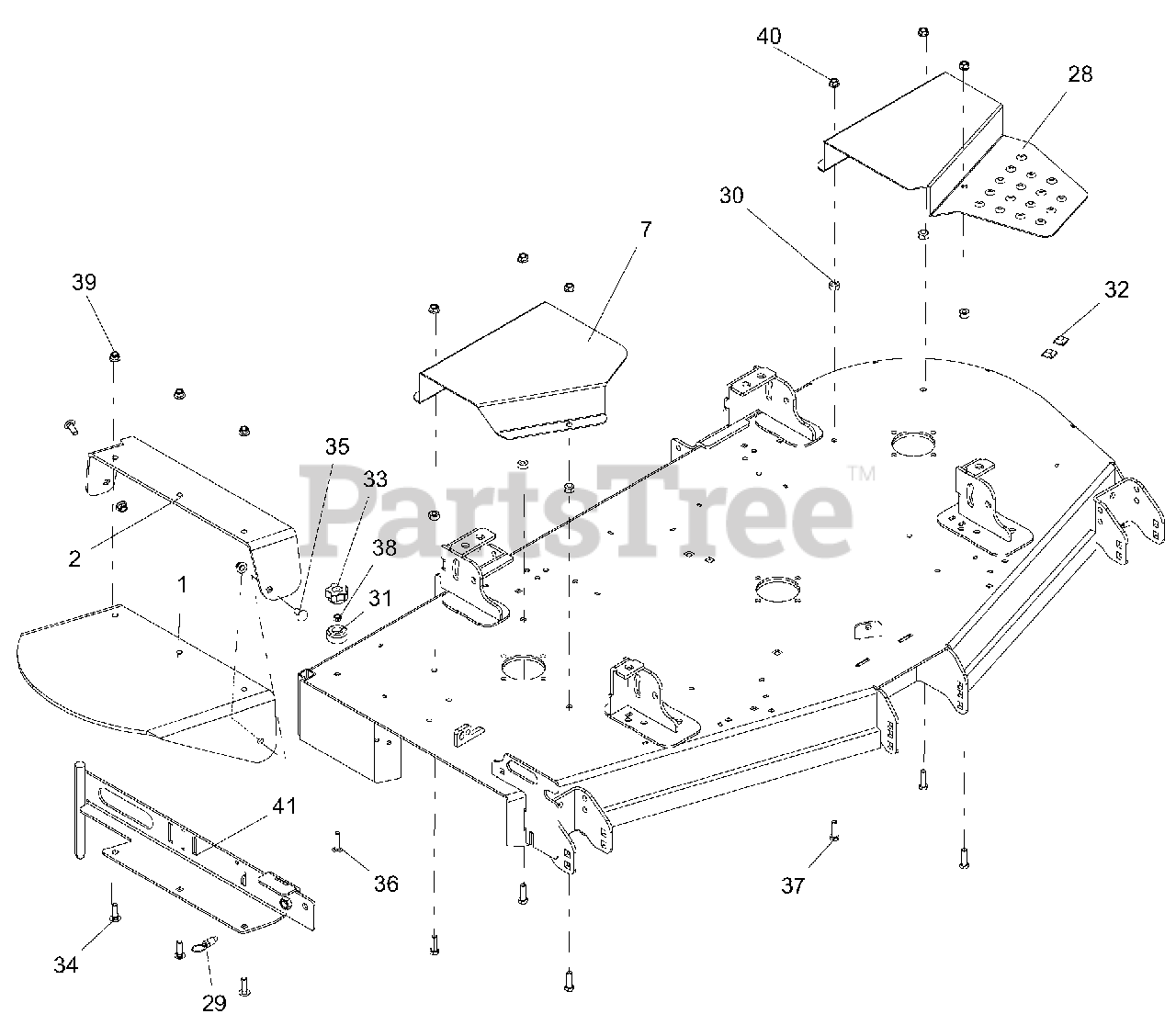

Belt Covers Parts Diagram

  • Title

1

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 8

0

2

Gravely 04551553

RUBBER DISCH CHUTE SUPPORT-RED

$105.99

$

Usually ships in 4-12 days

0

7

Gravely 03982253

60"-66" RH DECK BELT GUARD-RED

Note: (992236)

$58.99

$

Usually ships in 4-12 days

0

Gravely 04437453

72" RH DECK BELT GUARD - RED

Note: (992240)

$70.99

$

Usually ships in 4-12 days

0

28

Gravely 04411053

GUARD-60" LH DECK BELT W/STEP

Note: (992236)

$118.99

$

In Stock, only 2 left!

0

Gravely 04418553

GUARD-72" LH DECK BELT W/STEP

Note: (992240)

$148.99

$

Usually ships in 4-12 days

0

29

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

30

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

32

Gravely 07525100

STOP

$2.49

$

In Stock, only 3 left!

0

33

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

34

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 11

0

37

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

38

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 00980553

WMT, 52"-60" DISCH CHUTE MTG
(Superseded to 04727953)

Note: (992236)

$131.99

$

In Stock, only 1 left!

0

Gravely 00980653

WMT, 66"-72" DISCH CHUTE MTG

Note: (992240)

$168.99

$

Usually ships in 4-12 days

0
