992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Deck And Deck Mount Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

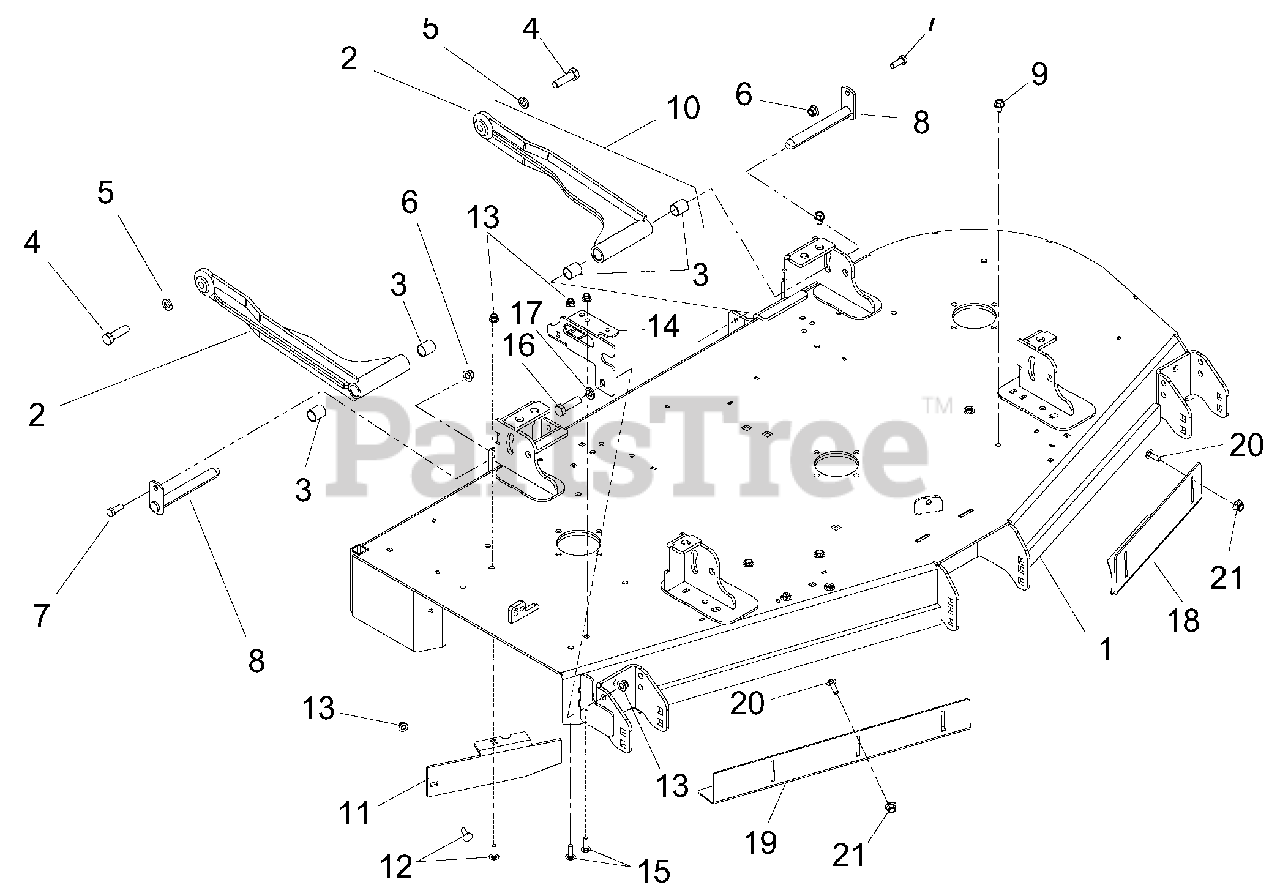

Deck And Deck Mount Parts Diagram

  • Title

1

Gravely 04547553

WMT, 60in SIDE DISCH DECK (992236)
(Superseded to 59220800)

Note: (992236)

$1187.99

$

Usually ships in 4-12 days

0

Gravely 04531053

WMT, 72in SIDE DISCH DECK (992240)

Note: (992240)

$

$

Not available

2

Gravely 03837151

WMT, DECK STABILIZER ARM
(Superseded to 05253251)

$151.99

$

Usually ships in 4-12 days

0

3

Gravely 05435900

BRG, .75 X .875 X 1.00

$6.99

$

In Stock, Qty 20+

0

4

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 19

0

5

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 09238900

WLDMT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 6

0

9

Gravely 07412900

SCR-TAP .38-16X.50 HWH
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0

10

Gravely 03985100

PUSH ARM ASSEMBLY (INCLUDES ITEMS 2 AND 3)
(Superseded to 59218600)

Note: (INCLUDES ITEMS 2 AND 3)

$139.99

$

Usually ships in 4-12 days

0

11

Gravely 00374153

60" BAFFLE (992236)

Note: (992236)

$29.99

$

In Stock, only 4 left!

0

Gravely 00442453

72" BAFFLE (992240)

Note: (992240)

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04554153

BRKT, BAGGER REMOVEABLE

$

$

Not available

15

Gravely 06200007

BLT-RDHDSHSQNK .31-18X1.00 G5YWZC
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

17

Gravely 06435900

WSHR-FL-STL .438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 00952651

60" LH VACUUM BAFFLE - BLK (992236)
(Superseded to 05252051)

Note: (992236)

$44.99

$

Usually ships in 4-12 days

0

Gravely 00955951

72" LH VACUUM BAFFLE - BLK (992240)

Note: (992240)

$

$

Not available

19

Gravely 00952551

60" RH VACUUM BAFFLE - BLK (992236)
(Superseded to 05251951)

Note: (992236)

$52.99

$

In Stock, only 4 left!

0

Gravely 00955851

72" RH VACUUM BAFFLE - BLK (992240)

Note: (992240)

$

$

Not available

20

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0
