992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Radiator Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

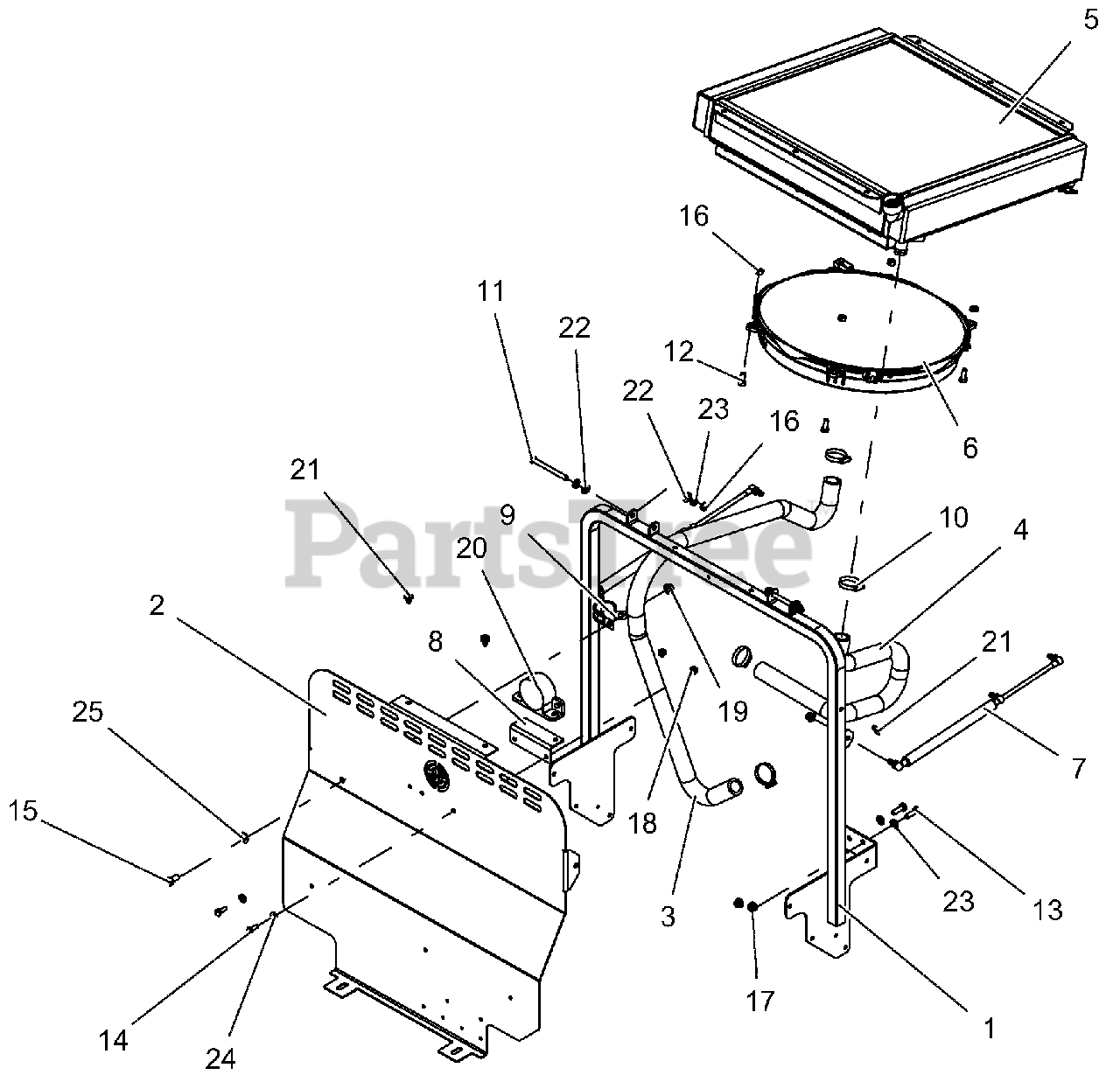

Radiator Parts Diagram

  • Title

1

Gravely 04437651

WLDMT, RADIATOR / EXP. TANK MOUNTK-BLAC
(Superseded to 04738351)

$435.99

$

Usually ships in 4-12 days

0

2

Gravely 04439051

GUARD, OPERATOR PT400 DIESEL

$131.99

$

Usually ships in 4-12 days

0

3

Gravely 04440500

HOSE, FORMED RADIATOR OUTLET

$145.99

$

Usually ships in 4-12 days

0

4

Gravely 04440600

HOSE, FORMED RADIATOR INLET

$90.99

$

Usually ships in 4-12 days

0

5

Gravely 04454300

RADIATOR, DIESEL PT-400

$1345.99

$

Usually ships in 4-12 days

0

6

Gravely 04500000

FAN, COOLING 16"

$680.99

$

Usually ships in 4-12 days

0

7

04508763

STRT, RADIATOR FRAME-YELLOW

$

$

Not available

8

Gravely 04513151

BRKT, SIGNAL MOUNT

$

$

Not available

9

Gravely 06900526

CLAMP, CUSHIONED STEEL5, 1.2

$18.99

$

Usually ships in 4-12 days

0

10

Gravely 06922200

CLAMP, HOSE 1.50 X .81 X 1.42

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 10

0

14

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

15

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

16

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 6

0

19

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 12

0

20

Gravely T833-394C

ALARM, BACKUP

$91.99

$

Usually ships in 4-12 days

0

21

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06433600

WSHR-FL-NYL .375X.75X.060

$0.99

$

In Stock, Qty 9

0

23

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

25

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
