992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 020000 - 029999) Engine Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

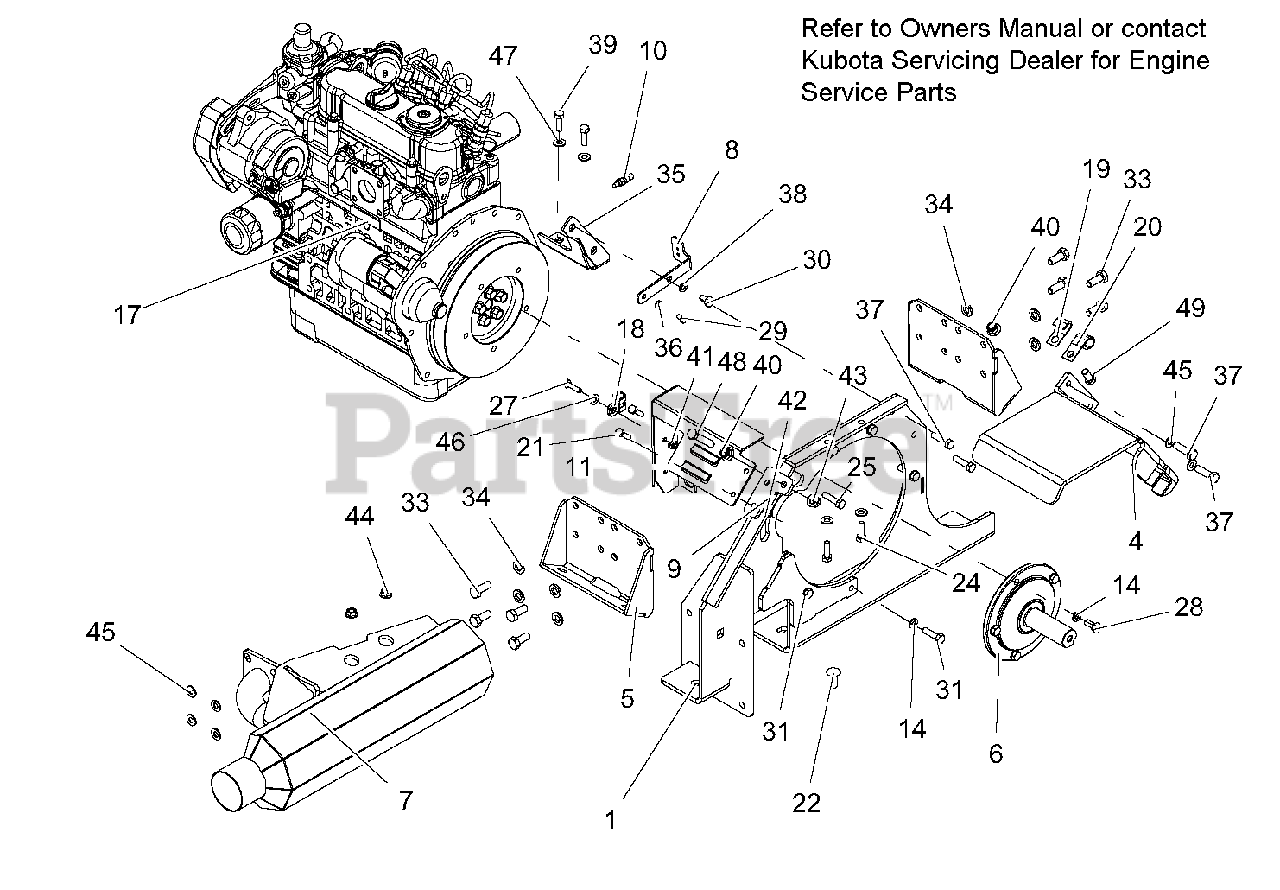

Engine Parts Diagram

  • Title

1

Gravely 04451751

WLDMT, ENGINE /GEARBOX MNT-BLACK

$297.99

$

In Stock, only 1 left!

0

4

Gravely 04536451

WLDMT, DIESEL CLUTCH STOP-BLACK
(Superseded to 04770751)

$193.99

$

Usually ships in 4-12 days

0

5

Gravely 04537851

WLDMT, FRONT ENGINE MOUNT

$129.99

$

Usually ships in 4-12 days

0

6

Gravely 04424500

SHAFT, STUB KUBOTA DIESEL MACHINED

$413.99

$

Usually ships in 4-12 days

0

7

Gravely 04424800

MFLR, DIESEL PT-400

$

$

Not available

8

Gravely 04438751

BRKT, THROTTLE CABLE

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 04508951

SPRG, ANCHOR

$

$

Not available

10

Gravely 04511100

SENDER, WATER TEMPERATURE

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 04537751

BRKT, HEAT DEFLECTOR LOUVERED

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 06318200

WSHR, LOCK M8 YWZC

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 08200732

KUBOTA_D902_E3B_WITHOUT_RADIATOR

$

$

Not available

18

Gravely 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 06909400

, J-CLAMP

$3.49

$

In Stock, Qty 11

0

20

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

22

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

24

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

25

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 2 left!

0

27

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

28

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 05900045

BLT-HEX M6 X 1.0X10 YWZC

$

$

Not available

30

Gravely 05970001

@BLT-HEX M8 X 1.25X14 YWZC
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 05968200

@BLT-HEX M8 X 1.25X30 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 05972800

BOLT, HEX M10-1.25 X 25 YWZC

$

$

Not available

34

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

35

Gravely 04656351

WLDMT, DIESEL FUEL FILTER MOUNT
(Superseded to 59220500)

$40.99

$

Usually ships in 4-12 days

0

36

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

37

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

38

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

40

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

42

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

43

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 16

0

44

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

45

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

46

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

47

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

48

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 2 left!

0

49

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0
