992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Chute And Belt Covers - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

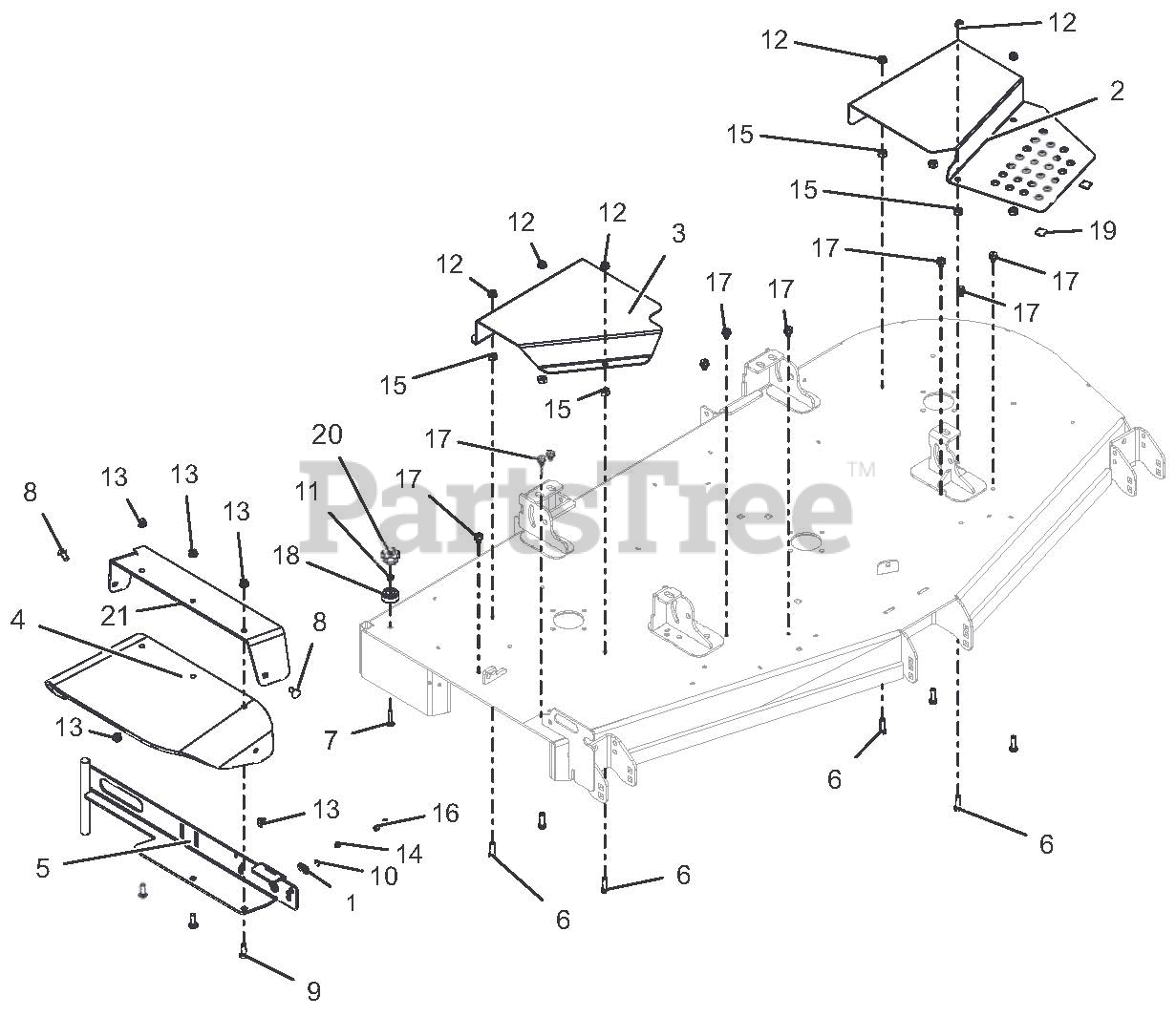

Chute And Belt Covers - 72" Parts Diagram

  • Title

1

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 04418553

GUARD-72" LH DECK BELT W/STEP

Note: RED

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 04437453

72" RH DECK BELT GUARD - RED

Note: RED

$66.99

$

Usually ships in 4-12 days

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 2 left!

0

5

Gravely 00980653

WMT, 66"-72" DISCH CHUTE MTG

$165.99

$

In Stock, only 1 left!

0

6

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

7

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

8

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

9

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

15

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 07001634

BLT-HEX.38-16X1.25 GR5 CAP .37

$

$

Not available

17

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 07525100

STOP

$2.49

$

In Stock, only 3 left!

0

20

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$7.99

$

In Stock, Qty 13

0

21

Gravely 59218500

DISCH CHUTE SUPPORT W/DECAL

Note: RED

$102.99

$

Usually ships in 4-12 days

0
