992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Control Panel Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

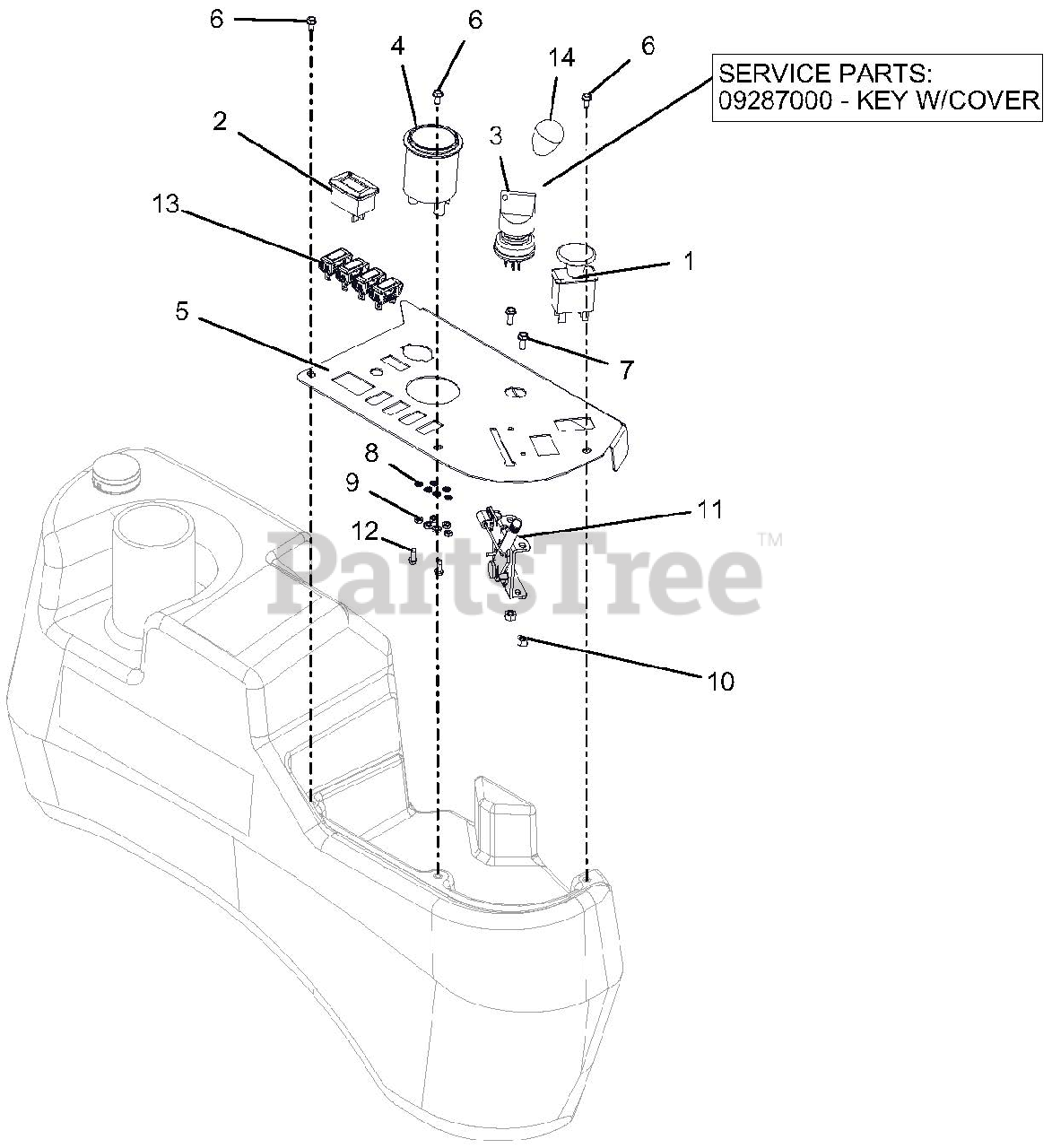

Control Panel Parts Diagram

  • Title

1

Gravely 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 19

0

2

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

3

Gravely 04331600

SWITCH, IGNITION

$42.99

$

In Stock, Qty 11

0

3

Gravely 09287000

KEY, W/ SHIELD

Note: SERVICE PART

$15.99

$

In Stock, Qty 20+

0

4

Gravely 04511200

GAUGE, TEMP

$285.99

$

Usually ships in 4-12 days

0

5

Gravely 04759951

DIESEL CONTROL PANEL - BLK

$

$

Not available

6

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 12

0

7

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06300113

WSHR-LK-EXT #6 STAR

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 06527800

NUT-HEX MACH #6-32

$

$

Not available

10

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

11

Gravely 06900431

CABLE-THROTTLE 47.37"

$59.99

$

Usually ships in 4-12 days

0

12

Gravely 07415600

@SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 5

0
