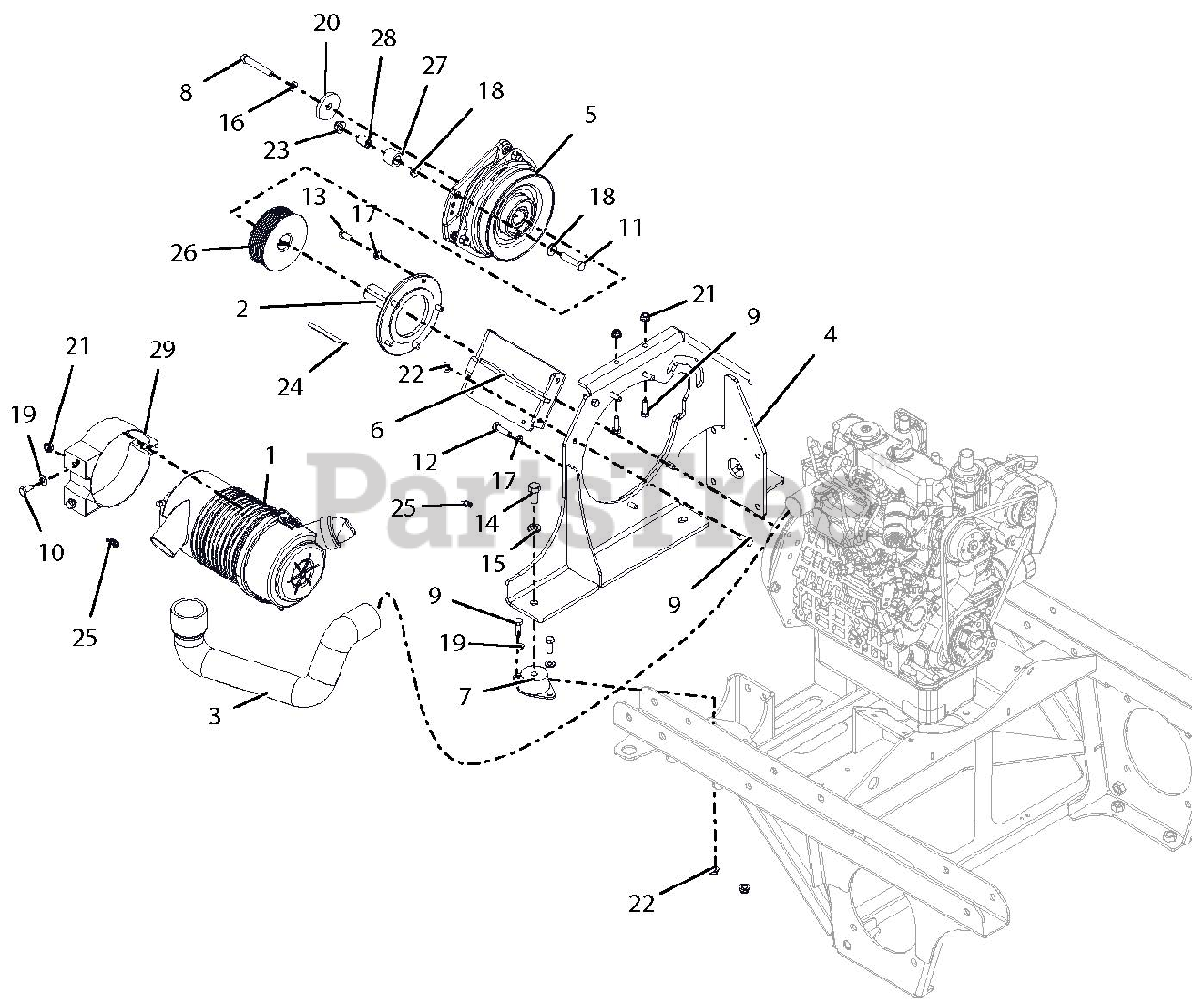

992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Engine Cont'd Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

Engine Cont'd Parts Diagram

  • Title

1

Gravely 03782600

CLEANER, AIR

$177.99

$

Usually ships in 4-12 days

0

2

Gravely 04424500

STUB SHAFT, KUBOTA DIESEL

$413.99

$

Usually ships in 4-12 days

0

3

Gravely 04440700

HOSE, AIR CLEANER OUTLET

$86.99

$

Usually ships in 4-12 days

0

4

Gravely 04451751

WDMT, DIESEL ENGINE MOUNT

Note: BLACK

$297.99

$

In Stock, only 1 left!

0

5

Gravely 04508400

CLUTCH, DIESEL REVERSE MOUNT

$646.99

$

Usually ships in 4-12 days

0

6

Gravely 04770751

WDMT, CLUTCH STOP-DIESEL

Note: (BLACK)

$193.99

$

Usually ships in 4-12 days

0

7

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 05901513

BLT-HEX .38-24X2.5 GR5 YZ EP80

$10.99

$

Usually ships in 4-12 days

0

9

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

10

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

11

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 05968200

@BLT-HEX M8 X 1.25X30 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

15

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

16

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

17

Gravely 06318200

WSHR-LK M8 YWZC

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

19

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

20

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

21

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

23

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

$4.99

$

In Stock, Qty 10

0

25

Gravely 06934700

CLAMP, HOSE #32 (1.56"-2.50")

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 07342500

SHEAVE, PVK 8-RIB 4.125 DIA.

$245.99

$

Usually ships in 4-12 days

0

27

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, Qty 8

0

28

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$13.99

$

In Stock, only 1 left!

0

29

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$87.99

$

In Stock, only 1 left!

0
