992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 040000 - 049999) Electrical Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

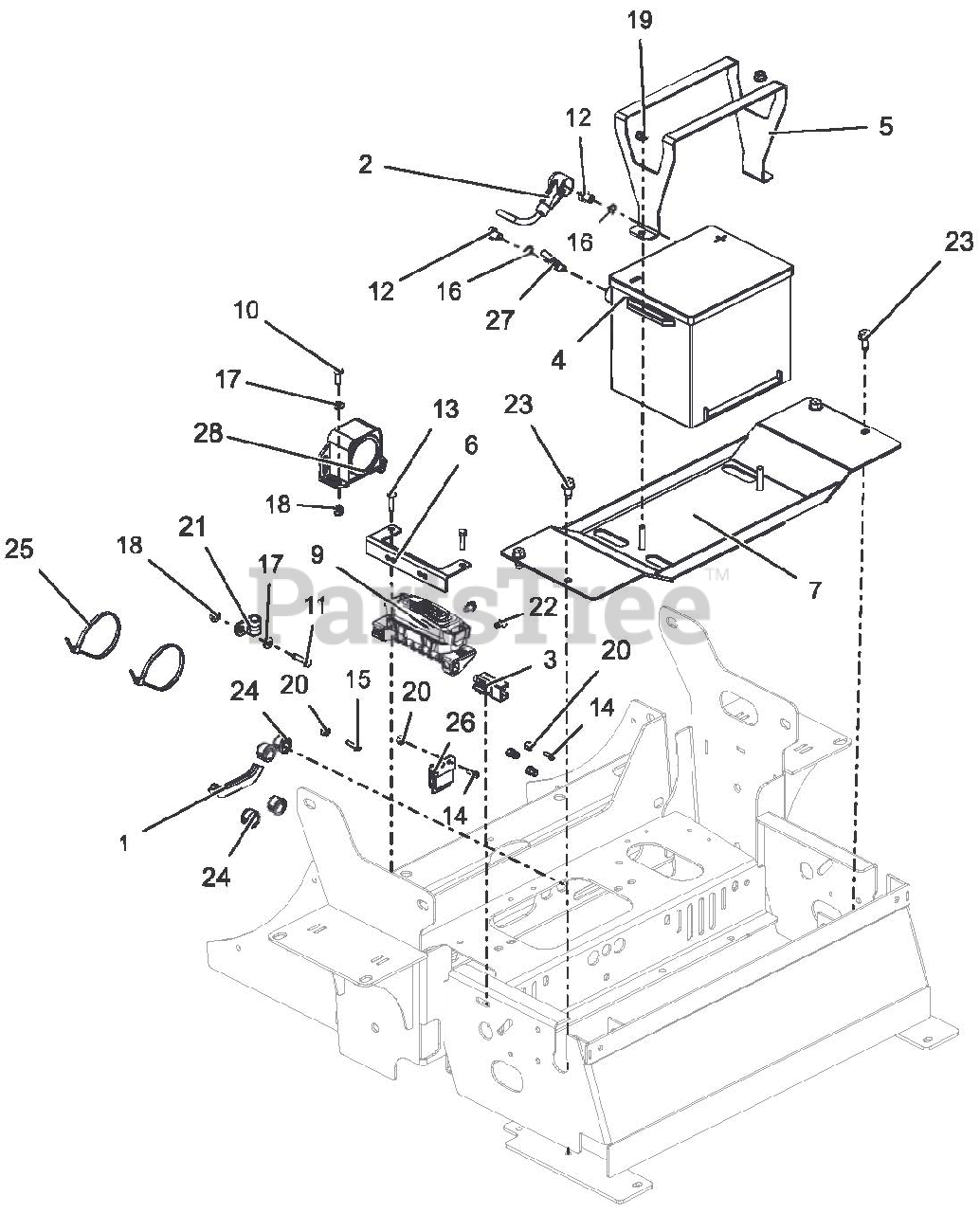

Electrical Parts Diagram

  • Title

1

Gravely 00918200

STRIP, COWL - 1.50 LG

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 03287000

CABLE, POS BATT W/ BOOTS 6 X 35

$32.99

$

Usually ships in 4-12 days

0

3

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O

$15.99

$

In Stock, only 1 left!

0

4

Gravely 04087300

BATTERY, GROUP 70, 540 CCA

$

$

Not available

5

Gravely 04089351

BRKT, BATTERY HOLD-DOWN

$73.99

$

Usually ships in 4-12 days

0

6

Gravely 04396353

BRKT, FUSE HOLDER MOUNTING

Note: RED

$

$

Not available

7

Gravely 04420653

WLDMT, PT400 DIESEL BATTERY TRAY

$

$

Not available

9

Gravely 04789300

HARNESS, PT400 DIESEL WIRE

$398.99

$

Usually ships in 4-12 days

0

10

Gravely 05946800

BLT-HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

11

Gravely 05947700

BLT-HEX .25-20 X 1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

12

Gravely 05967000

BLT-HEX .38-16 X .50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05972000

@BLT-HEX M6-1.0 X 25 YWZC

$

$

Not available

14

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

16

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 06437300

WSHR-FL-STL .281 X .62 X .065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 6

0

19

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07415400

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 07500126

BUSH, PANEL SNAP .687 X .875 X .56

$3.99

$

In Stock, only 2 left!

0

25

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

26

Gravely 09044200

NODULE, INTERLOCK

$73.99

$

Usually ships in 4-12 days

0

27

Gravely 09278100

CABLE, NEGATIVE BATTERY .385 X 49.00

$38.99

$

Usually ships in 4-12 days

0

28

Gravely T833-394C

ALARM, BACKUP

$91.99

$

Usually ships in 4-12 days

0
