992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 040000 - 049999) Engine Cont'd Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

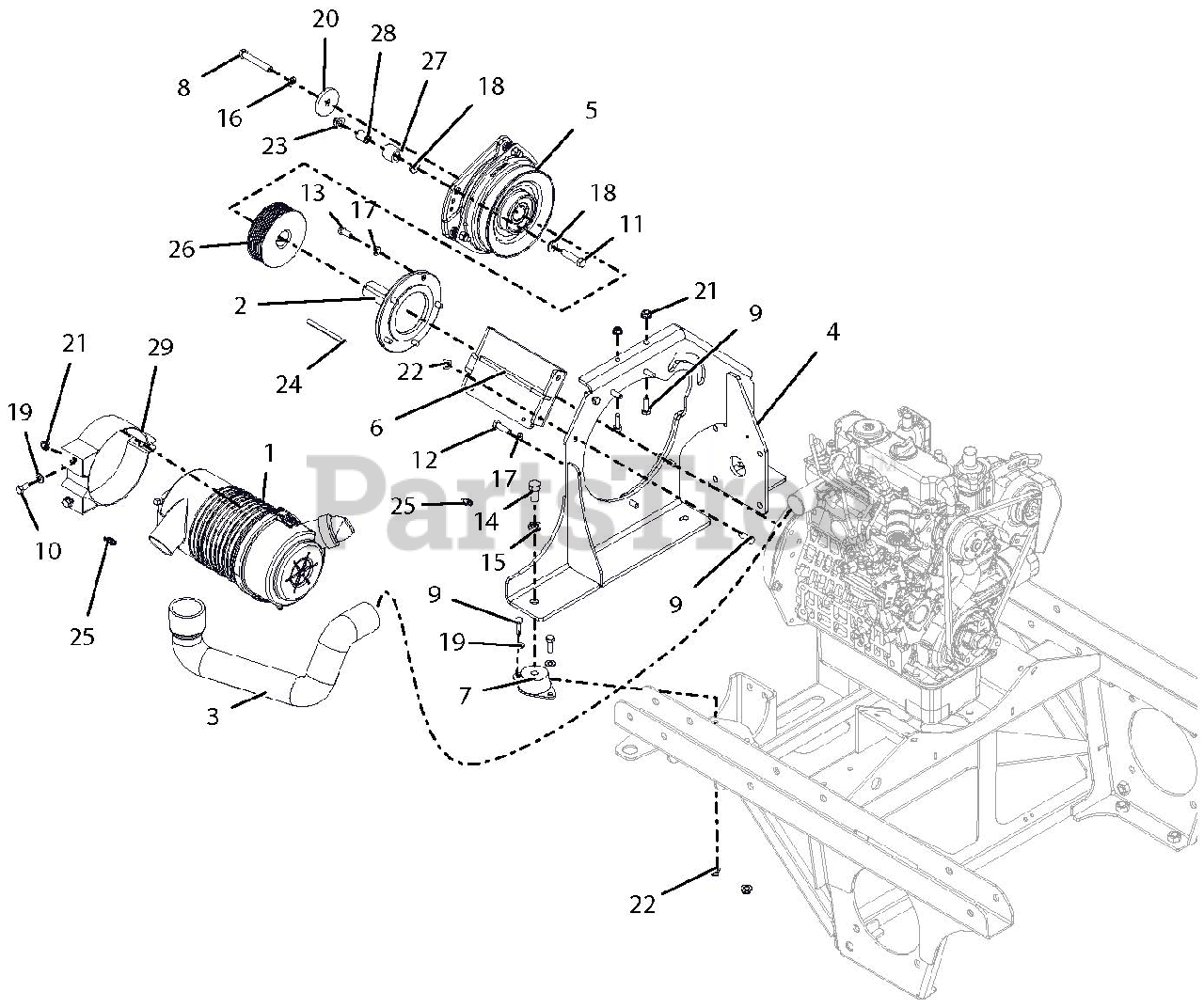

Engine Cont'd Parts Diagram

  • Title

1

Gravely 03782600

AIR, CLEANER

$181.99

$

Usually ships in 4-12 days

0

2

Gravely 04424500

SHAFT, STUB KUBOTA DIESEL MACHINED

$455.99

$

Usually ships in 4-12 days

0

3

Gravely 04440700

HOSE, FORMED AIR CLEANER OUTLET

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 04451751

WLDMT, ENGINE /GEARBOX MNT

Note: BLACK

$303.99

$

In Stock, only 1 left!

0

5

Gravely 04508400

CLUTCH, DIESEL REVERSE MOUNT

$685.99

$

Usually ships in 4-12 days

0

6

Gravely 04770751

WLDMT, CLUTCH STOP

Note: (BLACK)

$197.99

$

Usually ships in 4-12 days

0

7

Gravely 05034800

MOUNT, ENGINE. VIBRATION ISO

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 05901513

BOLT, HEX 3/8-24 x 2.50 GR5 YZ EP80

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

12

Gravely 05968200

@BLT-HEX M8 X 1.25X30 GR5 YWZC

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

16

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

17

Gravely 06318200

WSHR, LOCK M8 YWZC

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

21

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06600003

KEY-SQ .250X.250X3.50

$5.49

$

In Stock, only 3 left!

0

25

Gravely 06934700

CLAMP, HOSE #32 1.56"-2.50"

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 07342500

SHEAVE, POLY -V 4.125 X 4.650

$250.99

$

Usually ships in 4-12 days

0

27

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$6.49

$

In Stock, Qty 9

0

28

Gravely 08905500

BUSHING, SLV .407X.625X.813

$14.99

$

In Stock, only 2 left!

0

29

Gravely 09257600

BRKT, AIR CLEANER MOUNT

$89.99

$

Usually ships in 4-12 days

0
