992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 030000 - 039999) Clutch And Belt, Drive - Idler Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

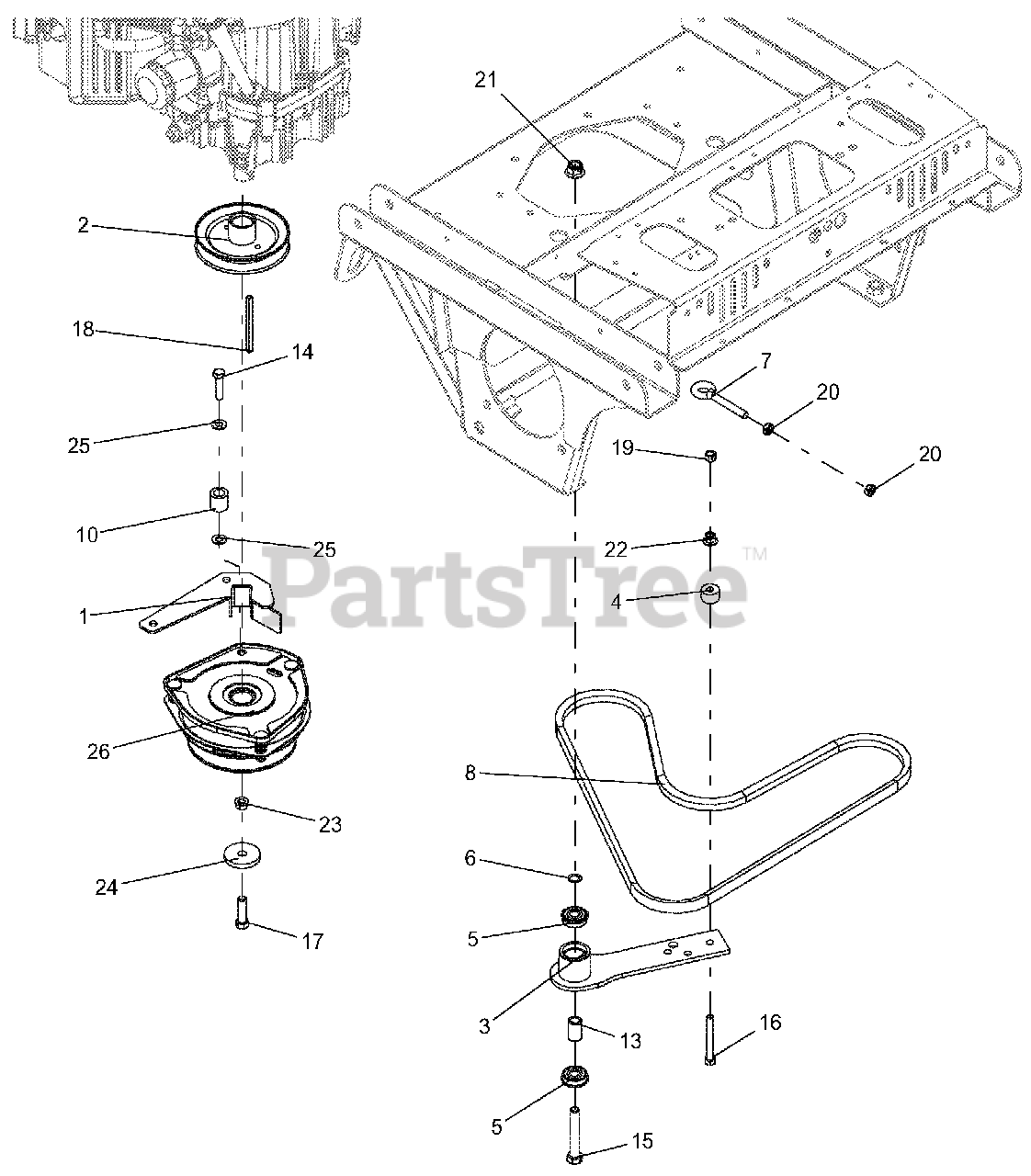

Clutch And Belt, Drive - Idler Parts Diagram

  • Title

1

Gravely 03908851

WMT, CLUTCH STOP

$52.99

$

In Stock, only 3 left!

0

2

Gravely 07340967

SHEAVE-ENGINE 1.127ID X 5.25OD
(Superseded to 07340900)

$84.99

$

In Stock, Qty 5

0

3

Gravely 09357351

HYDRO DRIVE IDLER ARM WMT- BLK
(Superseded to 09357300)

$54.99

$

In Stock, only 2 left!

0

4

Gravely 03035100

SPACER .390X1.000X.562

$9.99

$

In Stock, Qty 20+

0

5

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$15.99

$

In Stock, Qty 20+

0

6

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 6

0

8

Gravely 07200515

V-BELT, COGGED B-RAW EDGE

$59.99

$

In Stock, Qty 20+

0

10

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 1 left!

0

13

Gravely 09357700

SPACER .510 X .75 X 1.1485

$5.49

$

In Stock, Qty 20+

0

14

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

15

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

16

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

18

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

$5.49

$

In Stock, Qty 10

0

19

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

25

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

$512.99

$

In Stock, only 2 left!

0
