992246 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 041000 & Above) Deck Idlers - 52 Inch Parts Diagram

Pro-Turn 52" Zero-Turn Mower

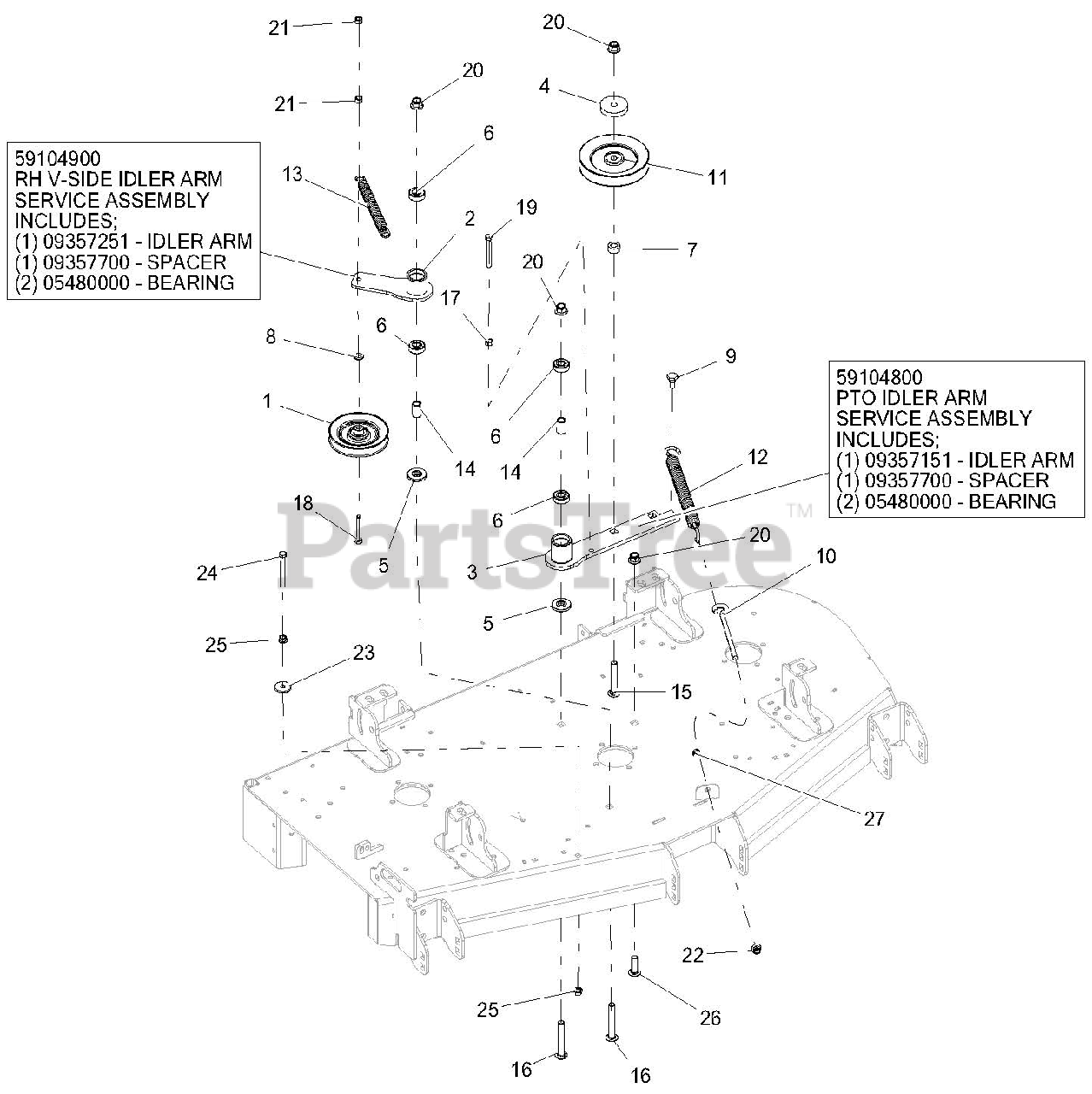

Deck Idlers - 52 Inch Parts Diagram

  • Title

1

Gravely 07340100

IDLER, V-5.00" W/.69 STANDOFF
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

2

Gravely 09357251

WLDMT, DECK RH IDLER ARM-BLACK
(Superseded to 59104900)

$67.99

$

In Stock, only 4 left!

0

2

Gravely 59104900

RH V-SIDE IDLER ARM SERVICE ASSEMBLY

Note: SERVICE ASSEMBLY

$67.99

$

In Stock, only 4 left!

0

2

Gravely 09357251

IDLER ARM
(Superseded to 59104900)

Note: INCLUDED IN THE SERVICE ASSEMBLY

$67.99

$

In Stock, only 4 left!

0

2

Gravely 09357700

SPACER

Note: INCLUDED IN THE SERVICE ASSEMBLY

$5.49

$

In Stock, Qty 20+

0

2

Gravely 05480000

BEARING

Note: INCLUDED IN THE SERVICE ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

3

Gravely 09357151

WLDMT, DECK PTO IDLER ARM-BLACK
(Superseded to 59219200)

$128.99

$

Usually ships in 4-12 days

0

3

Gravely 59104800

PTO IDLER ARM SERVICE ASSEMBLY

Note: SERVICE ASSEMBLY

$98.99

$

Usually ships in 4-12 days

0

3

Gravely 09357151

IDLER ARM
(Superseded to 59219200)

Note: INCLUDED IN THE SERVICE ASSEMBLY

$128.99

$

Usually ships in 4-12 days

0

3

Gravely 09357700

SPACER

Note: INCLUDED IN THE SERVICE ASSEMBLY

$5.49

$

In Stock, Qty 20+

0

3

Gravely 05480000

BEARING

Note: INCLUDED IN THE SERVICE ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 9

0

5

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 17

0

6

Gravely 05408000

BRG-BALL .500X1.375X.44

$6.99

$

In Stock, Qty 20+

0

7

Gravely 05500905

BSHG, SPCR .502 X .997.50 PM

$11.99

$

In Stock, Qty 13

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 10

0

10

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$7.49

$

In Stock, Qty 20+

0

11

Gravely 07300527

SHEAVE, .50" ID X 6.00" OD V-IDLER

$54.99

$

In Stock, Qty 20+

0

12

Gravely 08300505

SPRG, EXTENSION

$27.99

$

In Stock, Qty 20+

0

13

Gravely 08300626

SPRG, EXTENSION .120X.845X6.55 WLD
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

14

Gravely 09357700

SPACER, .510 X .750 X 1.148

$5.49

$

In Stock, Qty 20+

0

15

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5Y

$6.49

$

In Stock, Qty 8

0

16

Gravely 06200216

BLT-RDHDSQSHNK .50-13X3.25 YWZC
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 8

0

24

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

25

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06200006

BLT-RDHDSQSHNK .50-13X1.50 YWZC

$6.49

$

In Stock, Qty 10

0

27

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0
