992248 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, EFI (SN: 041000 & Above) Fuel System - EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, EFI

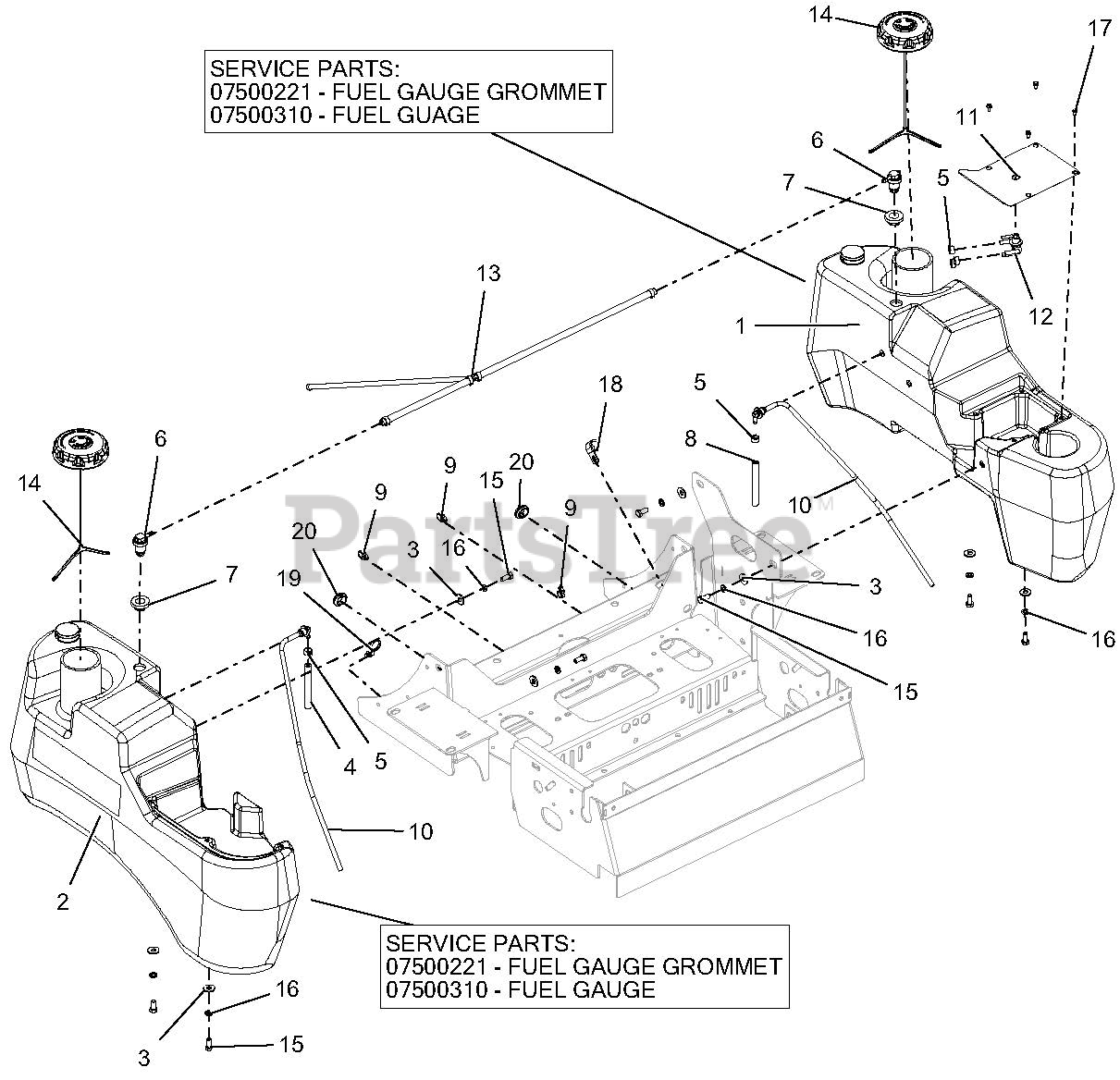

Fuel System - EFI Parts Diagram

  • Title

1

Gravely 04722500

ASSY-LH LARGE FUEL TANK W/MECH GAUGE-GAS

$368.99

$

Usually ships in 4-12 days

0

1

Gravely 07500221

FUEL GAUGE GROMMET

Note: SERVICE PART

$6.49

$

In Stock, Qty 16

0

1

Gravely 07500310

FUEL GAUGE
(Superseded to 07500601)

Note: SERVICE PART

$40.99

$

Usually ships in 4-12 days

0

2

Gravely 04722600

ASSY-RH LARGE FUEL TANK W/MECH GAUGE-GAS

$367.99

$

Usually ships in 4-12 days

0

2

Gravely 07500221

FUEL GAUGE GROMMET

Note: SERVICE PART

$6.49

$

In Stock, Qty 16

0

2

Gravely 07500310

FUEL GAUGE
(Superseded to 07500601)

Note: SERVICE PART

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03278100

.25 LOW-PERM GAS HOSE 54.00" LG - RH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 6

0

7

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

8

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.00" LG - LH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00367900

CLIP, ROUTING (.50 ID)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 04320800

ASM, LARGE TANK FUEL PICKUP

$35.99

$

In Stock, Qty 14

0

11

Gravely 04396053

PLATE, FUEL VALVE MOUNTING-RED

$32.99

$

Usually ships in 4-12 days

0

12

Gravely 04426400

VALVE, FUEL
(Superseded to 09389900)

$46.99

$

In Stock, Qty 6

0

13

Gravely 04853700

PT400, FUEL LINE ASSEMBLY

$44.99

$

Usually ships in 4-12 days

0

14

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$35.99

$

In Stock, Qty 20+

0

15

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

18

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$6.49

$

In Stock, only 2 left!

0

19

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07500031

GROMMET, RUBBER

$3.99

$

Usually ships in 4-12 days

0
