992252 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 041000 & Above) Engine - Kohler ZT740 Confidant Parts Diagram

Pro-Turn 60" Zero-Turn Mower

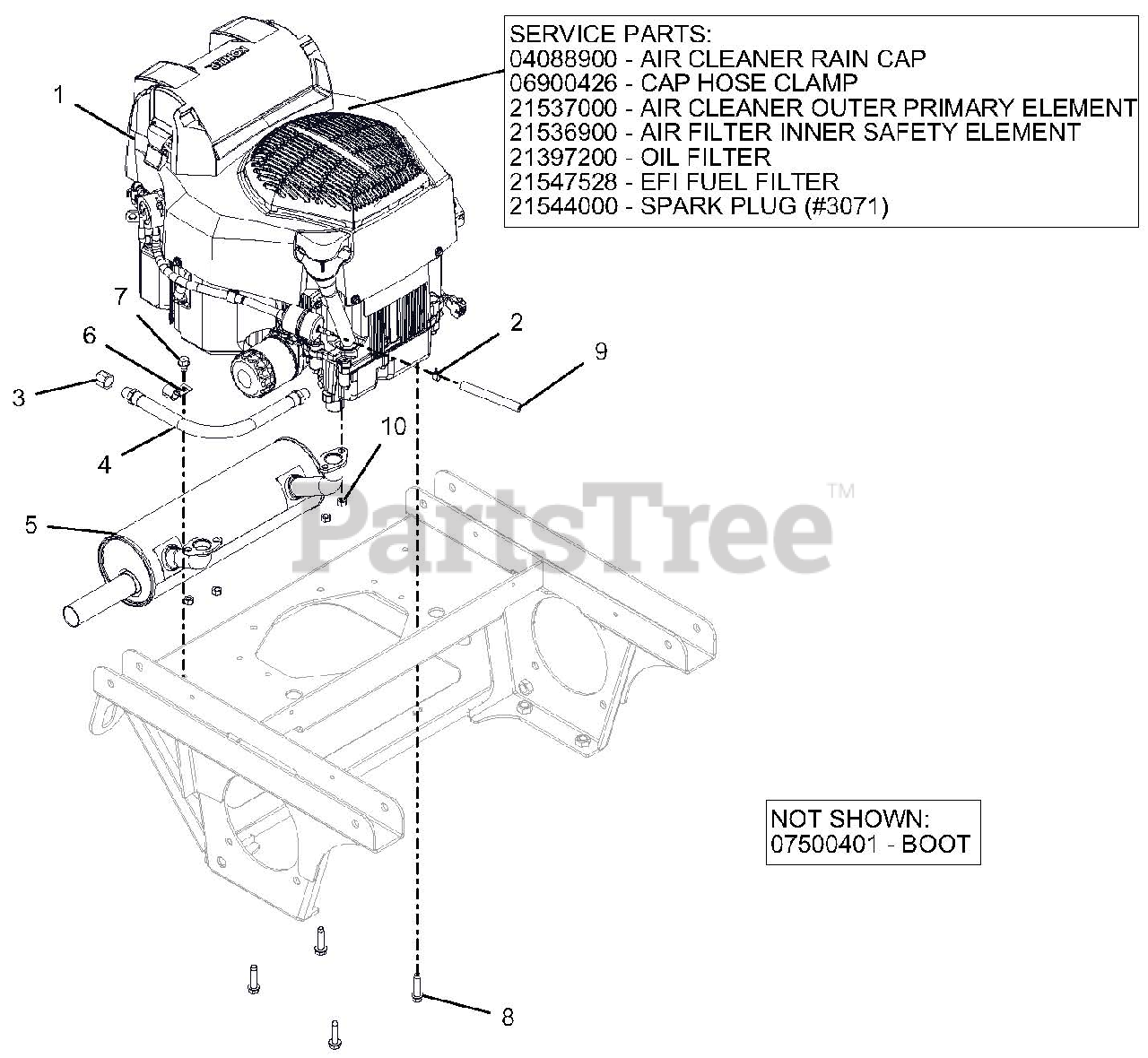

Engine - Kohler ZT740 Confidant Parts Diagram

  • Title

1

Gravely 08201030

ENGINE, KOHLER ZT740 CONFIDANT

Note: SERVICE PART

$

$

Not available

1

Gravely 04088900

AIR CLEANER RAIN CAP

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

1

Gravely 06900426

CAP HOSE CLAMP

Note: SERVICE PART

$3.49

$

Usually ships in 4-12 days

0

1

Gravely 21537000

AIR CLEANER OUTER PRIMARY ELEMENT

Note: SERVICE PART

$28.99

$

In Stock, Qty 20+

0

1

Gravely 21536900

AIR FILTER INNER SAFETY ELEMENT

Note: SERVICE PART

$28.99

$

In Stock, only 2 left!

0

1

Gravely 21397200

OIL FILTER
(Superseded to 20715100)

Note: SERVICE PART

$17.99

$

Usually ships in 4-12 days

0

1

Gravely 21547528

EFI FUEL FILTER

Note: SERVICE PART

$14.99

$

In Stock, only 4 left!

0

1

Gravely 21544000

SPARK PLUG

Note: (#3071) SERVICE PART

$3.49

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

3

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

5

Gravely 04786100

MUFFLER, KOHLER CONFIDANT

$169.99

$

Usually ships in 4-12 days

0

6

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 03278100

.25 LOW-PERM GAS HOSE 42.00" LG - VALVE TO ENGINE

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

11

Gravely 07500401

BOOT

Note: NOT SHOWN

$3.49

$

Usually ships in 4-12 days

0
