992255 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower (SN: 040000 - 040999) Seat Latch Assembly Parts Diagram

Pro-Turn 72" Zero-Turn Mower

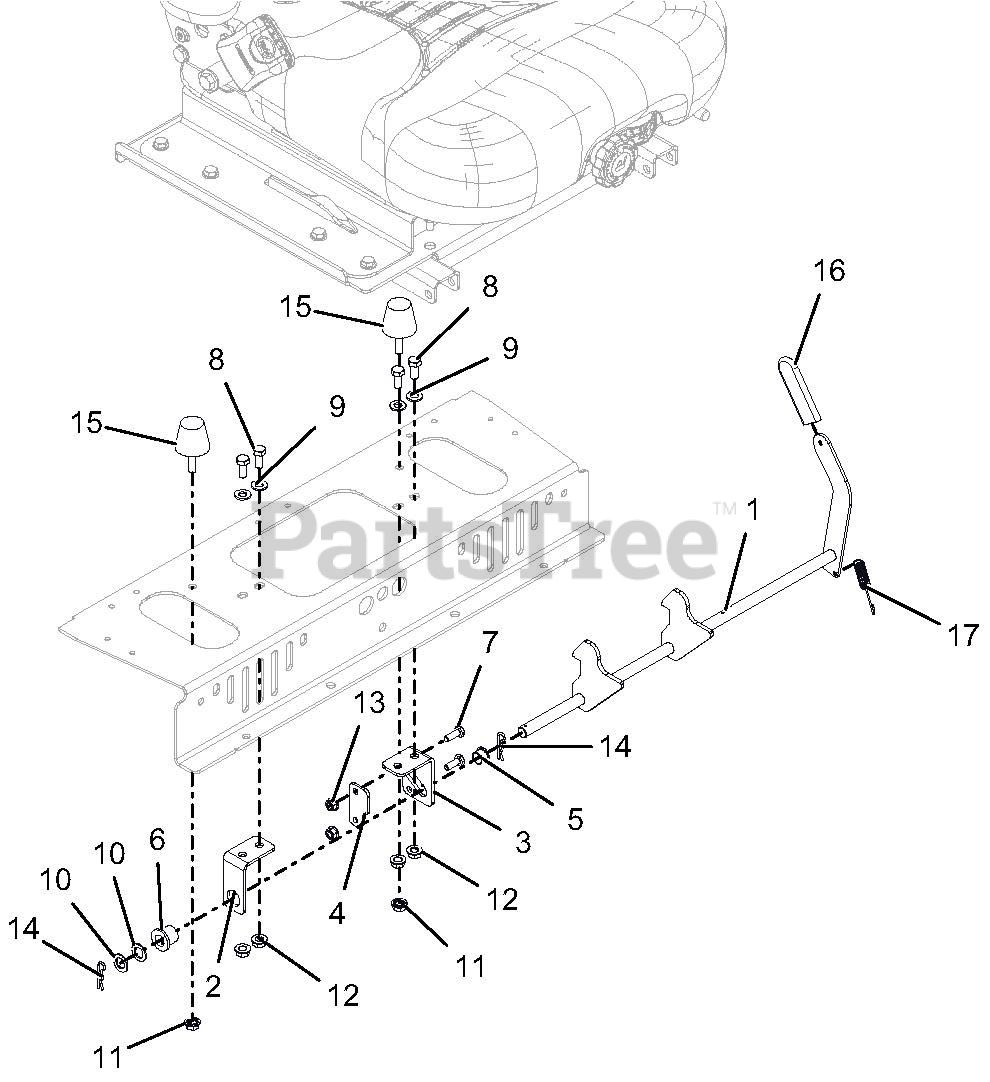

Seat Latch Assembly Parts Diagram

  • Title

1

Gravely 03991651

WMT, SEAT LATCH

$92.99

$

Usually ships in 4-12 days

0

2

Gravely 03991751

MOUNT, SEAT LATCH - RH

$

$

Not available

3

Gravely 03991851

MOUNT, SEAT LATCH - LH

$

$

Not available

4

Gravely 03991951

RETAINER-SEAT LATCH

$

$

Not available

5

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 14

0

6

Gravely 05521100

BSHG, FLANGE .515 X .750 X .745 X 1.00 NYLON

$2.99

$

In Stock, Qty 18

0

7

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

8

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06441100

WSHR-FL-STL .520X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

14

Gravely 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

15

Gravely 07500218

BUMPER, STUD MOUNTED CONE SHAPED

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 07539700

GRIP-VINYL-YELLOW .125 x 1.0 x 3.0

$

$

Not available

17

Gravely 08321100

SPRG, EXTENSION

$6.49

$

In Stock, Qty 20+

0
