992257 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, EFI (SN: 041000 & Above) Engine - Kohler EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, EFI

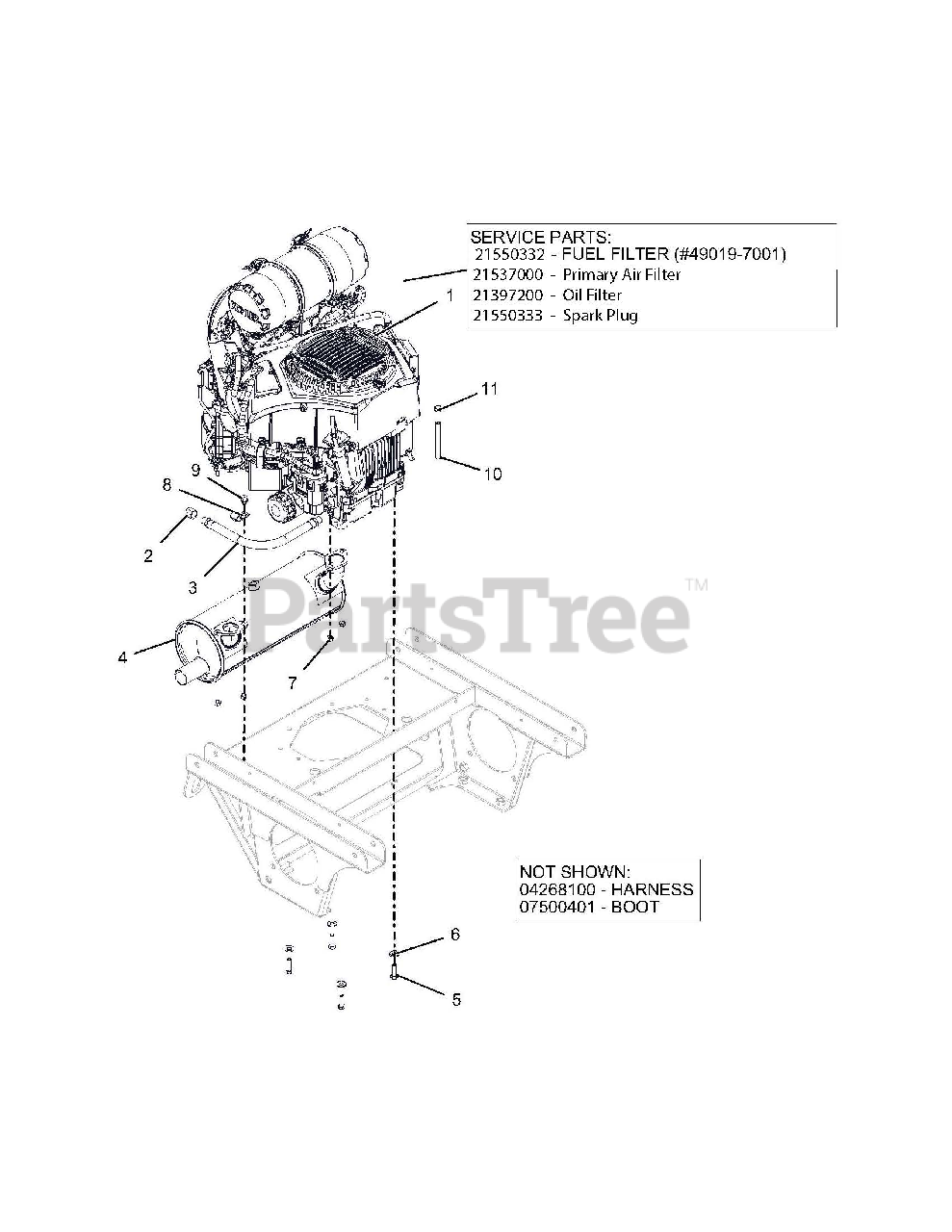

Engine - Kohler EFI Parts Diagram

  • Title

1

Gravely 08201033

ENGINE, KOHLER EFI

$

$

Not available

1

Gravely 21550332

FUEL FILTER - #49019-7001
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

1

Gravely 21537000

PARIMARY AIR FILTER

Note: SERVICE PART

$28.99

$

In Stock, Qty 20+

0

1

Gravely 21397200

OIL FILTER
(Superseded to 20715100)

Note: SERVICE PART

$21.99

$

In Stock, Qty 20+

0

1

Gravely 21550333

SPARK PLUG
(Superseded to 21563600)

Note: SERVICE PART

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 04786000

MUFFLER, KOHLER EFI

$234.99

$

Usually ships in 4-12 days

0

5

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

8

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0

10

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.0" LG - VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04268100

HARNESS
(Superseded to 05162200)

Note: NOT SHOWN

$92.99

$

Usually ships in 4-12 days

0

13

Gravely 07500401

BOOT

Note: NOT SHOWN

$3.99

$

Usually ships in 4-12 days

0
