992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 050000 - 050999) Deck, Belt, Blades And Spindles - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

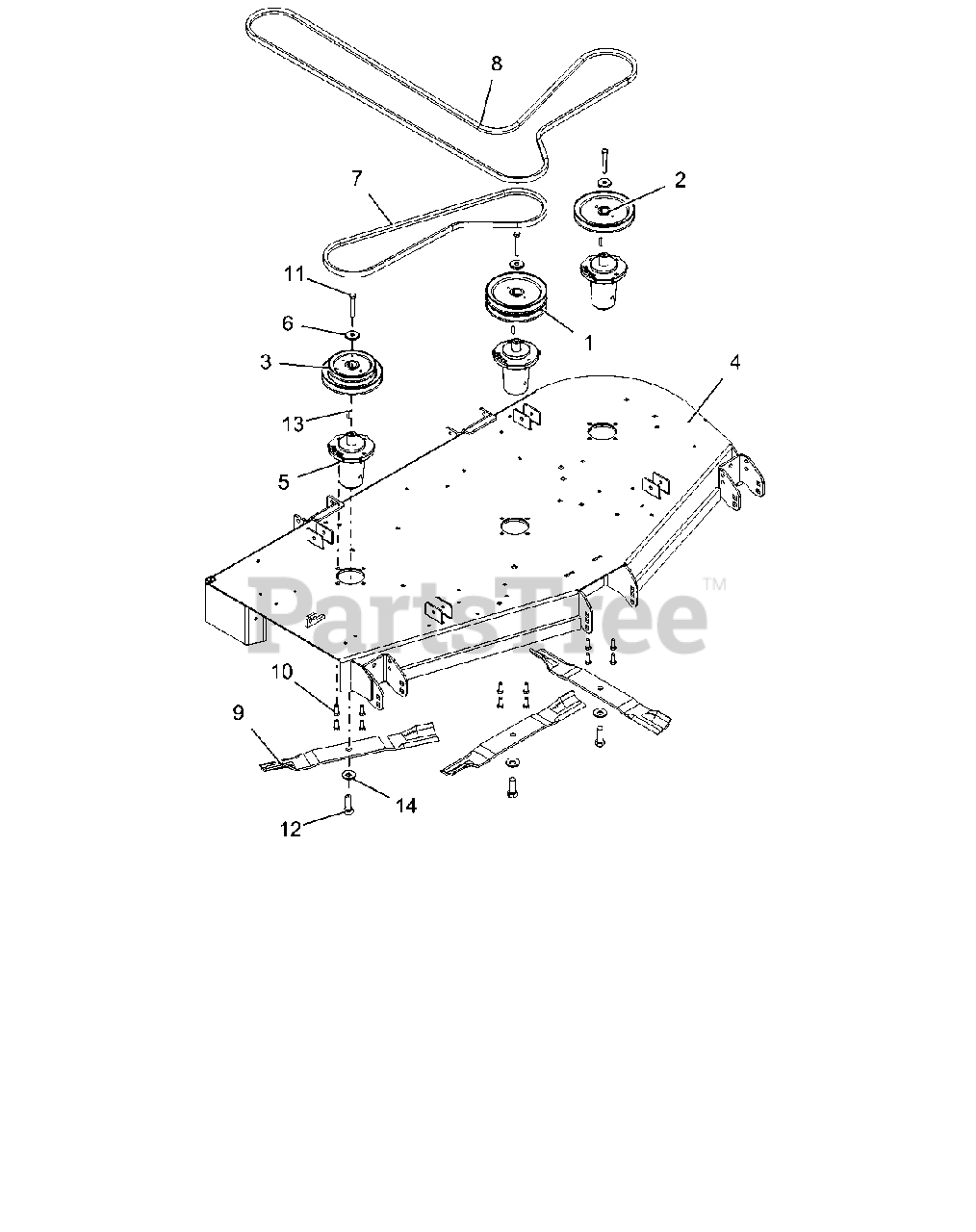

Deck, Belt, Blades And Spindles - 60" Parts Diagram

  • Title

1

Gravely 07328867

PULLEY, DOUBLE 1"ID X 6.75"OD-BLACK
(Superseded to 59211500)

$85.99

$

In Stock, Qty 13

0

2

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD-BLACK
(Superseded to 59211600)

$78.99

$

In Stock, only 1 left!

0

3

Gravely 07340400

PULLEY, DOUBLE -1" ID X 6.75" & 5.25" OD

$64.99

$

In Stock, Qty 13

0

4

Gravely 59223900

WLDMT, 60" SIDE DISCH DECK

$1150.99

$

Usually ships in 4-12 days

0

5

Gravely 59225700

ASM, SPINDLE - G3500
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 14

0

7

Gravely 07200038

BELT, B 63.00 RAW COGGED

$66.99

$

In Stock, Qty 14

0

8

Gravely 07234600

V-BELT, HB WRAPPED

$125.99

$

In Stock, Qty 13

0

9

Gravely 09081200

BLADE, MOWER 60"

$29.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

11

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 16

0

12

Gravely 05978900

BLT-HEX .625-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 11

0

14

Gravely 06445700

WSHR, BLVL-.63X1.625X.14

$4.99

$

In Stock, Qty 20+

0
