992267 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 051000 - 059999) Bumper Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

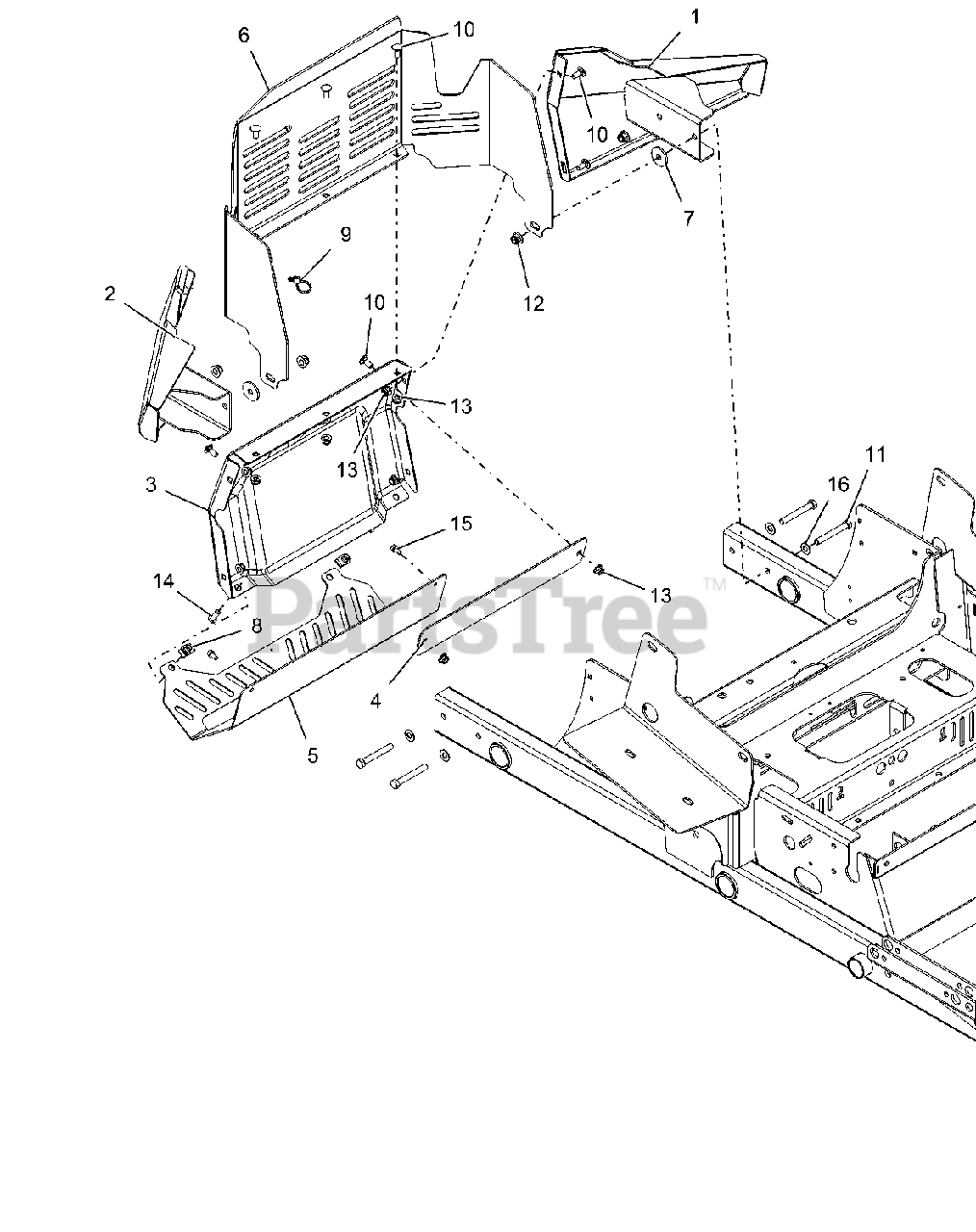

Bumper Parts Diagram

  • Title

1

Gravely 04868751

LEFT REAR BUMPER WING WMT-BLK

$

$

Not available

2

Gravely 04892251

RIGHT REAR BUMPER WING WMT-BLK

$

$

Not available

3

Gravely 04863451

PT200/400 REAR BUMPER - BLACK

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 04894853

BACKER PLATE - RED

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 04895351

PT200/400 MUFFLER GUARD - BLK

$105.99

$

Usually ships in 4-12 days

0

6

Gravely 04962553

PT200 ENGINE GUARD - RED

$145.99

$

Usually ships in 4-12 days

0

7

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 8

0

8

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$2.99

$

In Stock, Qty 20+

0

9

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05901508

SCR-SKH .31-18X1.0 BTNHD YWZC
(Superseded to 05901840)

$2.99

$

In Stock, Qty 17

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
